Cosman G4 - Additional Example Screens

Cosman G4 Radiofrequency Generator Service Manual (SPI 11291 Rev A)

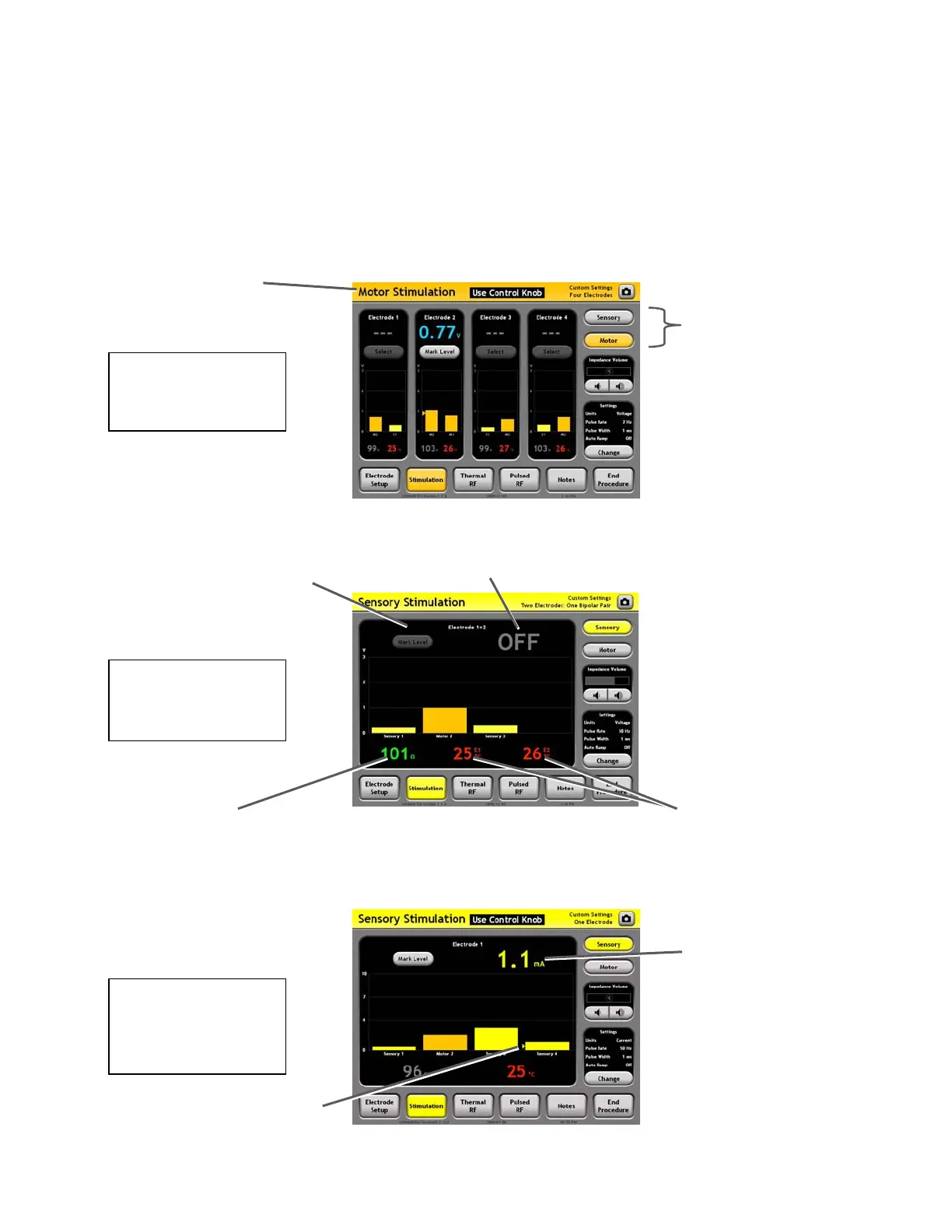

8.1.1 Additional Example Screens
The Graphing Stimulation screen will appear differently depending on the current settings:
• Electrode Setup settings (see Section 7.1)
• Stimulation Mode: Sensory or Motor
• Control Units setting: Voltage- or Current-controlled output (see Section 8.1.2)
Sensory
Stimulation Mode
One Electrode &
Units= Current
Marked Level
Sensory
Stimulation Mode
One Bipolar Pair
Electrode Panel (Black area):
Displays all readings for the
indicated bipolar electrode pair,
e.g. “Electrode 1+2”.
Temperature Readings:
One Temperature reading
from each electrode in
bipolar pair. For instance,
“E1” indicates a reading
from Electrode 1.
Bipolar readings:
Voltage/Current and Impedance
between the two electrodes in
the bi
p
olar
p
ai
r
Output Off
Indicator
Motor Mode
Indicator
Motor Stimulation
Mode
Four Electrodes
Mode: Select Sensory
or Motor Stimulation
output
Output Level Reading:
Shown here in units of
Current (mA). This is
determined by the
Control Units = Current.
Section 8
