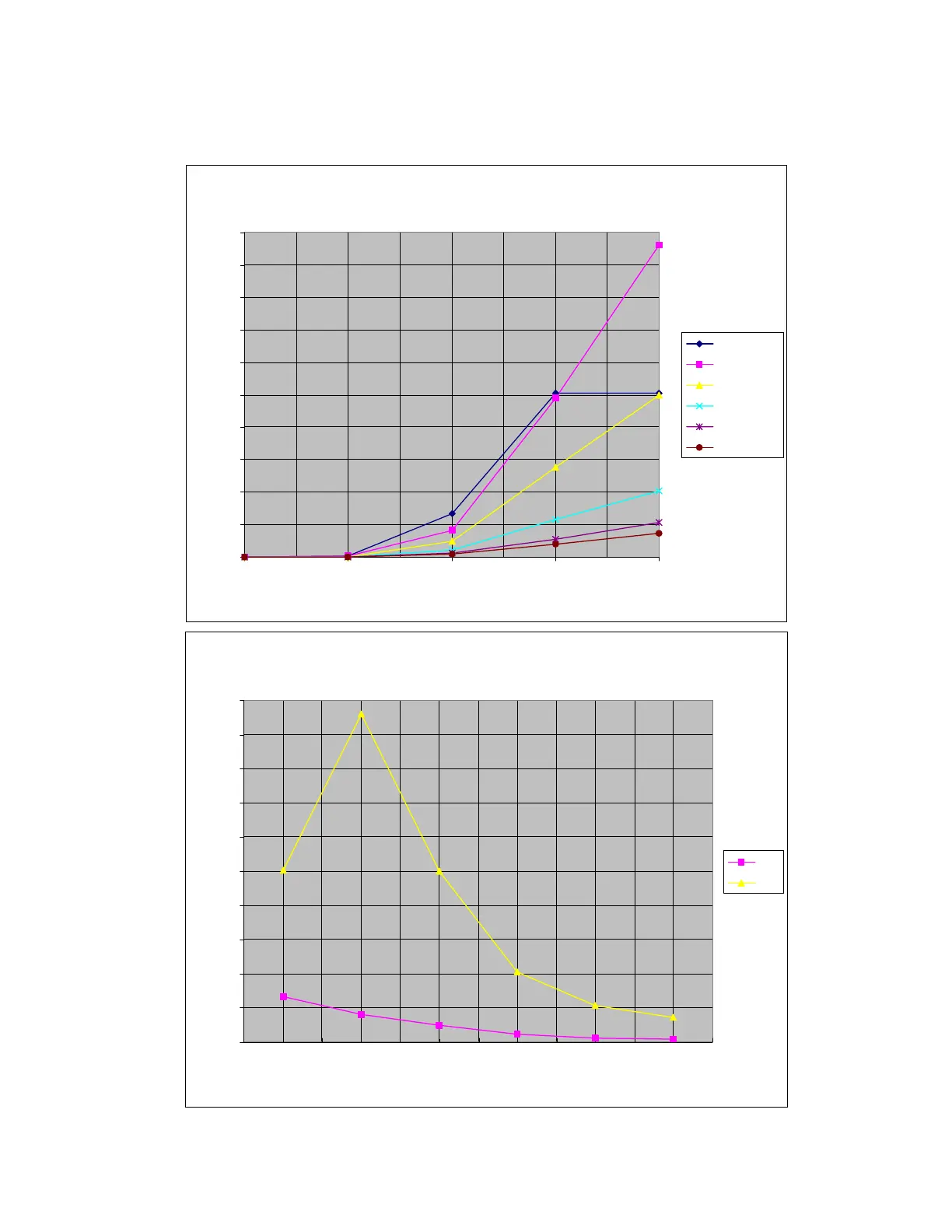

13. Output Power Curves
Output Power ver Knob Setting
0
5
10
15
20
25
30
35
40
45
50
0255075100
Knob Setting
Watts
50 ohms
100 ohms
200 ohms
500 ohms
1000 ohms
1500 ohms
Output Power ver Resistance
0
5
10
15
20
25
30
35
40
45
50
50 100 200 500 1000 1500
Re sista nce
Watts
Half
Full
