Installation manual J5060403 v1.2
CONTROLLER INSTALATION
INSTALLATION MANUAL
Install the controller in dry room, where it is not directly exposed to strong electromagne-
tic fields. Press the controller directly onto the mixing valve. Disassembling or opening
of the controller is not needed and not allowed.
INSTALLATION ONTO MIXING VALVE

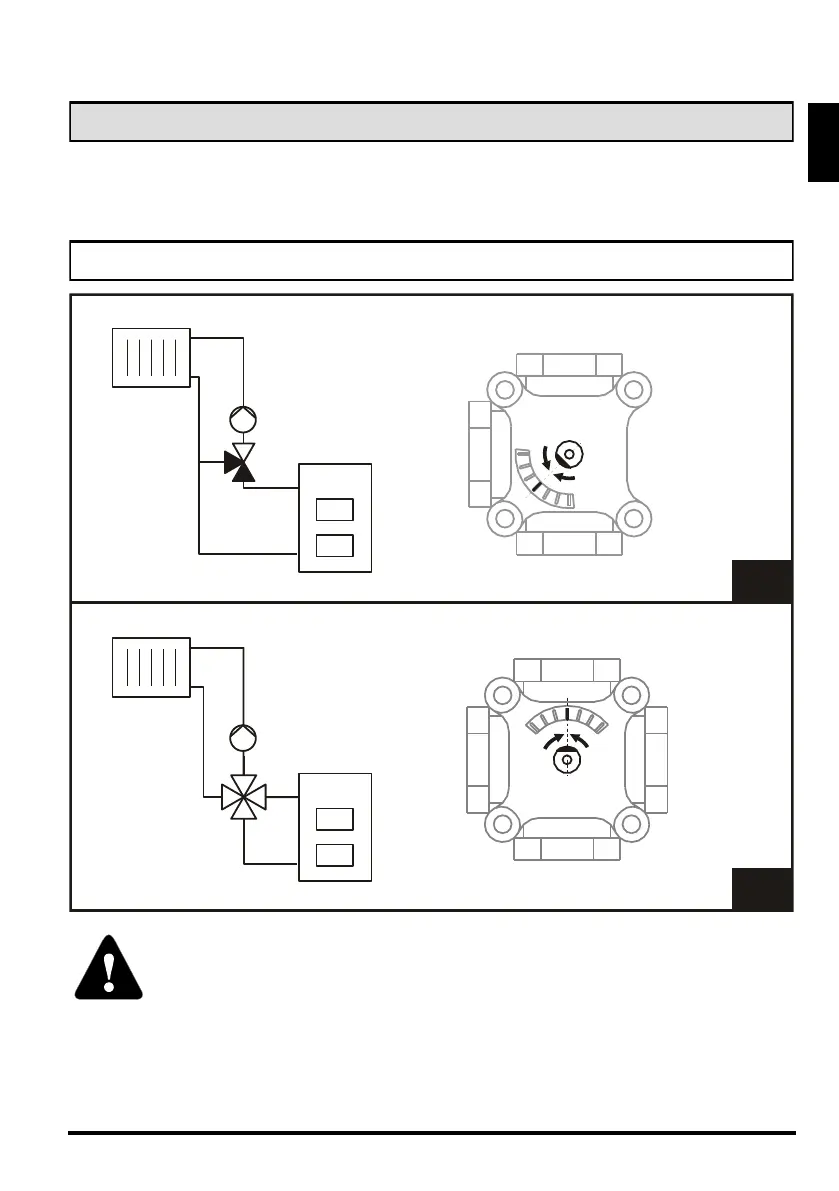

Example of installation onto 3 way mixing valve.
Example of installation onto 4 way mixing valve.
The mixing valve needs to be turned in the middle position.
