20 INSTALLATION INSTALLATION MANUAL

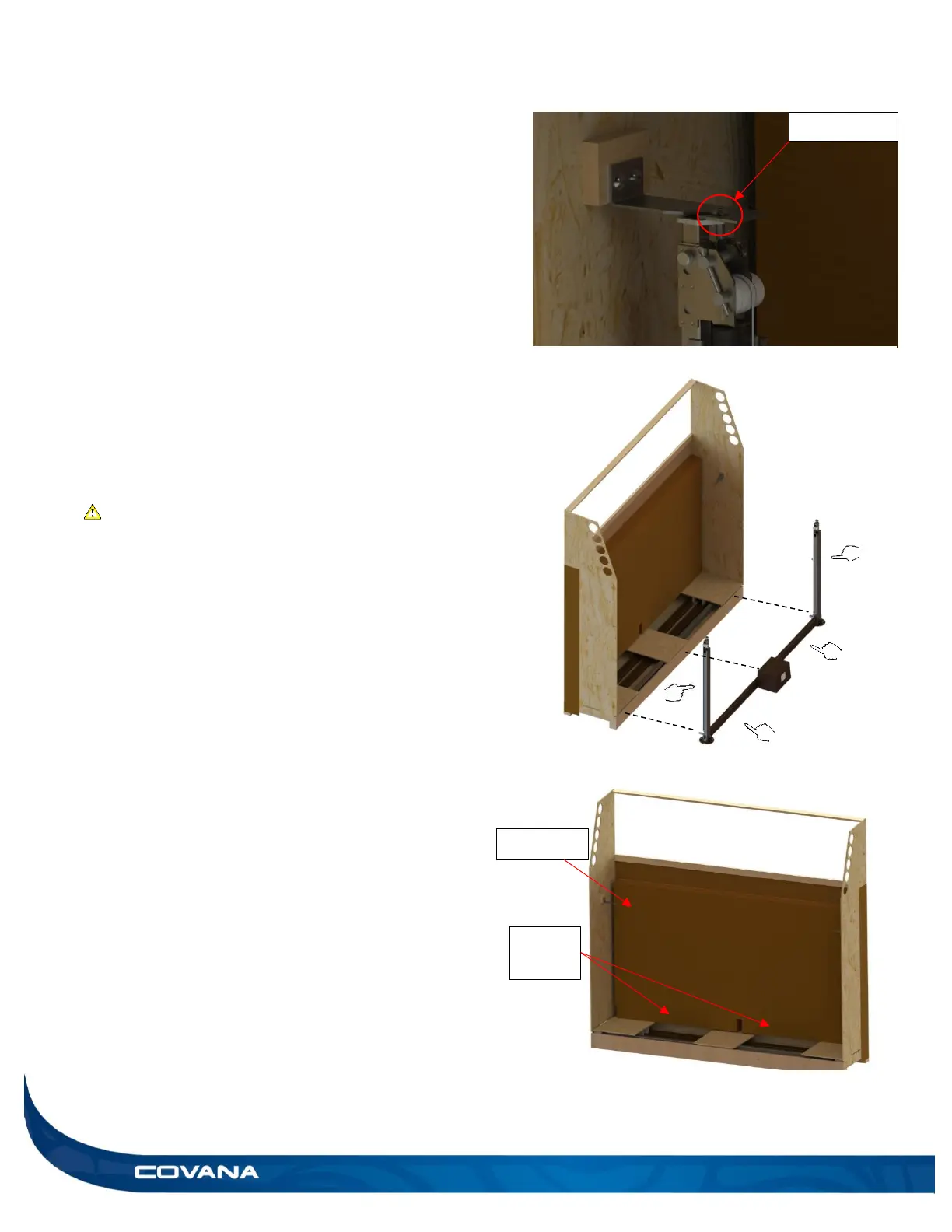

9) For each jack, use the 7/32″ (5.5 mm) Allen key
to loosen —but not fully remove—the 3/8″-24 x
1″ bolt holding the jack to the bracket. There is
one bolt per jack. Do not discard this bolt and
bushing; they are required to assemble the
Covana cover. (Figure 32)
10) With the help of another person, remove the
motor frame assembly from the crate. Place one
hand under the horizontal portion of the motor
frame and the other one on the vertical jack.
(see Figure 33 for hand positioning). Handle
and carry the assembly with care, so that the
jacks follow the natural bending of the U-frame.
Place the motor frame on a level surface to
ensure the assembly does not fall. (Figure 33)
CAUTION
Do not twist the assembly, since this may cause
mechanical failure to the operator and chain
assembly.
Jacks may be greasy; wash your hands after
handling them or use gloves.
Do not damage the jack or frame components
resting at the bottom of the crate.
Flatten any protruding nails.
11) With the help of another person, remove
carefully the panel box and the sleeve boxes
from the crate. Place them in a safe space not
to damage any component. (Figure 34)
