CPS MAXXAIR MX3030 - Diagnostics of System Components

41

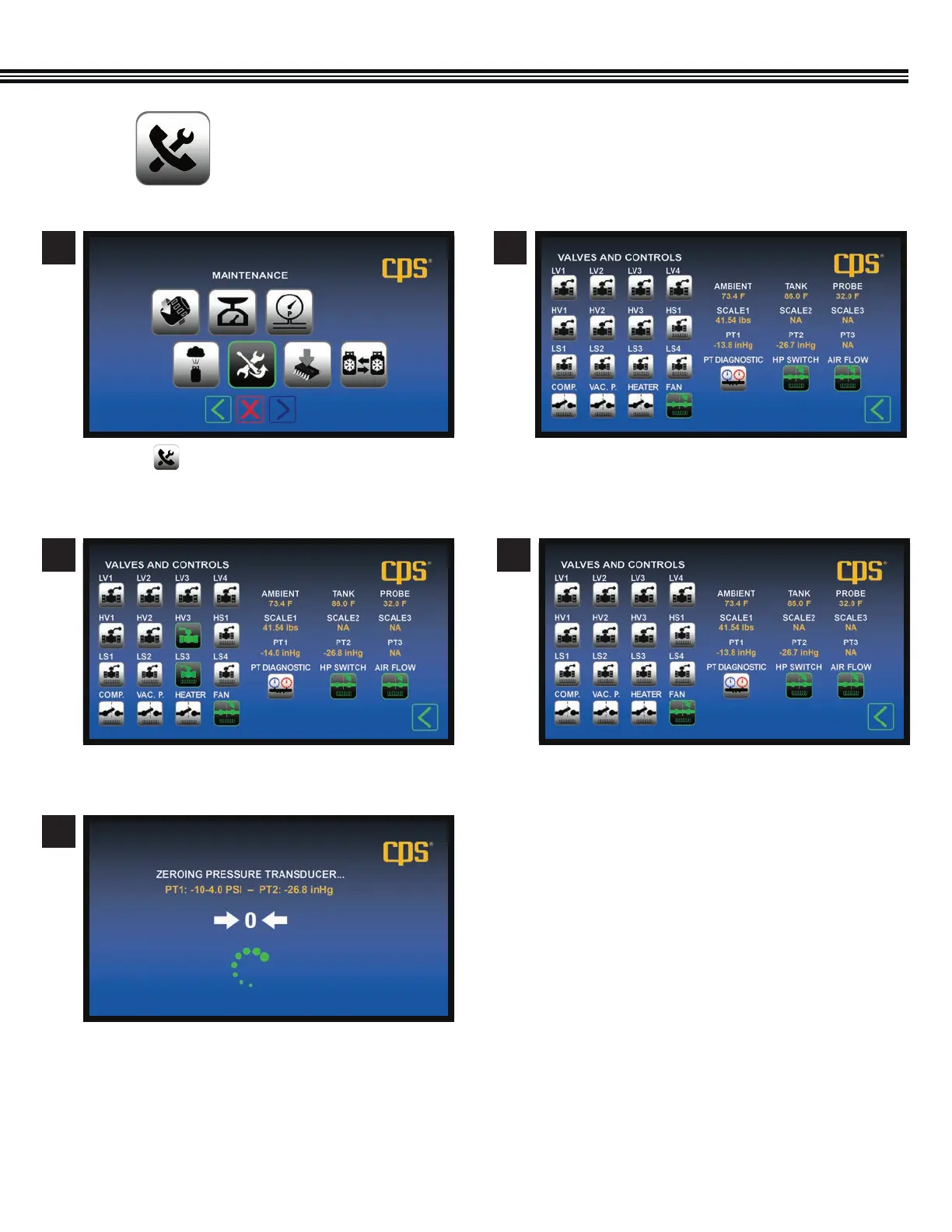

DIAGNOSTICS OF INDIVIDUAL VALVES, CONTROLS, SCALE, TANK, ETC
(Not All Screens Are Shown)
a. List of Valves, Controls, PT’s Scale, etc. to select
for disgnostics.
a. Or, select PT1 or PT2 for diagnostics.
a. Touch (Valves & Controls Icon).
a. Select a valve or control for individual diagnostics.
a. Zeroing PT1 & PT2.
2
4
4
3
5
1
MAINTENANCE (Cont’d)
Valves & Controls Screen
Valves & Controls ScreenValves & Controls Screen
