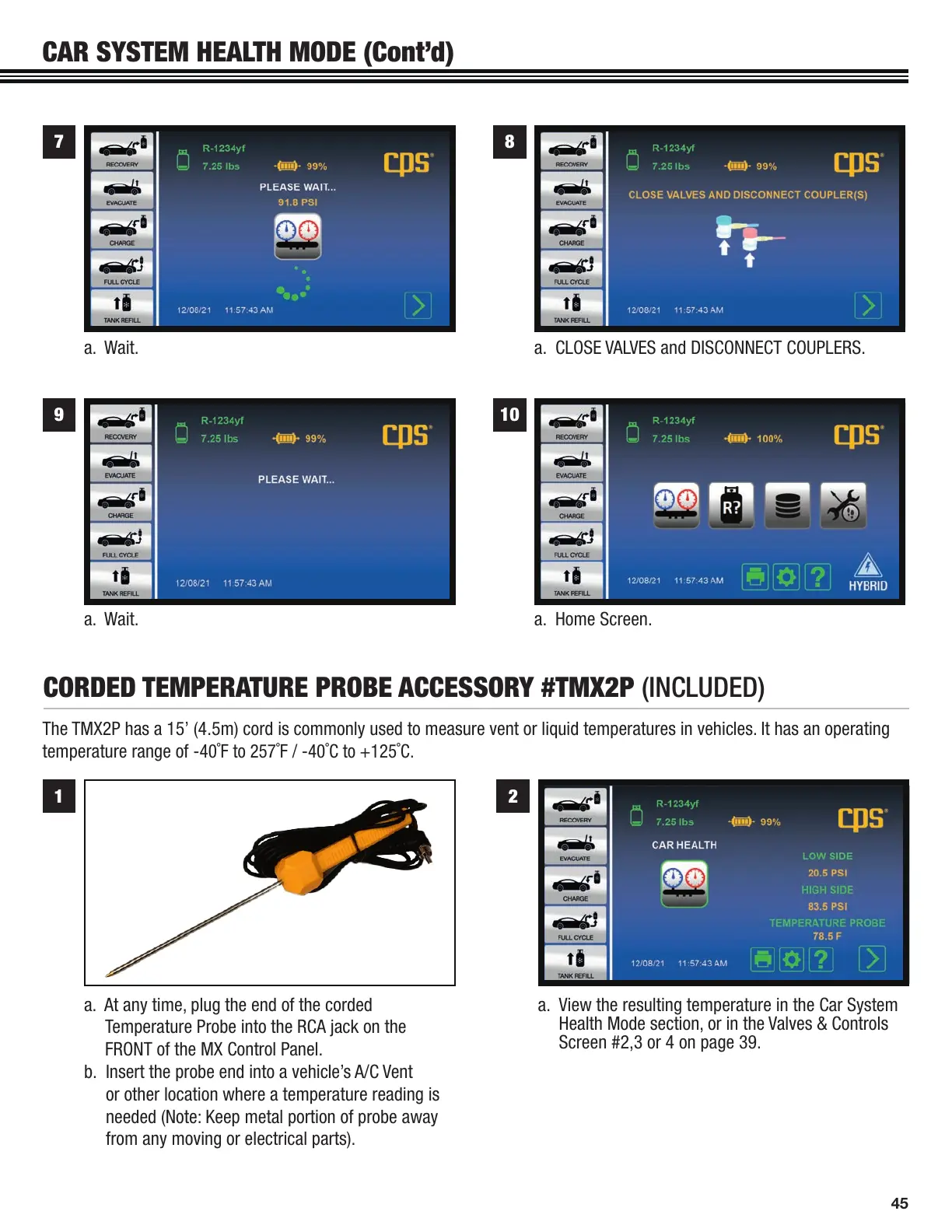

CAR SYSTEM HEALTH MODE (Cont’d)
7 8
9 10
a. Wait.
a. Wait. a. Home Screen.
a. CLOSE VALVES and DISCONNECT COUPLERS.
CORDED TEMPERATURE PROBE ACCESSORY #TMX2P (INCLUDED)
1
The TMX2P has a 15’ (4.5m) cord is commonly used to measure vent or liquid temperatures in vehicles. It has an operating
temperature range of
-40˚F to 257˚F / -40˚C to +125˚C.
a. At any time, plug the end of the corded
Temperature Probe into the RCA jack on the
FRONT of the MX Control Panel.
b. Insert the probe end into a vehicle’s A/C Vent
or other location where a temperature reading is
needed (Note: Keep metal portion of probe away
from any moving or electrical parts).
a. View the resulting temperature in the Car System
Health Mode section, or in the Valves & Controls
Screen #2,3 or 4 on page 39.
