After hanging, push the enclosure to the right to its final position
(Figure 3-13) and secure with M6x18 combination screw (torque:
6Nm (53 in-lbs)).

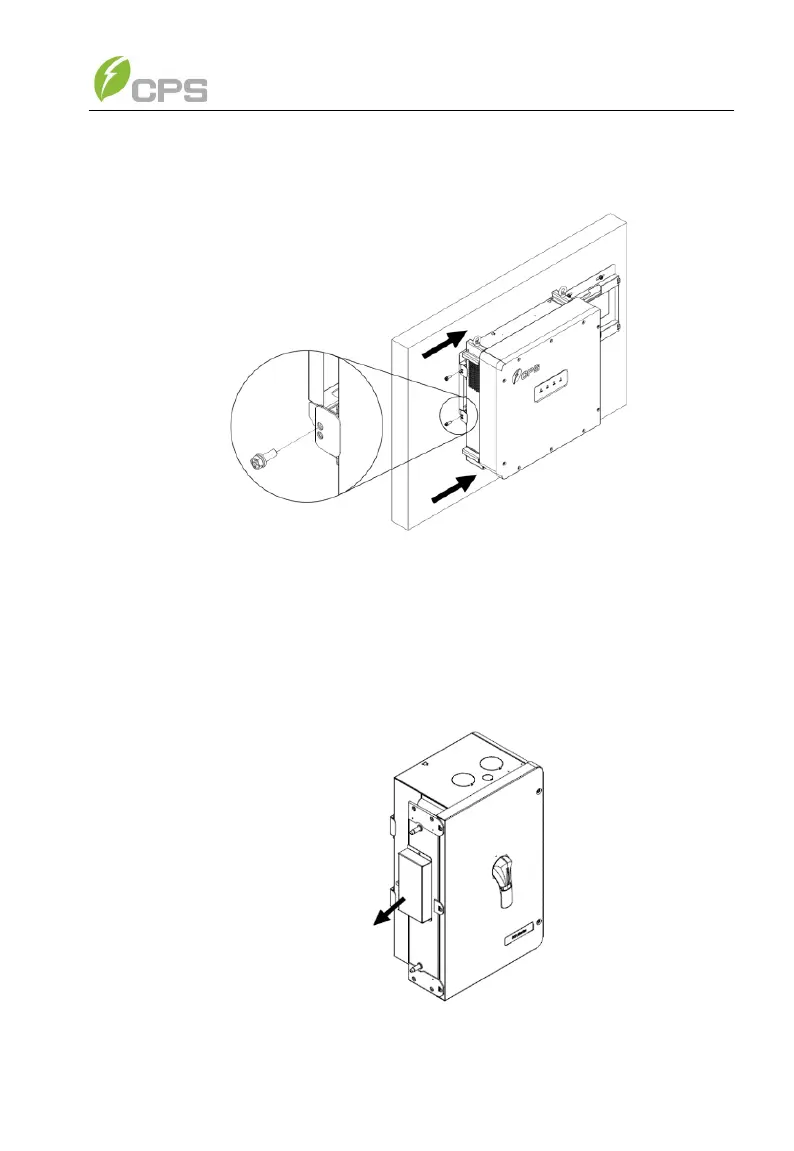

Figure 3-13 The main Enclosure Position
(4) Install the wire box. Tools required: No. 2 Phillips head screwdriver,
13mm hex head wrench.
A. Remove the connector cover on the left of the wire box, Save the
cover and screws (see Figure 3-14).
Figure 3-14 Wire Box Cover
