(5) Storing the connector covers. Tool required: No. 2 Phillips head
screwdriver.
Attach the inverter’s connector cover and wire-box connector cover
shown in Figure 3-10 and Figure 3-14 to the top of the inverter and
wire-box. (Figure 3-17)
Torque value of 1.6N.m (14.2in-lbs.).

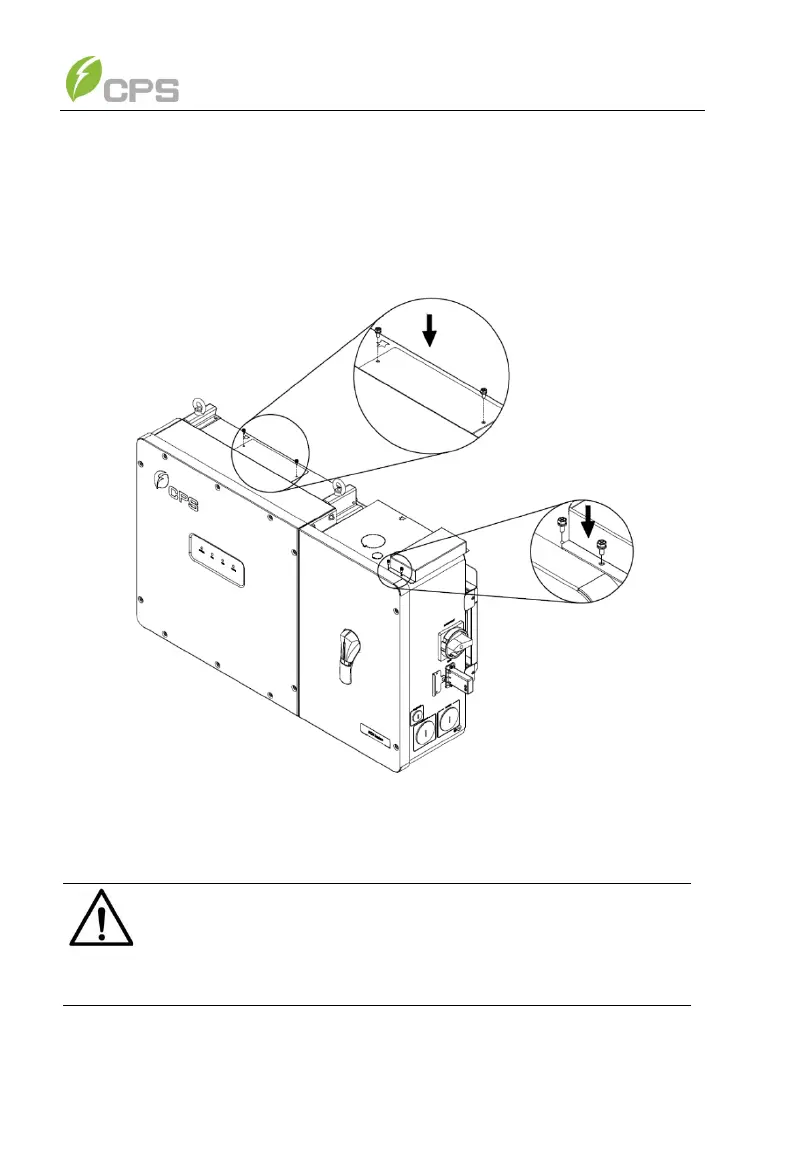

Figure 3-17 Attach the Cover to the top of the Inverter
NOTICE!
Cover and screws may be required for servicing in the future.
Covers do not provide waterproof protection.
Please check water-proof seal after removing the cover plate.
