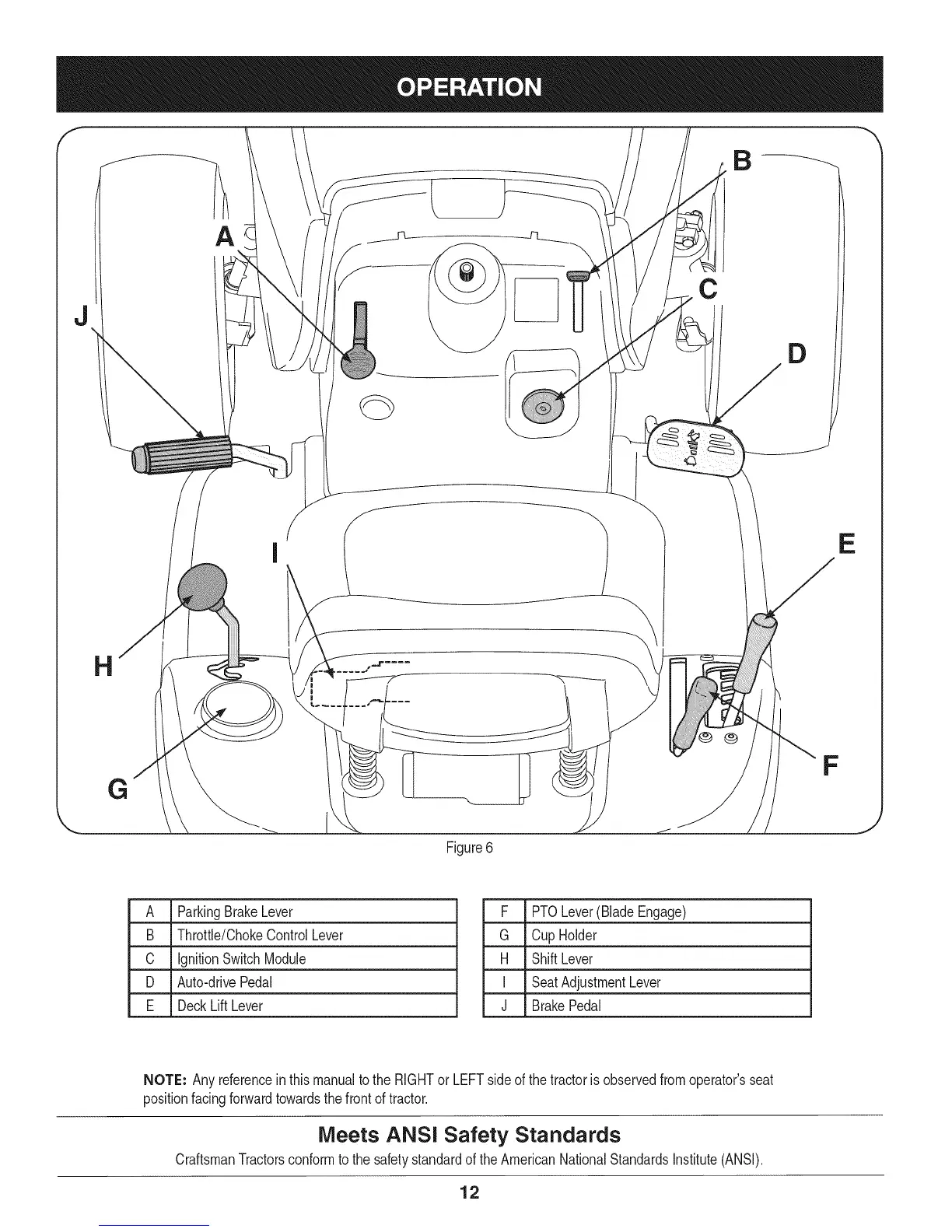

Crafstman LT 2000 - OPERATION; CONTROL PANEL OVERVIEW

B
C
D
E
G
Figure6
F
J
A ParkingBrakeLever
B Throttle/ChokeControlLever
C IgnitionSwitchModule
D Auto-drivePedal
E DeckLift Lever
F PTOLever(BladeEngage)
G CupHolder
H ShiftLever
I SeatAdjustmentLever
J BrakePedal
NOTE: Any referencein thismanualto the RIGHTor LEFTsideofthe tractorisobservedfromoperator'sseat
positionfacingforwardtowardsthefrontof tractor.
Meets ANSi Safety Standards
CraftsmanTractorsconformtothe safetystandardoftheAmericanNationalStandardsInstitute(ANSI).
12
