10
ASSEMBLY
CX205/CX206 features 4 mounting holes
on its base. To mount and level the table
saw on your shop floor, shimming may be
required. Mounting the saw to the floor
reduces vibration and increases stability.
Motor Cabinet
Take the motor cabinet and attach it to the
table saw by inserting the hinge pins into
the hinge sockets on the cabinet. See
figure-4

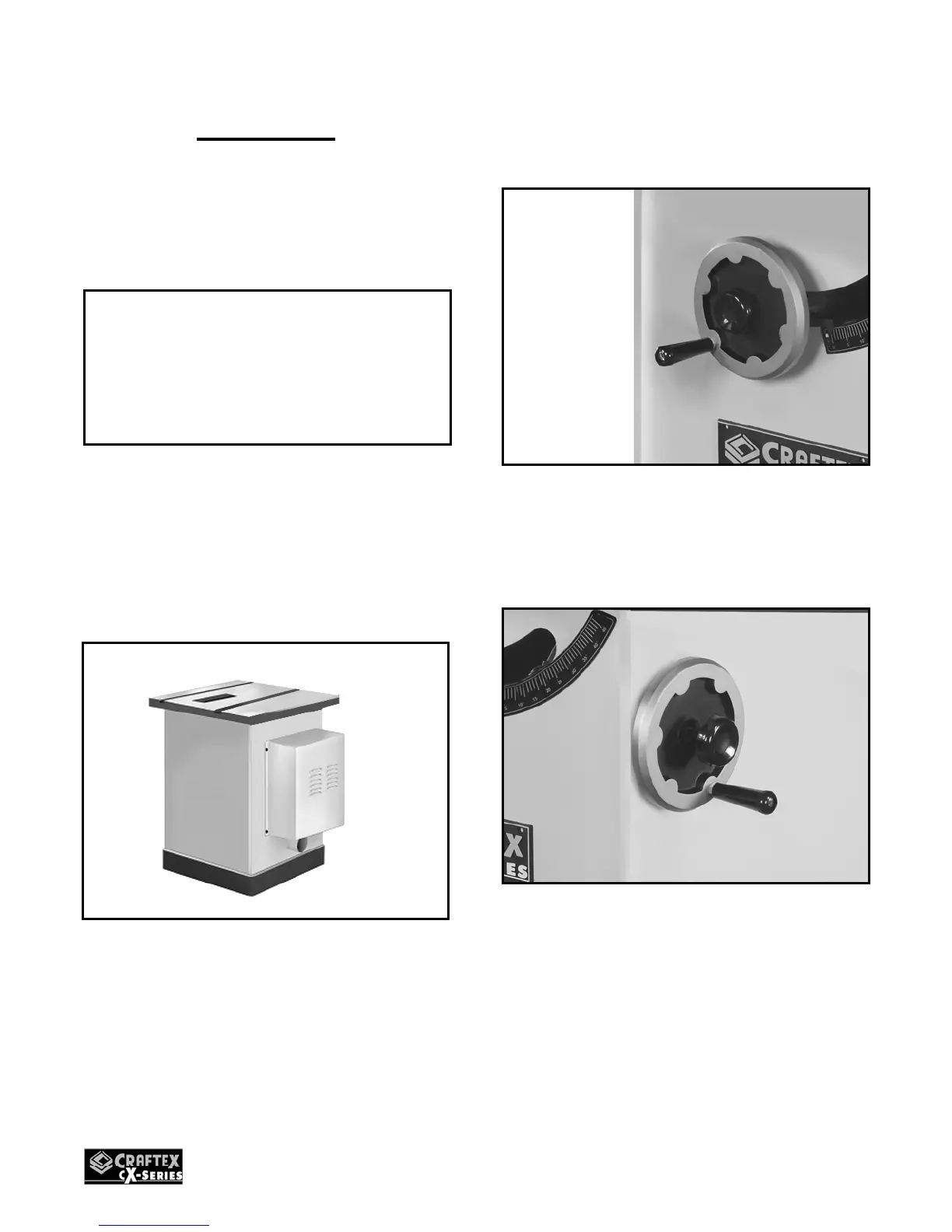

Figure-4 Installing the motor cabinet
Hand Wheels
The hand wheels for the blade height and
blade tilt are provided with the parts of the
machine. Simply slide the hand wheel on
shaft secure it with a set screw provided.
See figure-5
Figure-5 Installing blade height hand wheel
Insert the crank handle into the hand wheel
shaft and secure it by rotating a few turns.
Figure-6 Installing blade tilt hand wheel
Extension Wings
Remove all the screws from the end of the
main table and clean mating surfaces of the
main table and the extension wings. Make
sure there is no debris or any foreign
material on the mating surfaces of the main
IMPORTANT
Place the table saw on a flat and level
surface, and make sure that the mobile
base is locked before proceeding to
assembly if using a mobile base.
To Next Page
