SETUP
Before setting up your machine you should
read and understand the instructions given
in this manual.
The unpainted surfaces of this table saw
are coated with rust prevention waxy oil and
you will want to remove this before you
begin assembly. Use a solvent cleaner that
will not damage painted surfaces.
UNPAKING
The machine properly packaged and is
shipped completely in 3 crates for safe
transportation. When unpacking, carefully
inspect the crate and ensure that nothing
has been damaged during transit. Open the
crate and check that the machine is in a
good condition.

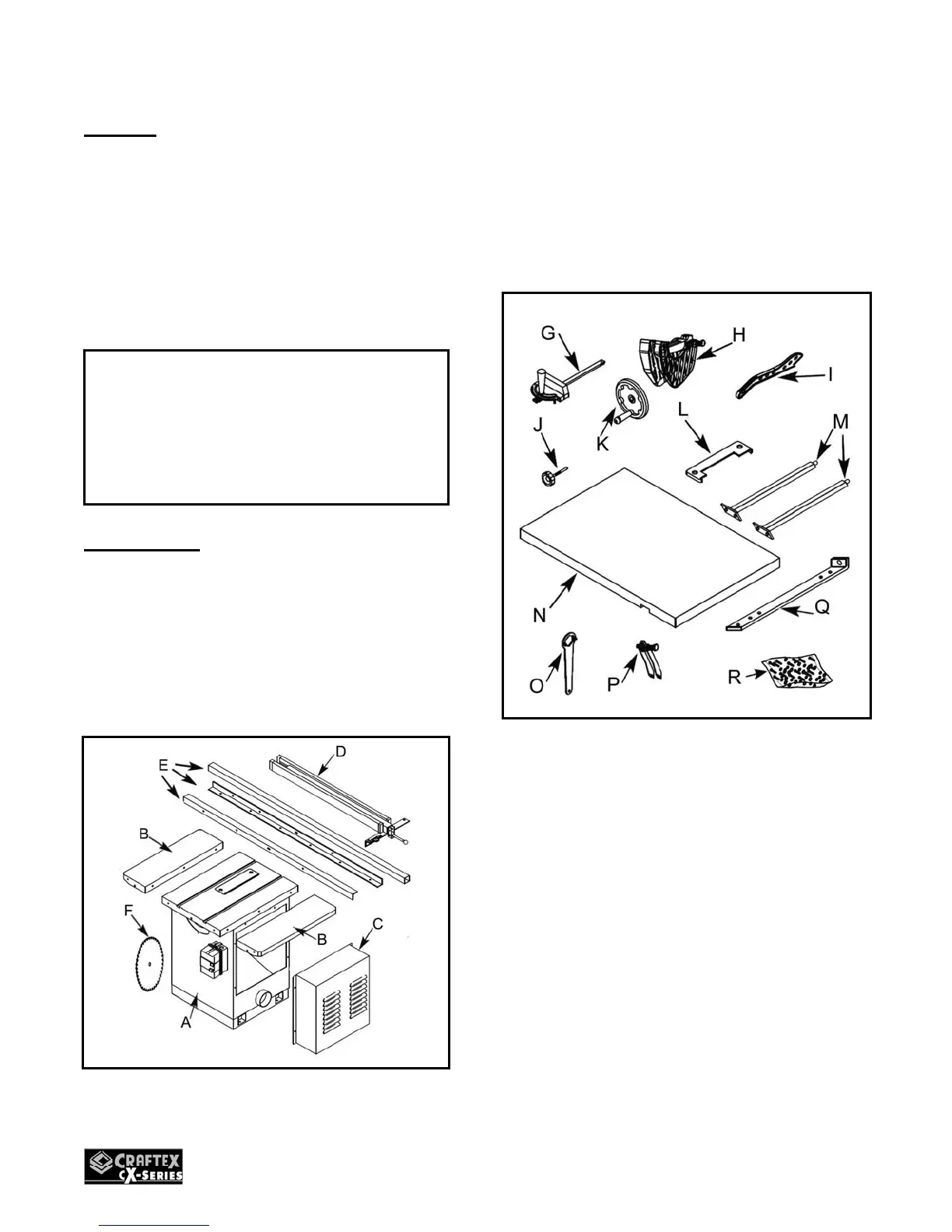

Figure-1 Inverntory
List of Contents
A. Table Saw........................................ 1
B. Table Extensions ............................. 2
C. Cabinet Door.................................... 1
D. Rip Fence ........................................ 1
E. Front & Rear Rails ........................... 3
F. Blade................................................ 1
Figure-2 Inventory
List of Contents
G. Miter Gauge..................................... 1
H. Blade Guard..................................... 1
I. Push Stick........................................ 1
J. Lock Knob........................................ 1
K. Hand-wheel...................................... 2
L. Dado Insert ...................................... 1
M. Extension Table Legs (Optional)..... 2
N. Extension Table (Optional) ............. 1
O. Arbor Wrench................................... 1
P. Anti Kickback Pawl........................... 1
Q. Legs Connecting Rod (Optional)..... 1
R. Hardware Bag.................................. 1
WARNING
CX205/CX206 is a very heavy machine,
do not over-exert yourself. For safe
moving method use fork truck or get the
help of an assistant or friend.
