13
Fence Tape Scale
Slide the fence against the blade and lock it
in position. Place the adhesive backed tape
scale on the fence tube so that the “0” on
the tape scale is aligned with the red
pointer. Mark the “0” on the rail tube with a
marker. Remove the fence and peel off the
adhesive backed tape scale. Align the
marked point with the “0” on the scale and
attach the scale to the rail tube.

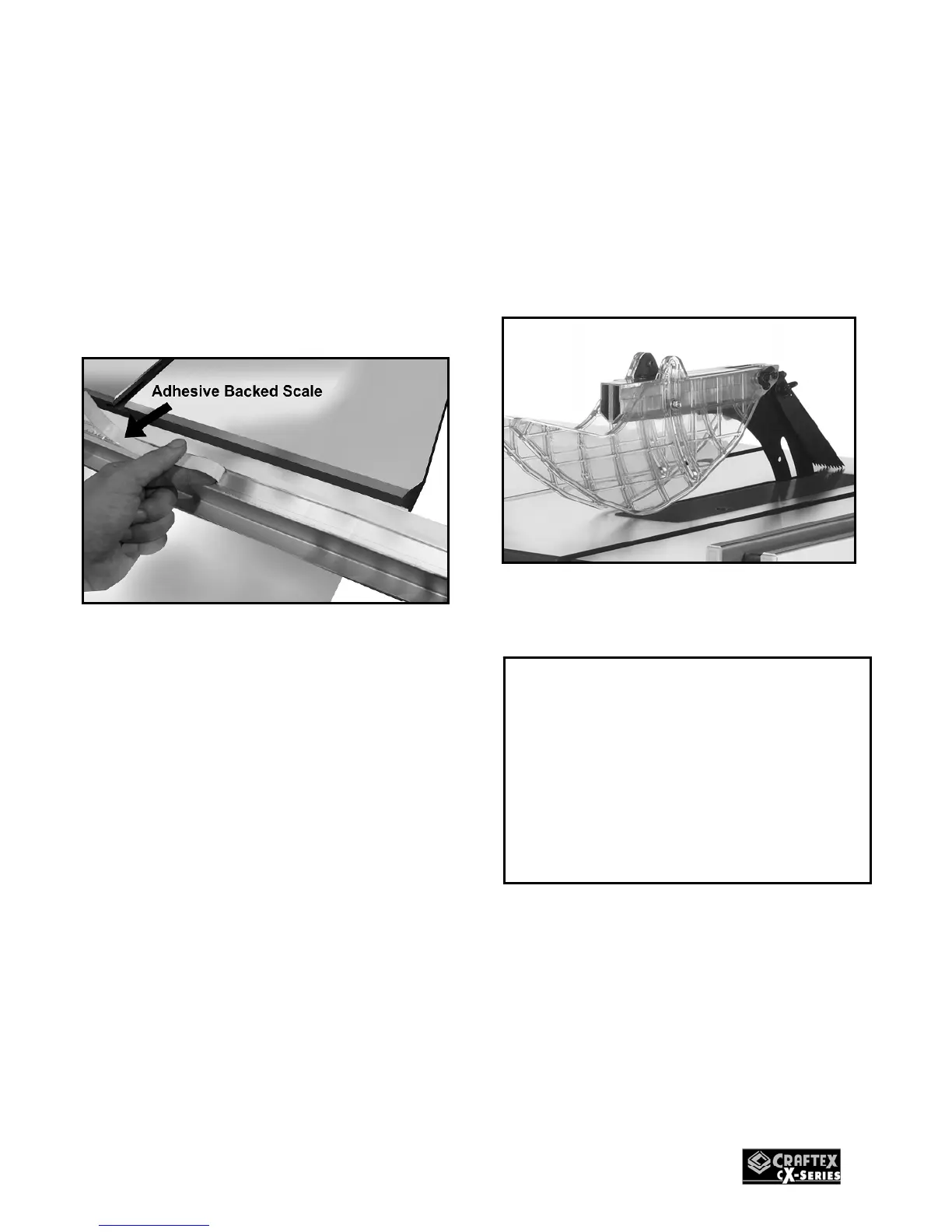

Figure-12 Attaching adhesive backed tape
scale on the rail tube
If you make any mistakes while attaching
the adhesive backed scale to the rail tube,
loosen the screws on the pointer window
and slide the fence against the blade.
Adjust the pointer so that the red line on the
pointer window is over “0” on the tape and
tighten the screws.
Blade Guard & Anti-Kick Back
Pawls
Take your blade guard and place the slot
for the blade body over the riving knife.
Locate the middle notch of the riving knife
and insert the rear pin of the blade guard
into that notch. After, insert the front pin at
the blade guard into the front notch of the
riving knife. Ensure the blade guard is in the
correct position and tighten the wing nut.
Place the set of Anti-Kickback pawls onto
the riving knife at the notch. Press the
pawls completely down and tighten the
wing nut in position.
Figure-13 Installing the blade guard and
anti-kick back pawls
WARNING
Do not remove the anti-kick back pawls
in normal operations, unless you find it
necessary. The anti-kick back pawls
prevent kick backs while cutting.
Removing the anti-kick back pawls
increases the risk of serious injury to the
operator.
