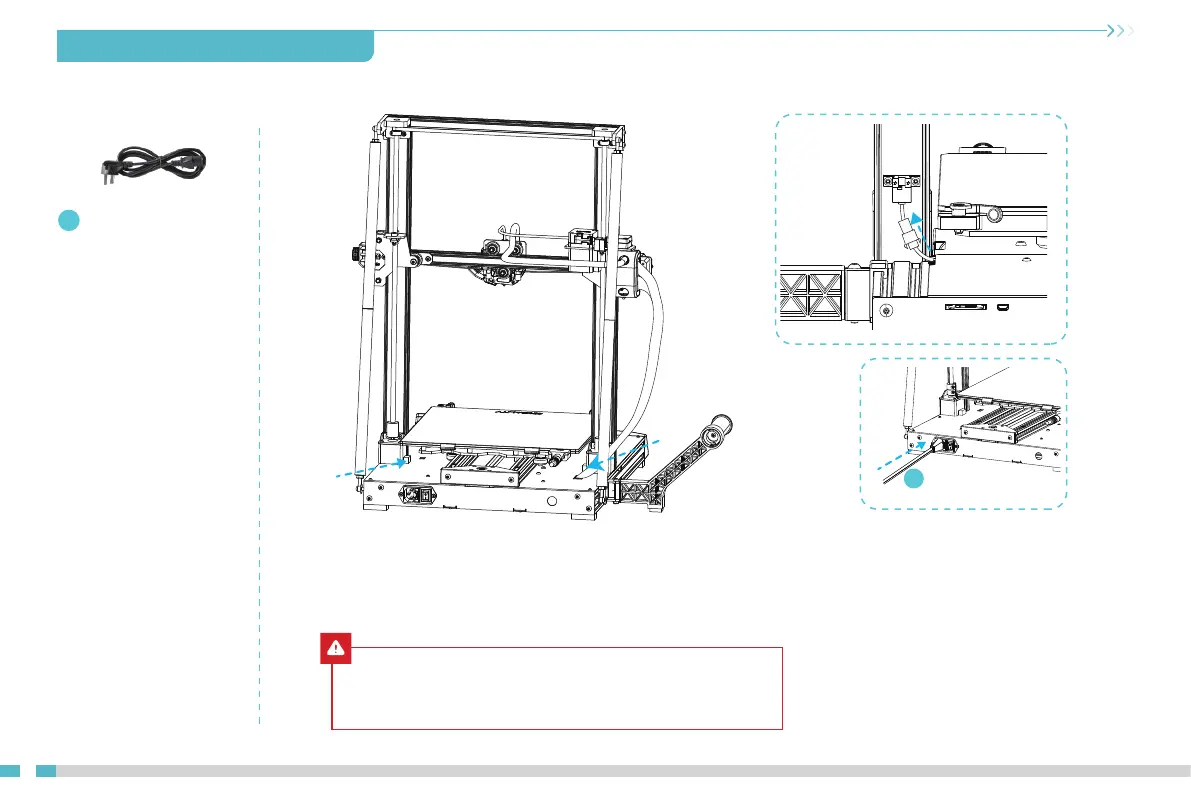

8. Cable Connection 设备接线
Caution
●Do not connect or disconnect the cables when the machine is powered on.
●当机器通电时，请勿连接或断开连接线。
4
Power Cord｜电源线
4
C
D
A 、Connect the 15pin port to the nozzle adapter board as shown in the figure按图示15pin端口连接喷头转接板
B、Connect Z-axis motor cable 连接Z轴电机线
C、Connect the photoelectric switch wire 连接光电开关线
D 、Connect the power cord 连接电源线
Z2
Z1
B
B
A
08
