3.Assembly Procedure
06
Caution
●
●
If the mains between 200V and 240V, please select the 230V for the power
supply switch(default is 230V).
●
If the mains between 100V and 120V, please select the 115V for the power
supply switch.
Tips:

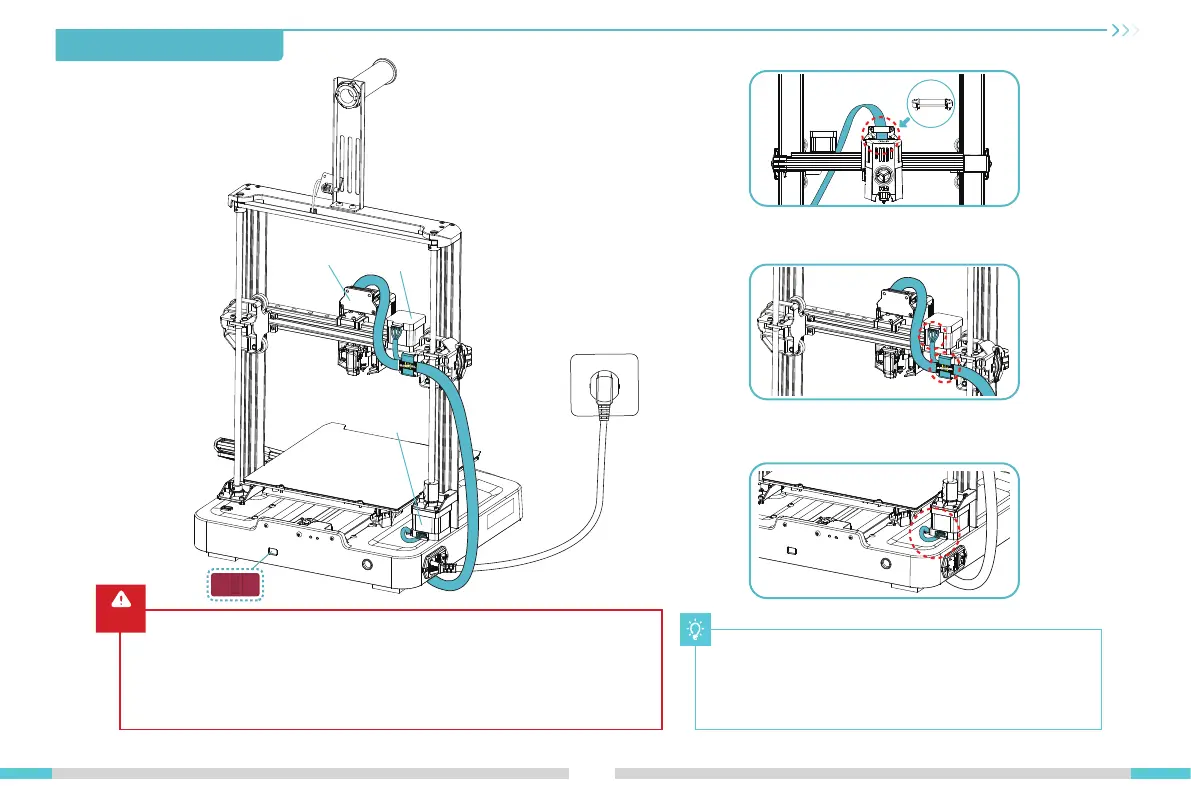

3.4 Equipment Wiring
② Following the wire label instructions, first insert the
extruder line into the cable fixing clip, and then connect
the X-axis motor;
Please ensure proper wiring according to the provided
diagram and avoid overturning or folding the extruder cable,
as it may cause printing abnormalities.
③ Connect the Z-axis motor.
① First insert the nozzle wire into the nozzle adapter plate
, then install the FFC fixing clip assembly, and use M3*8
screws to fix and lock it;
X-axis motor
Z-axis motor
Extruder adapter
board
④ Switch on the power
115V
230V
Z轴电机
喷头转接板
④ 接通电源
115V
230V
断料检测开关
Please ensure the correct position for the power supply switch and mains
before supply connection, in order to avoid damage to the device.
