Creality Ender-3 V3 KE

3.Assembly Procedure

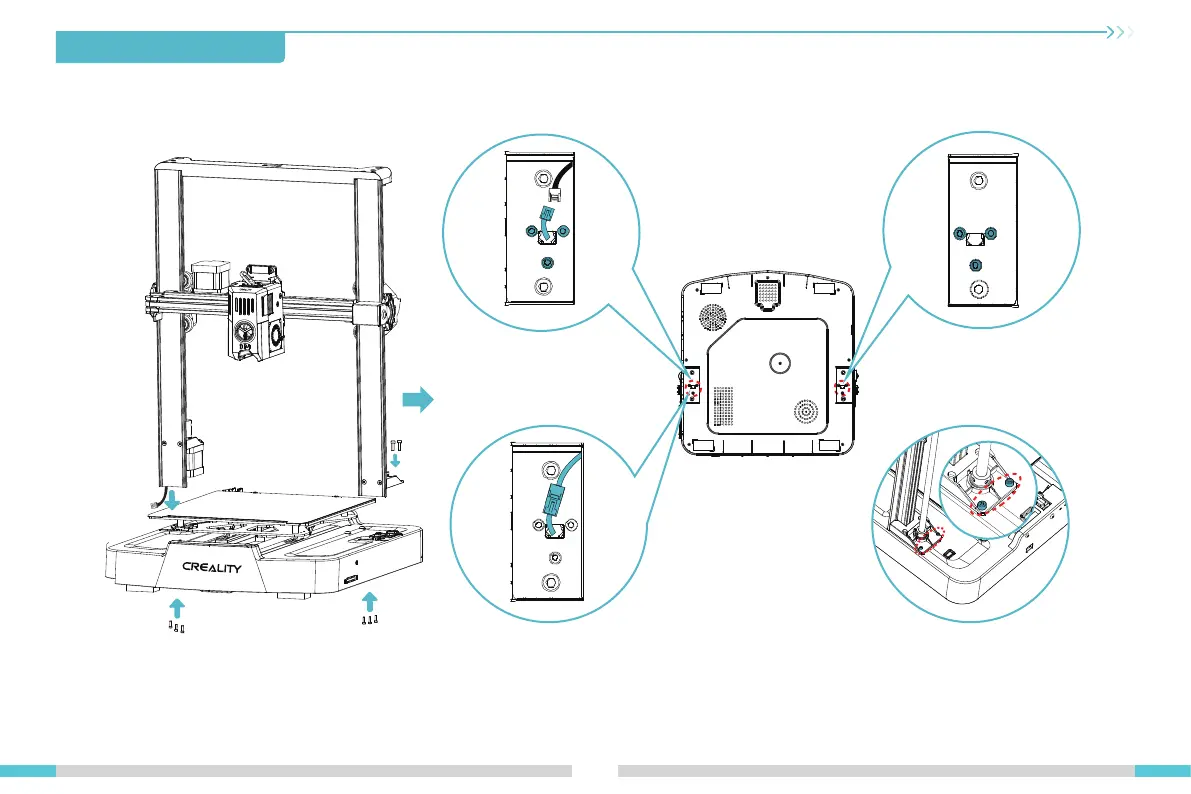

3.1 Gantry frame
03
*Avoid profile
pressing against
filament
detection line
Bottom view
④ Secure the bottom shell and gantry
frame with M3*8 screws.
③ Secure the bottom shell with
M3*14 screws.
② Dock the filament detection
line port.
① The gantry is placed in the base
card slot, and the broken material
detection port is passed through the
bottom shell pair interface, and it is
fixed with M3*14 screws;
