Machine Diagram
Front and Back
12
13
17
18
14
15
1920
16
1
2
3
4
7
8
9
5
10
11
6
12. Power socket
13. Spool holder
14. Filament
15. Z stop limit
16. Filament inlet
17. X stop limit
18. Filament feeder 1
19. Compression nut
20. Filament feeder 2
1. Power switch
2. SD-card slot
3. Keypad
4. LCD display
5. Leveling nut
6. Leveling spring
7. Build platform
8. Baffle holes
9. X stepper motor
10. Printer head
11. Filament guide pipe
1
2
3
4
5
6
7
10
9
8
11
12
13

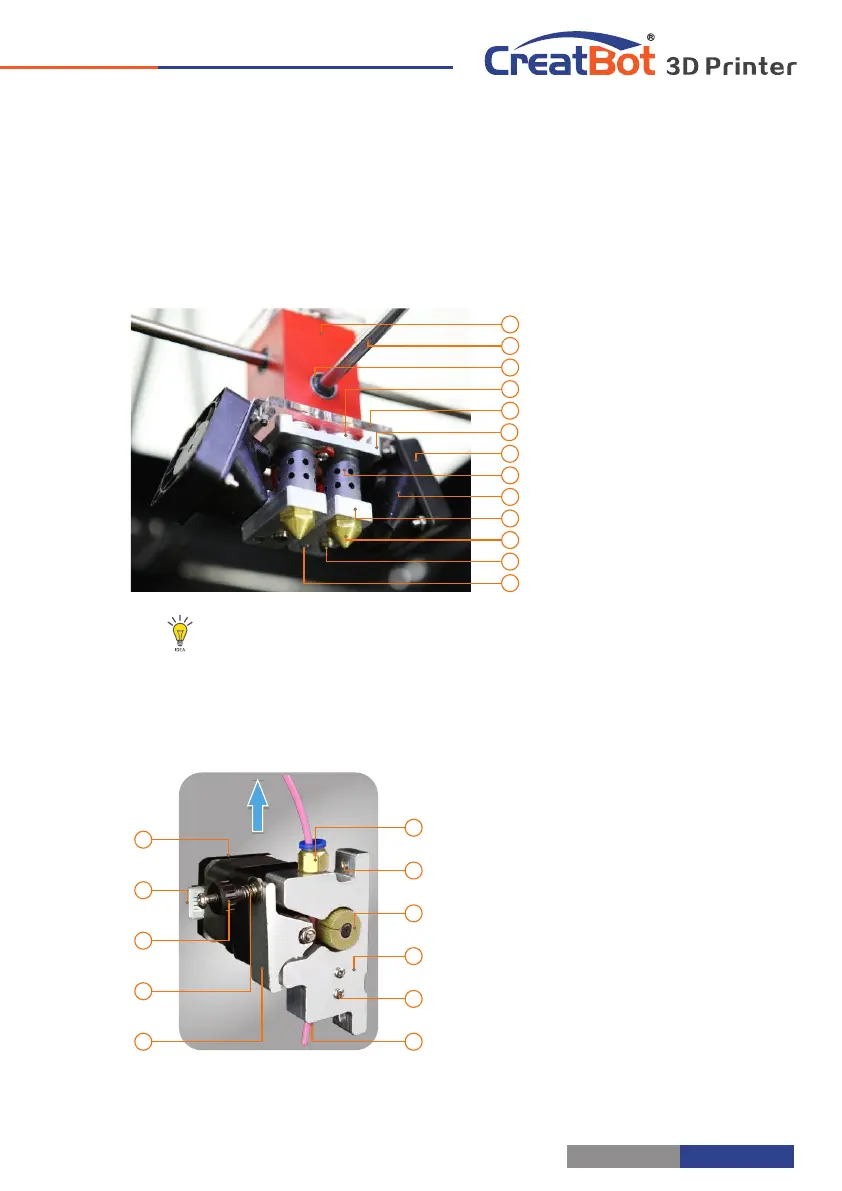

1. Thermostat tube
2. Heating tube
3. Nozzle
4. Heating block
5. Fan duct
6. Insulation tube
7. Cooling fan
8. Head Al. frame
9. Adapter plate
10. Head adjust
11. Linear bearing
12. Linear axis
13. Head main block
6
7
8
9
11
1
2
3
4
5
10
1. Pressure arm
2. Pressure spring
3. Pressure nut
4. Wire socket
5. Geared motor
6. Filament inlet
7. Filament sensor
8. Feeder body
9. Feeding wheel
10. Fixed hole
11. Pipe joint
Filament Feeder
Printer Head
