Creative Blaster - Page 39

2-24 Modem Installation
3. Double-click the Modems icon.
The
Modems Properties
sheet, similar to
Figure 2-33
, appears.
4. Click on the Diagnostics tab.
A dialog box similar to
Figure 2-34
will appear.

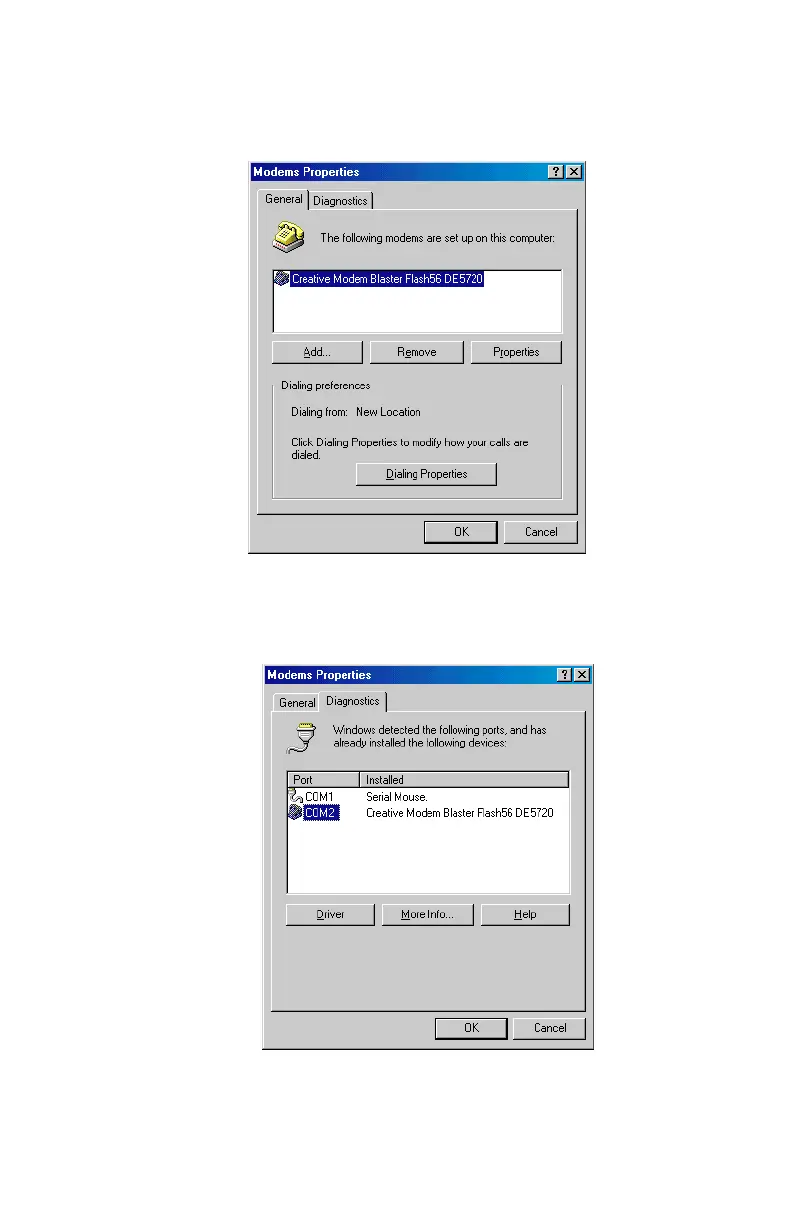

Figure 2-33: Modem is confirmed installed via ‘Modem Properties’ dialog box
Figure 2-34: ‘Diagnostics’ showing modem located COM port
