LANTest
Tap LAN Test on the Diagnostics & Advanced screen to display the EthernetDiagnostics screen.

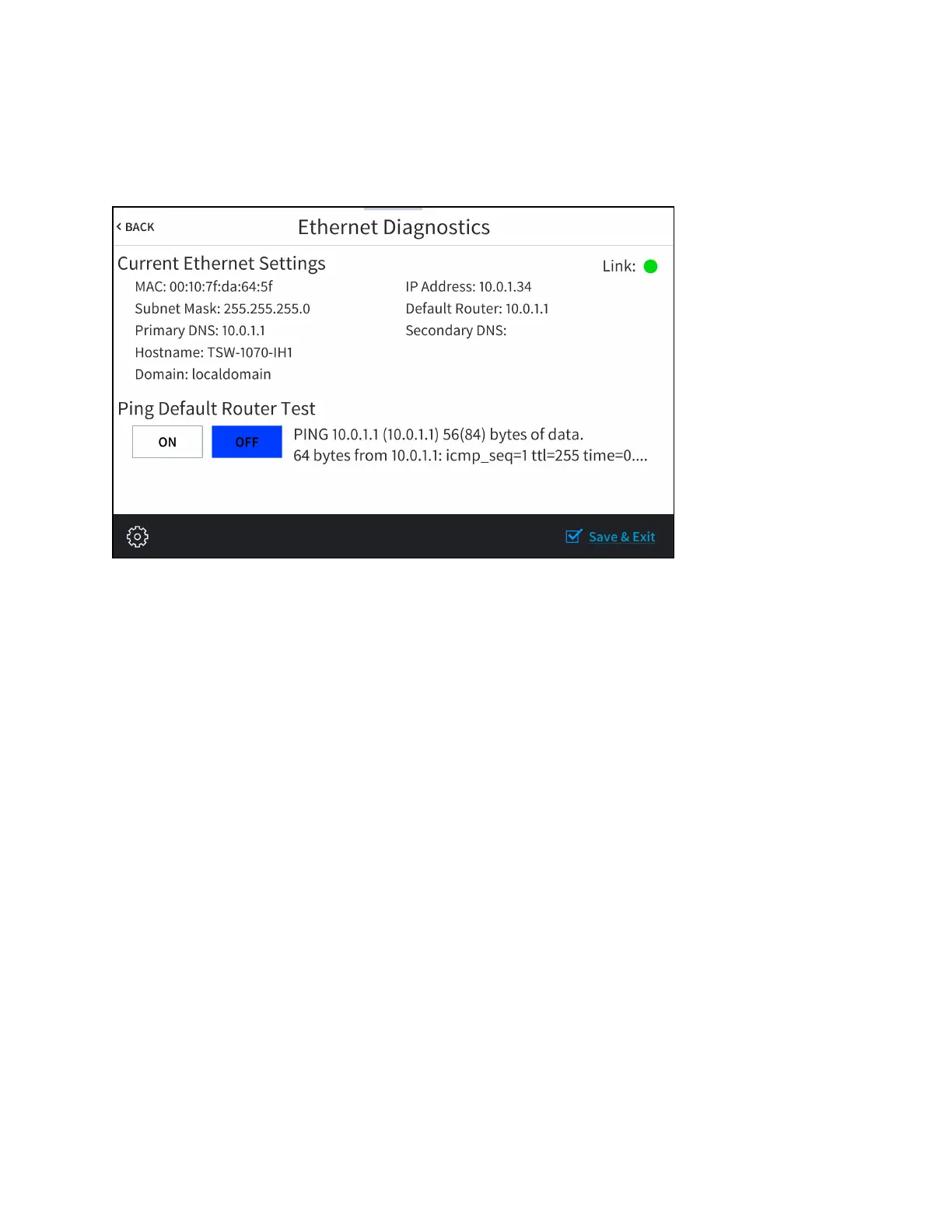

Ethernet Diagnostics Screen
Use the Ethernet Diagnostics screen to view and test the Ethernet connection. The Ethernet
Diagnostics screen displays the touch screen MAC and IP addresses, subnet mask address,
default router address, primary and secondary DNS addresses, host name, and domain name. A
Link indicator is provided to indicate the status of the Ethernet connection. (Green indicates that
the Ethernet connection is active.)
The Ethernet Diagnostics screen also provides controls to test the connection to the default
router. Tap On to begin the test and Off to end the test.
During the router test, the touch screen pings the default router. If the router is communicating
with the touch screen, connection data is displayed below the ping test controls within five
seconds. The connection data updates after every successive ping.
Tap < BACK to return to the Diagnostics & Advanced screen.
