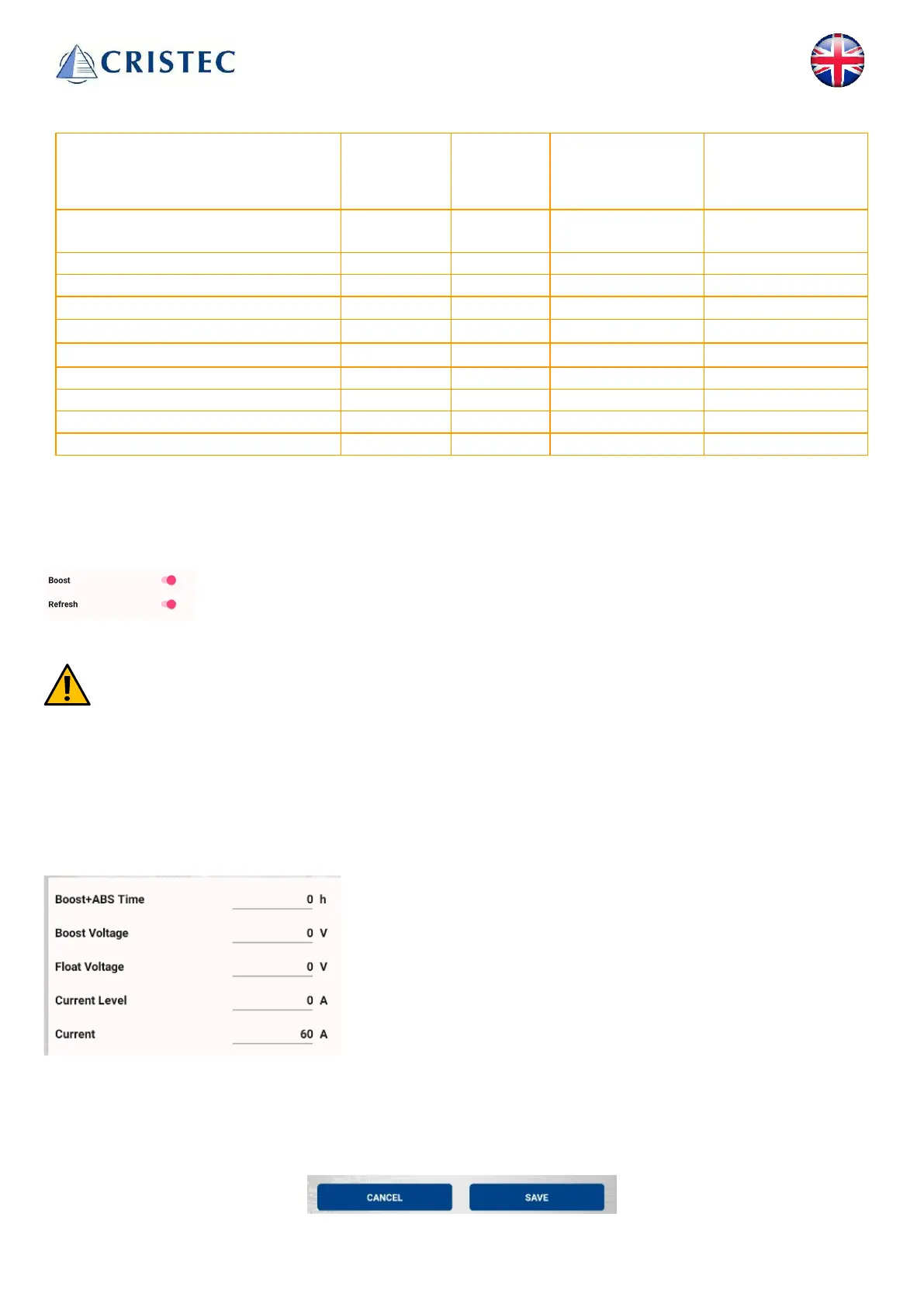

Cristec YPOWER+ - Page 13

38
You can select the following charging curves:
Description of the battery type
Floating
voltage
12V/24V
Boost
voltage
12V/24V
Maximum duration
of BOOST at +/- 5%
T
BOOST
Maximum duration of
ABSOPTION at +/-
5%
T
ABS
Opened type bat
free electrolyte (wet)
13.4V/26.8V 14.1V/28.2V 2H 4H
GEL/AGM/ Sealed lead
13.6V/27.2V
14.4V/28.8V
2H
4H
Spiral type bat
13.6V/27.2V
14.4V/28.8V
2H
4H
Tin calcium lead bat
14.4V/28.8V
15.1V/30.2V
2H
4H
Wintering or standby sealed bat
13.4V/26.8V
13.4V/26.8V
0H
0H
Stabilized DC power supply
12.0V/24.0V
12.0V/24.0V
0H
0H
SPE1 open type bat
13.2V/26.4V
14.8V/29.6V
2H
4H
Lithium (LiFePO4) with BMS (***)
13.8V/27.6V
14.4V/28.8V
6H
1H
STORMLINE Batt
13.7V/27.4V
14.5V/29V
2H
6H
CUSTOM*
13.8V/27.6V
14.4V/28.8V
2H
4H
*Custom mode values are customizable (see 3.3.2.8).
3.3.2.7 Boost and Refresh
Boost and Refresh modes are selected by activating the corresponding checkmarks:
3.3.2.8 Custom mode
Custom mode lets you modify the values of the charger's predefined charge curves.
Warning: Customization of the charging curve, and therefore modification of the parameters
described in this document, is the responsibility of the end user. It is not advisable to modify these
parameters unless you are fully conversant with all aspects of chargers and battery specifications.
Cristec cannot be held responsible for any problems caused by the end user modifying the load curves.
Once the custom mode is set, you can modify the values of the following parameters**:
: Cumulative boost and absorption duration
: Boost voltage
: Float voltage
: Current threshold for switching from absorption to Floating
: Nominal charger output current
** Within charger rating range.
3.3.2.9 Saving
Press the Save button to confirm your choice of batteries, Boost and Refresh.
