21
FOAM PAD FOR MOTOR
E60003621 1
1 E300158 1
BRACKET - TOP, PLAIN END
2 E300132 1
TOP END CAP ASSY - C/W SHAFT GUIDE
3 E300117 1
QUARTZ SLEEVE
4 E300152 1
BRACKET - BTM, MOTOR END
5 E300111 1
BTM END CAP ASSY - MOTOR END
6 350005 2
QUARTZ O RING SEAL
7 350009 1
WIPER O RING SEAL
8 E300108 1
WASHER, TEFLON, 5/8" ID X 1" OD
9 350007 1
U-CUP SEAL FOR WIPER
10 E300142 1
BEARING & BASE, WIPER SHAFT
11 350011 1
BEARING O RING SEAL
12 E300118 1
WIPER & SHAFT ASSY
13 550027 1
FLOW REGULATOR, 13 USGPM
14 E500000 2
3/4" FIP FLEXIBLE HOSE
15 650001 8
BRACKET FASTENER, 1/4-20x5/8"LG16 650000 8
1/4" LOCK WASHER
17 E100034 1
MOTOR & MTG PLATE ASSY
Item Part No.
Qty
Description
Parts List for Hallett 13
65006618
SHAFT RETAINING RING
1
SEAL WASHER FOR FLEXIBLE HOSE
E30013519 4
A
VIEW A
12
7
8
9
10
19
5
4
13
18
20
11
6
14
3
2
1
6
15
16
20 650099 1
17
RUBBER WASHER FOR MOTOR SHAFT

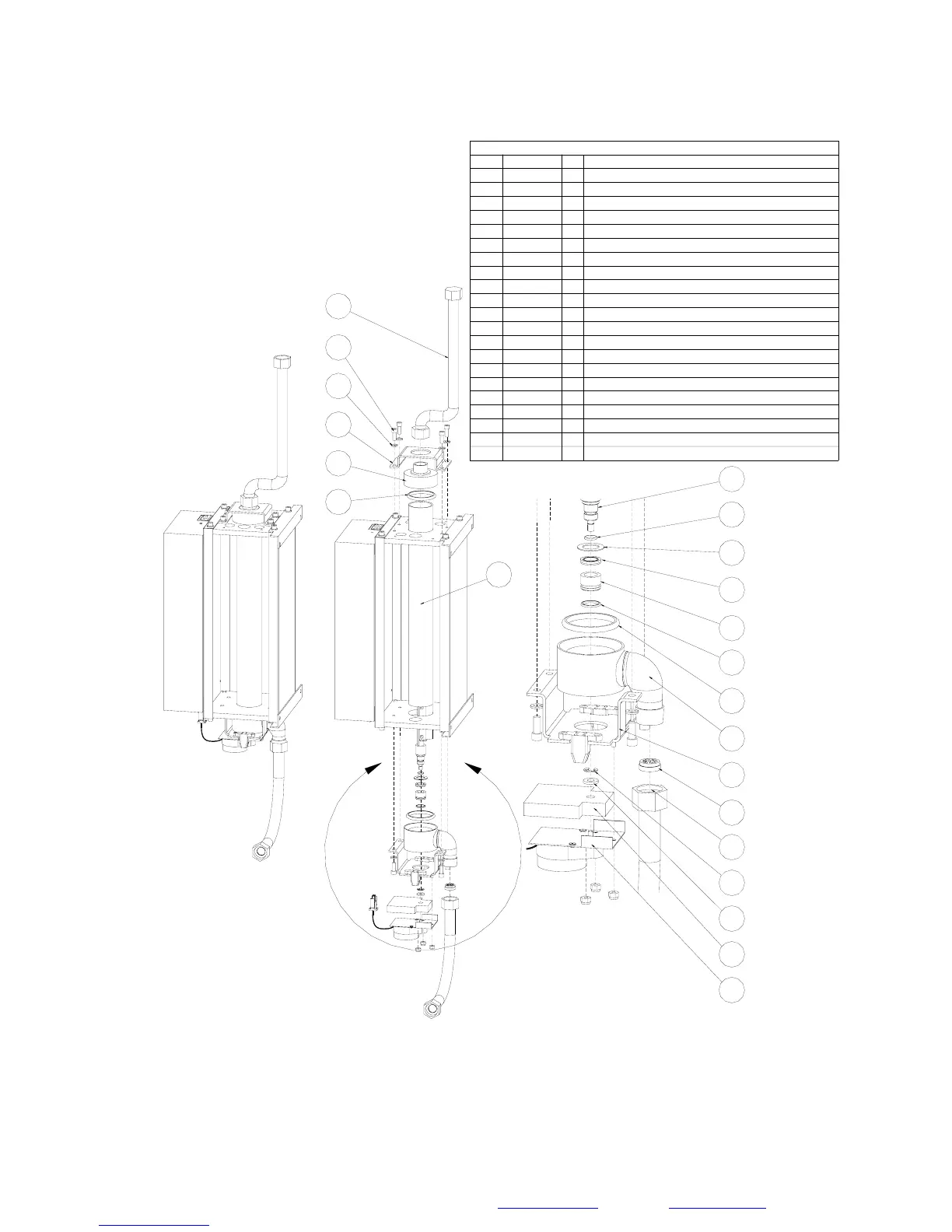

Figure 4B – Hallett 13
