Step 4: Disconnect the Stainless flexible hose from the top of the unit (14) and
remove the top quartz seal assembly.
Caution: Do not damage the sealing surfaces of the end caps (2 and 5) or the
shaft of the wiper assembly (12). Handle these parts with care to prevent water
leaks.
Step 5: Use the 3/16” Hex wrench to remove the top bracket (1) by undoing the
four fasteners in an alternating pattern (top left, bottom right, bottom left, then top
right). The bottom bracket does not require removal to clean the quartz, so leave
it in place. This will support the quartz sleeve during cleaning and simplify the
overall process.
Step 6: Remove the top end cap (2) by lifting it straight up.

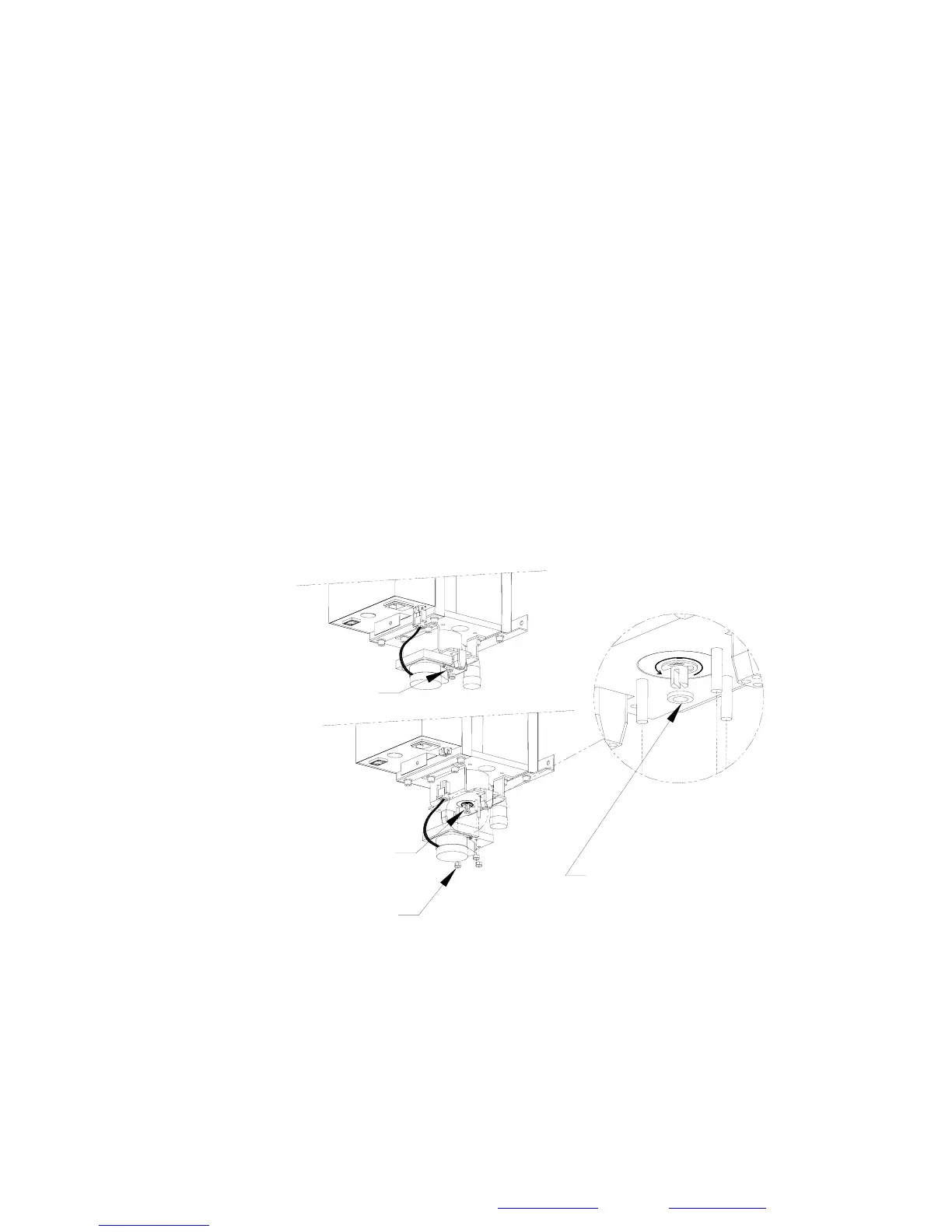

Step 7: Disconnect the wiper motor (17) from the bottom bracket (4) by undoing
the three nuts. See Figure 4C. Pull off the motor plate and foam pad (21) from
the mounting standoffs and unplug the motor. Set the motor aside, holding it by
the body, not the wires.
Do not place the motor in any location where it can
be exposed to moisture.
USE AN 11/32" NUT DRIVER
TO REMOVE NUTS
ALIGN MOTOR SHAFT
WITH SLOT IN WIPER SHAFT
(REMOVE FOAM PAD TO SEE)
DO NOT OVER-
TIGHTEN NUTS
RUBBER WASHER TO
BE INSTALLED ON
WIPER SHAFT BEFORE
MOTOR
Figure 4C
Step 8: Remove the wiper assembly (12). This is a two-step process. First,
remove the rubber washer (20) and shaft retaining ring (18) and place them in a
safe place. Second, carefully lift the wiper assembly up out of the quartz sleeve.
Pushing up on the round wiper shaft that protrudes through the bottom end cap
will help start it to move. Once the wiper assembly is free from the quartz, check
if the U-cup seal (9) is on the wiper shaft and ensure that it does not fall off or get
dirty.
Caution: the wiper blades are sharp, handle them with care.
