CSC SG250 - Electrical System Troubleshooting

SG250 Owner’s and Service Manual
www.CSCMotorcycles.com
105

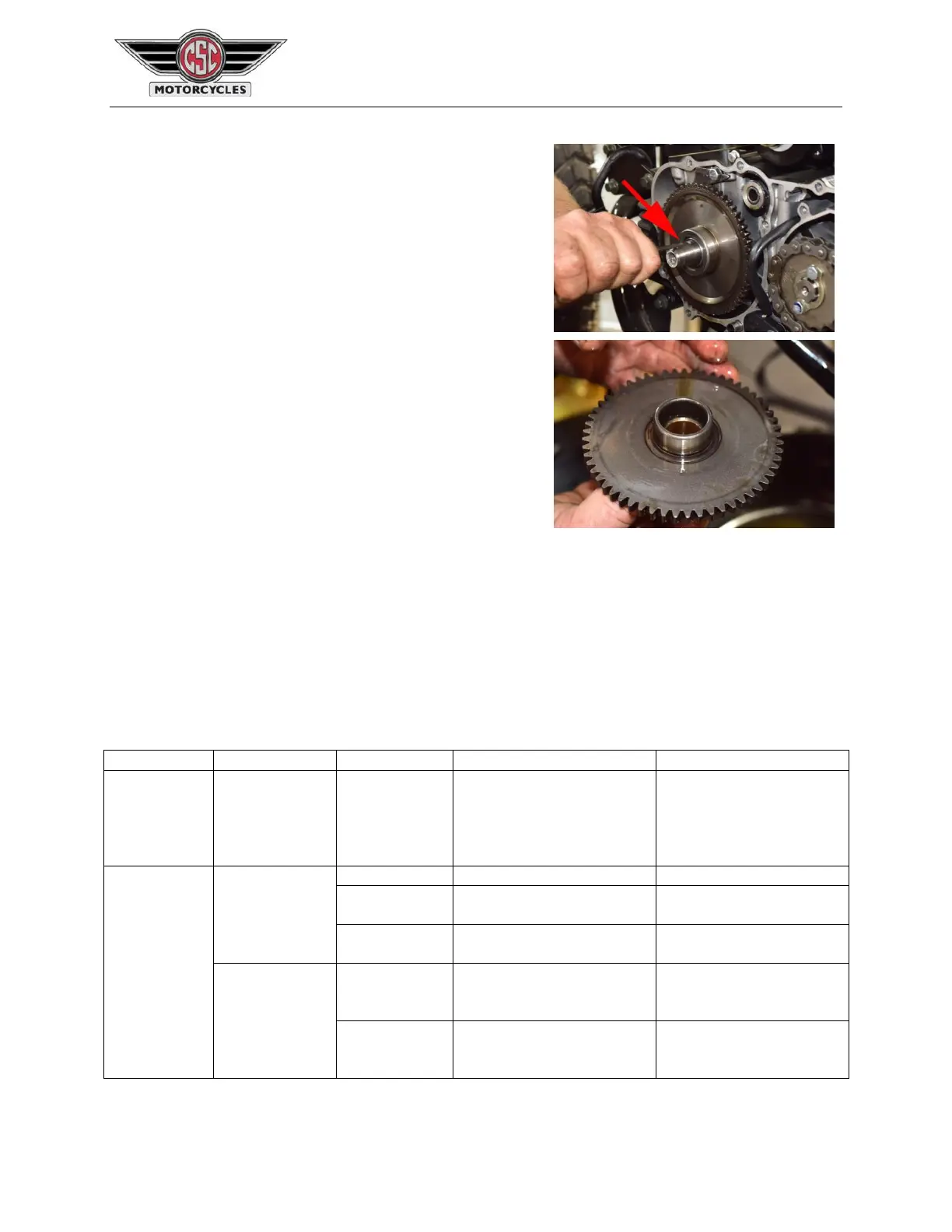

After removing the rotor, remove the engine start drive gear
if it is damaged. To do so, you must remove the small
Woodruff key that indexes the engine start drive gear to the
crankshaft. Gently tap the Woodruff key out with a
screwdriver and a hammer.
Remove the engine start drive gear. If you need a
replacement engine start drive gear, please call us at 909 445
0900.
Assembly is the reverse of disassembly. When assembling the left engine cover to the engine, use a
new gasket (please call us at 909 445 0900 if you need a new gasket). Apply Loctite to the rotor
crankcase bolt and torque the rotor crankcase bolt to 45 ft-lbs. Torque the engine cover mounting and
countershaft cover bolts to 7 ft-lbs.
Electrical System Troubleshooting
Troubleshooting flow charts for electrical system problems are provided below in the following pages.
Item
Symptom
Cause
Vehicle Effect
Maintenance Action
Fuse
No electrical
power to vehicle
Short circuit in
wiring
Cannot operate motorcycle
Check electrical system,
isolate and correct any
short circuits to ground,
replace fuse after
correcting short circuit
Battery
Low or no
output
Charging failure
Cannot operate motorcycle
See below
Battery acid
low
Cannot start motorcycle
Add distilled water
Battery plates
sulfated
Cannot start or operate
motorcycle
Replace battery
Does not charge
No regulator
output
Cannot start or operate
motorcycle
Check regulator output;
replace regulator if
defective
Open circuit in
charging circuit
Cannot start or operate
motorcycle.
Check electrical system,
isolate and correct open
circuit
