SG250 Owner’s and Service Manual
www.CSCMotorcycles.com
79

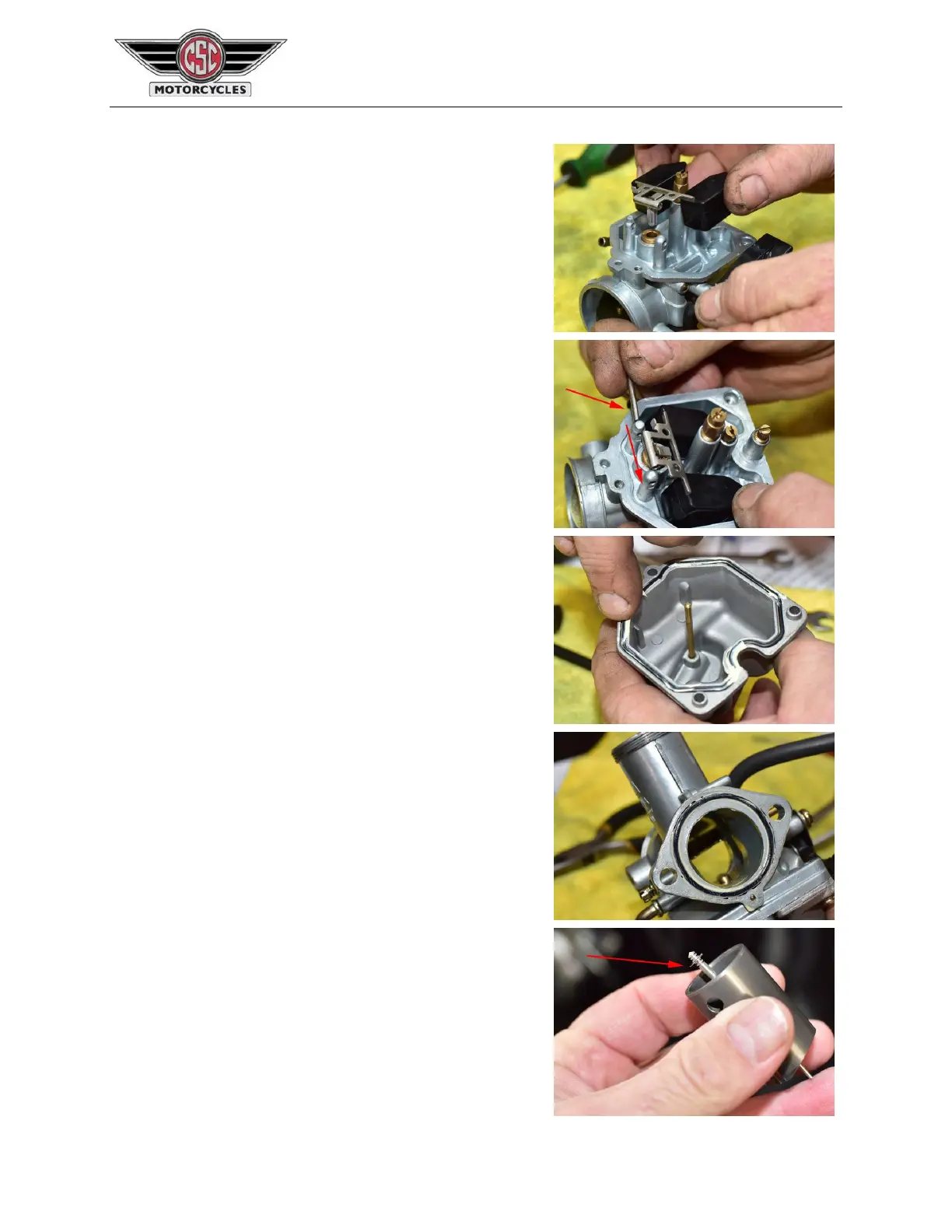

Lowering the float valve into the carburetor body.
Guide the float pivot shaft through the carburetor body
tangs’ drilled pivot points and the float.
Reinstall the O-rings on the float body and the carburetor
body. We apply a light coating of grease to the O-rings.
Apply a light coat of grease to the carburetor body O-ring.
Reinstall the carburetor slide assembly. The carburetor slide
assembly includes circlip that attaches the needle to the
slide, as shown in the photo blow. Positioning the needle
higher in the slide will enrichen the air fuel mixture;
positioning the needle lower in the slide will cause the
engine to run leaner.
