15. SERVICING THE ELECTRICAL SYSTEM
Ex2900 / 3200 Operator's Manual
■ Replacing the Headlight Bulb
IMPORTANT: Avoid damage.
●NEVER touch the headlight bulb with bare fingers,
otherwise, the bulb may fail prematurely. When
inspecting or replacing the bulb, use gloves or a piece of
cloth to handle the bulb.
1. Park your tractor safely.
2. Stop the engine and remove the key.
3. Raise the hood.
4. Remove the clips that hold the front hood to the frame.
5. Carefully remove the hood from the mounting studs.
To do so, move the top of hood forward.
6. Disconnect the tractor wire harness from the electrical
connector of the failed headlight bulb assembly.
7. Remove the boot and retaining ring.
Avoid personal injury:
●The halogen light bulb contains compressed gas. If
the glass has been scratched or is dropped, the bulb
may shatter. Wear protective goggles and handle
the bulb carefully when replacing it.
8. Remove the bulb assembly from the socket.
9. Install the new bulb assembly in the socket.
10. Install the retaining ring and boot.
11. Install the wire harness to the bulb assembly.
12. Check that the headlight lights normally.
13. Lower the hood.

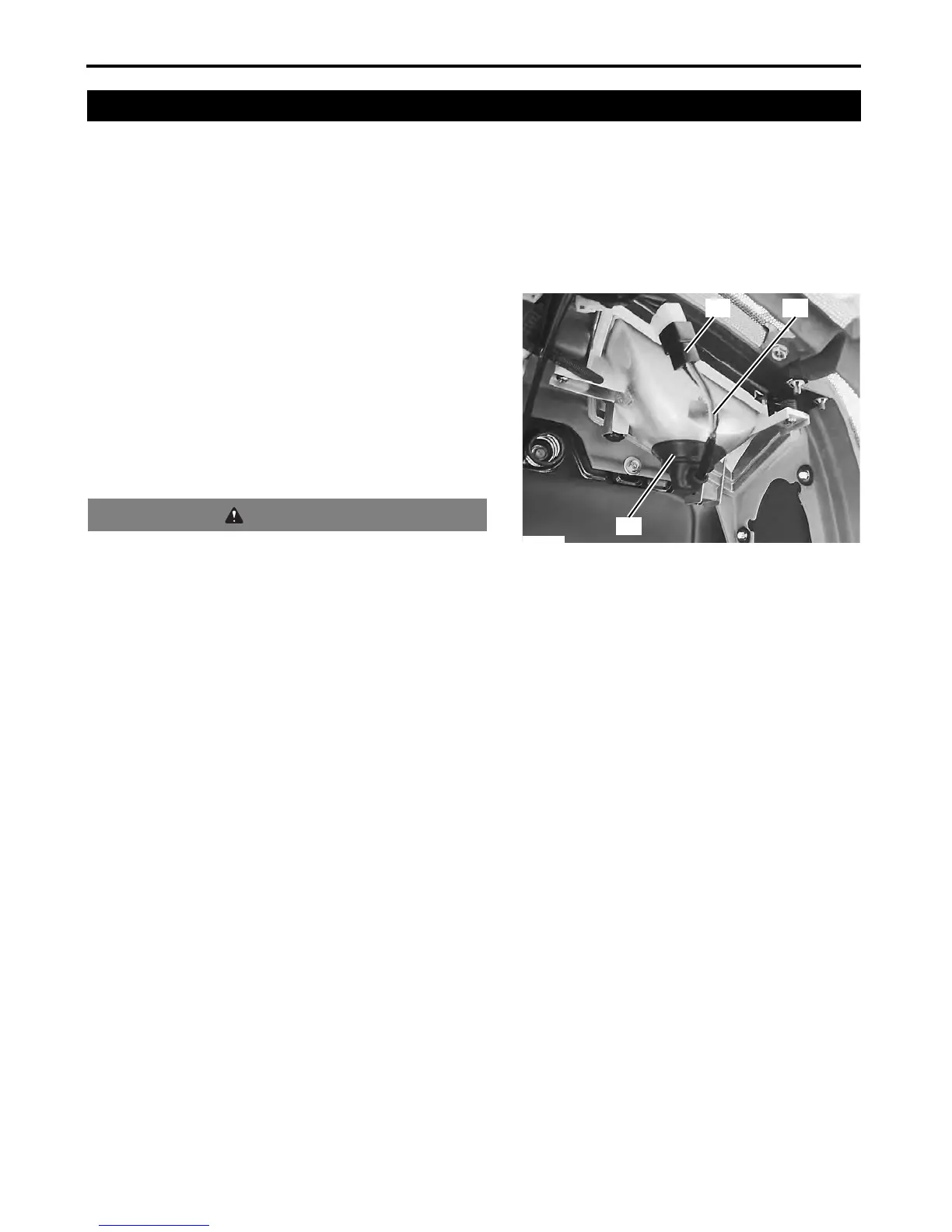

(A) Leads
(B) Boot
(C) Connector
3. Bulb
WARNING
P3013716
(C) (A)
(B)
