Cub Cadet EX2900 User Manual

14-6
14. PERIODIC SERVICE
Ex2900 / 3200 Operator's Manual

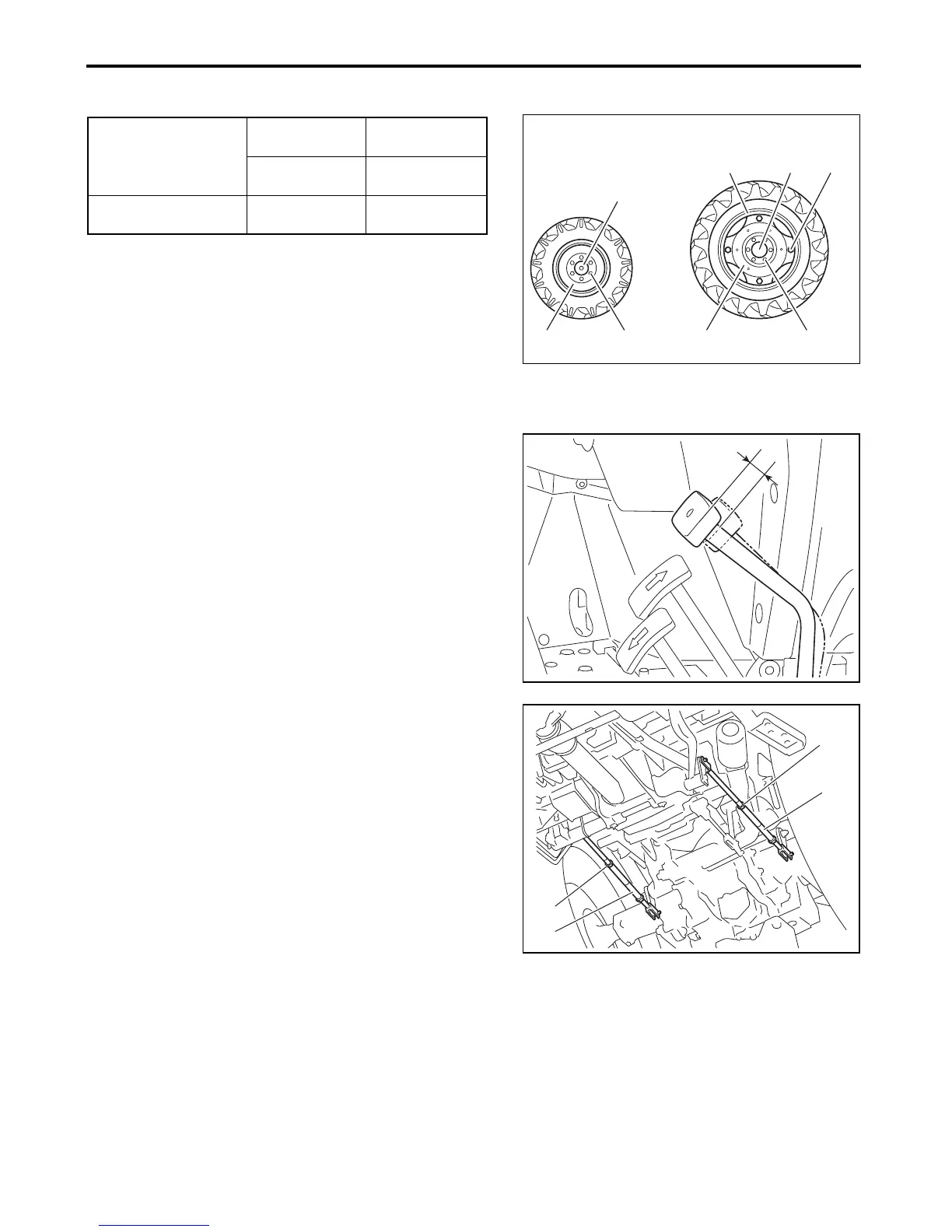

Specified Torque
(A) Rim
(B) Axle
(C) Bolt fixing the rim to the disk (Only R1 tire)
(D) Bolt fixing the disk to the axle
(E) Disk
■ Checking and Adjusting the Brake
Adjust the play of the brake pedal to 1.2 ± 0.2 in. (30 ± 5
mm).
To adjust the left brake pedal, adjust the turnbuckle on the
left brake rod assembly. To adjust the right brake pedal,
adjust the turnbuckle on the right brake rod assembly.
(A) Nut
(B) Right turnbuckle
(C) Left turnbuckle
(a) 1.2 ± 0.2 in. (30 ± 5 mm)
Bolt fixing the disk
to the axle
Front wheel 127-141 ft•lb
(172-191 N•m)
Rear wheel 123-151 ft•lb
(167-205 N•m)
Bolt fixing the rim to
the disk (Only R1 tire)
Rear wheel 146-205 ft•lb
(198-278 N•m)
Front wheel Rear wheel
(B)
(E)
(A) (B)
(E) (D)
(D)
(C)
B3013701
(a)
3013787
(A)
(A)
(B)
(C)
3013786
