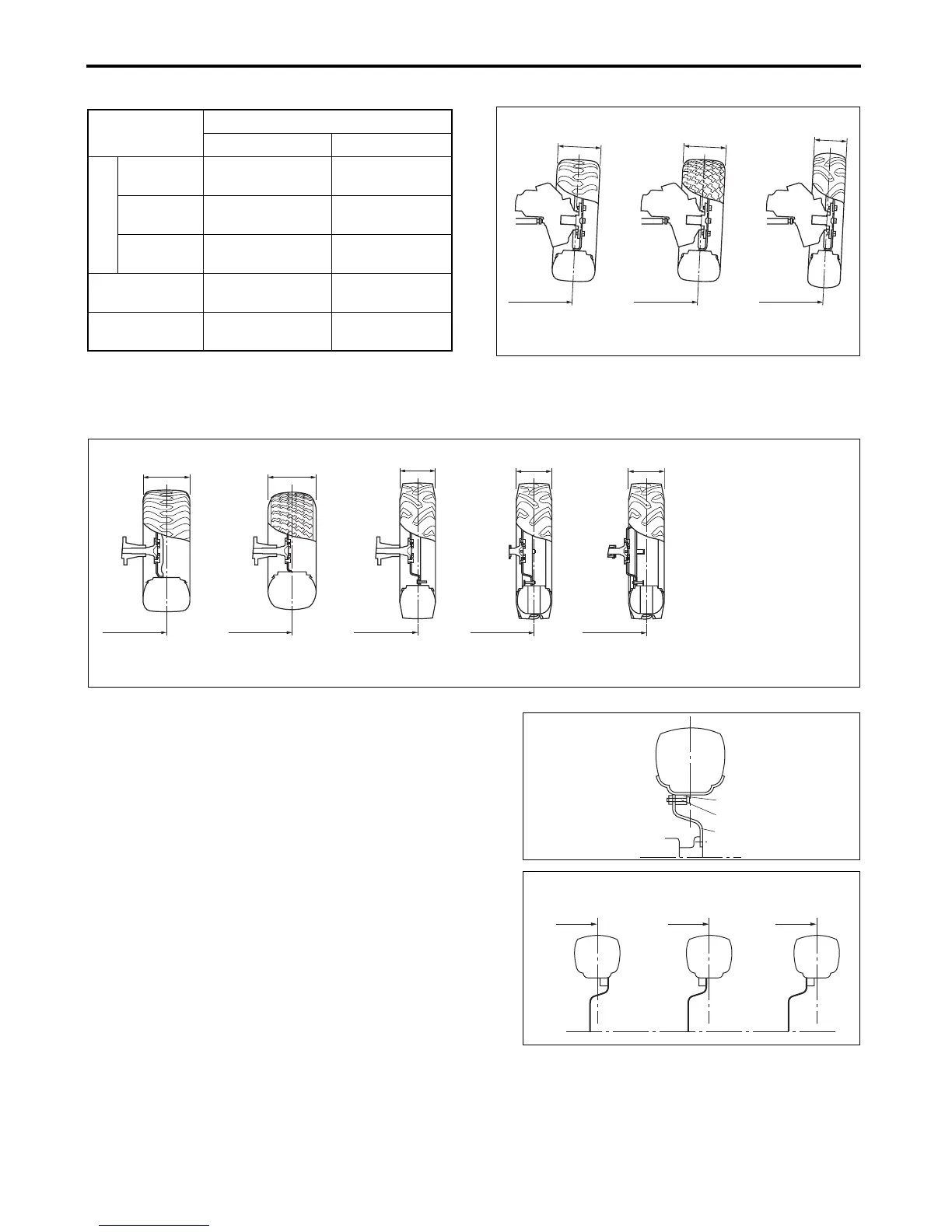

12. TIRES, WHEELS AND BALLAST
Ex2900 / 3200 Operator's Manual
■ Tread Centerline Width <Front Wheels>
Wide and extra wide are achieved by changing the
method of assembling the rims and the disk.
<Rear Wheels>
■ Adjusting the Rear Tread
The rear tread can be adjusted to any of three settings by
altering the mounting positions of the rims and disks.
(A) Rim
(B) Bolt
(C) Disk
Tire Standard Setting
Rear Front
R1 – 41.8 in.
(1061mm)
38.9 in.
(987mm)
Wide 44.8 in.
(1138mm)
–
Extra Wide 49.3 in.
(1253mm)
–
R3 40.2 in.
(1020mm)
38.4 in.
(975mm)
R4 43.9 in.
(1114mm)
38.3 in.
(974mm)
268
974
TIRE:25X8.50-14
R4
TIRE:25X8.50-14
R3
TIRE:7-14
R1
215
975
168
987
3013718
389
1114
392
1020
287
1061
TIRE:15-19.5
R4
TIRE:13.6-16
R3
TIRE:11.2-24
R1
3013719
TIRE:11.2-24
R1 Wide
TIRE:11.2-24
R1 Extra Wide
287 287
1138 1253
3013765
(A)
(B)
(C)
2016131A
1061 1138 1253
11.2-24
(mm)
