5-4
5. NAMES AND FUNCTIONS OF COMPONENTS
Ex2900 / 3200 Operator's Manual

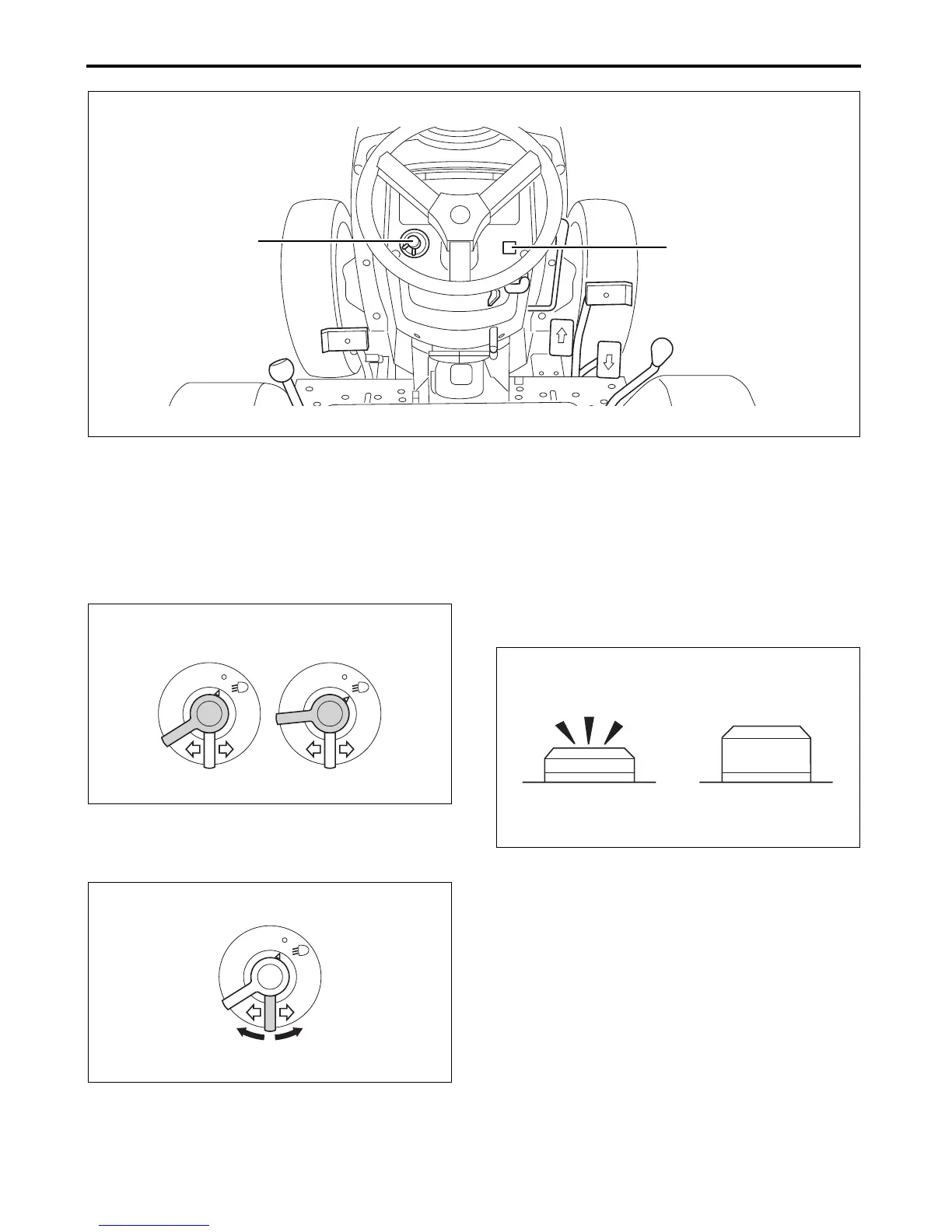

(8) Headlight / Turn Signal Switch
Use the blue lever to turn ON/OFF the headlights.
Pushing this lever up will turn the headlights ON, and
moving it down will turn the headlights OFF.
The yellow lever is the turn signal switch. To signal a
right turn, move the lever to right; to signal a left turn,
move the lever to left.
(a) OFF
(b) ON
(c) To signal a left turn, move the lever to left
(d) To signal a right turn, move the lever to right
(9) Hazard Lights Button Switch
Depress the red button to turn the hazard lights ON.
Pressing this button will cause the button to light up
and the hazard lights at the rear of tractor to flash.
(The hazard lights remain flashing even when the
starter key switch is in the OFF position. Remember
that allowing the turn signal/hazard lights to flash for
an extended period can lead to loss of battery
voltage.)
(a) ON
(b) OFF
A3013703a
(9)
(8)
3013730
(a) (b)
3013731
(c)
(d)
3013729
(a) (b)
