BRAKES
15

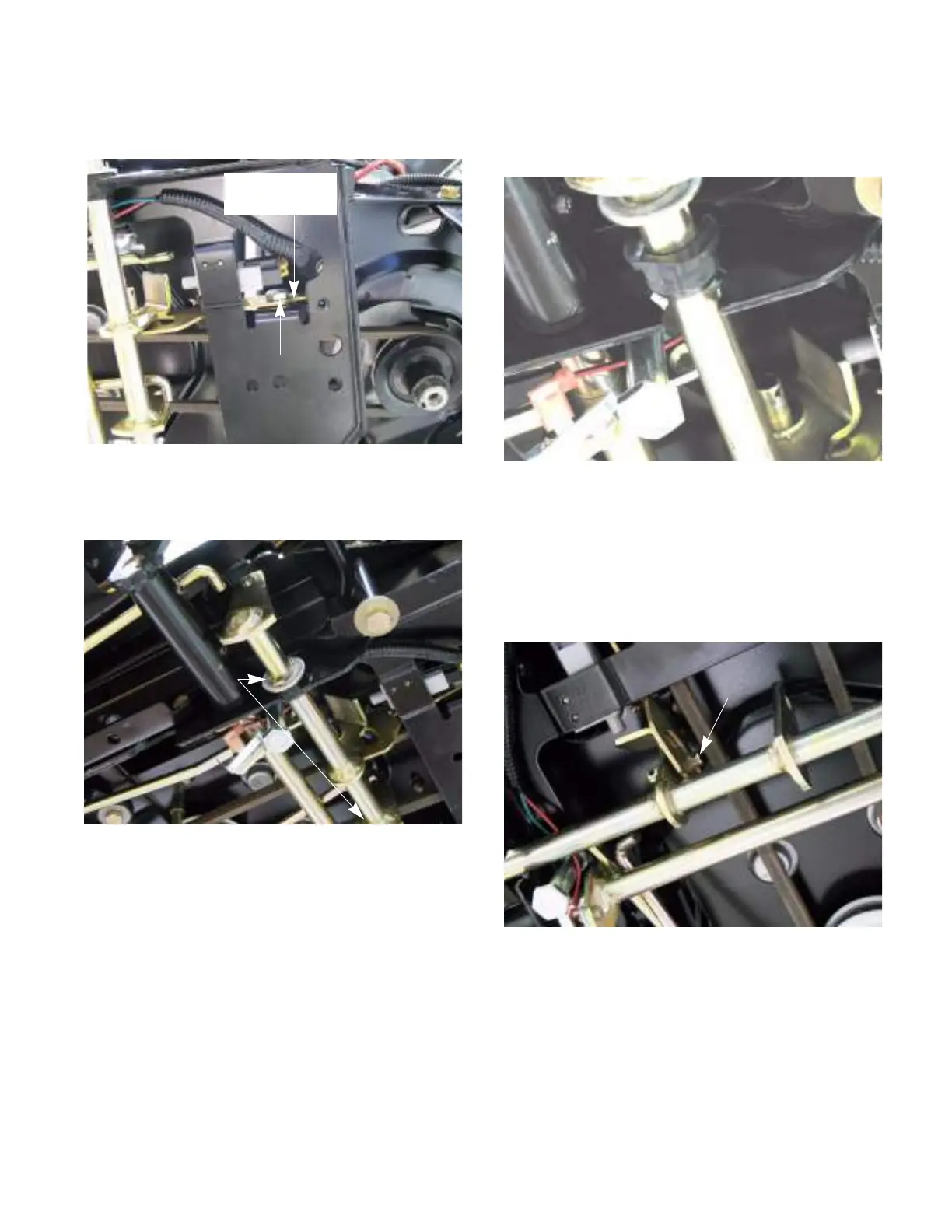

4. Loosen the shoulder bolt that the parking brake
plate pivots on. See Figure 3.21.
5. Remove the cotter pin from each end of the
brake cross shaft. See Figure 3.22.
Figure 3.21
Shoulder bolt
Parking brake
plate
Figure 3.22
Remove cotter pins
6. Slide the split bushings out of their pockets in the
sub-frame, then pull them off of the brake cross
shaft assembly. See Figure 3.23.
7. Work the brake cross shaft out of the sub frame.
NOTE: Take care not to bend the parking brake
plate while working the brake cross shaft out.
Make sure the shoulder bolt is loose enough to
give the shaft clearance. The plate can be
removed if necessary. See Figure 3.24.
8. Replace the brake cross shaft by following the
above steps in reverse order.
9. Test drive the tractor in a safe area before
returning to service.
Figure 3.23
Figure 3.24
Slide pin out of plate
To Next Page
