DRIVE SYSTEM-IVT
48
16e. Slide the reverse drive pedal shaft into the
modified hex bushing while aligning the
timing marks on the gears of the two
shafts. See Figure 5B.65.
• One mark on the fourth tooth from the bottom of
the reverse gear.
• One mark on the fourth valley from the valley of
the main drive shaft gear.
16f. Install the washer and hair pin clip.
See Figure 5B.66
17. Install the fender by following the steps
described in Chapter 4: Body/Chassis.
18. Test drive the tractor before returning it to ser-
vice.
19. Install the deck as described in chapter 8 Cutting
Decks and Lift Shaft.

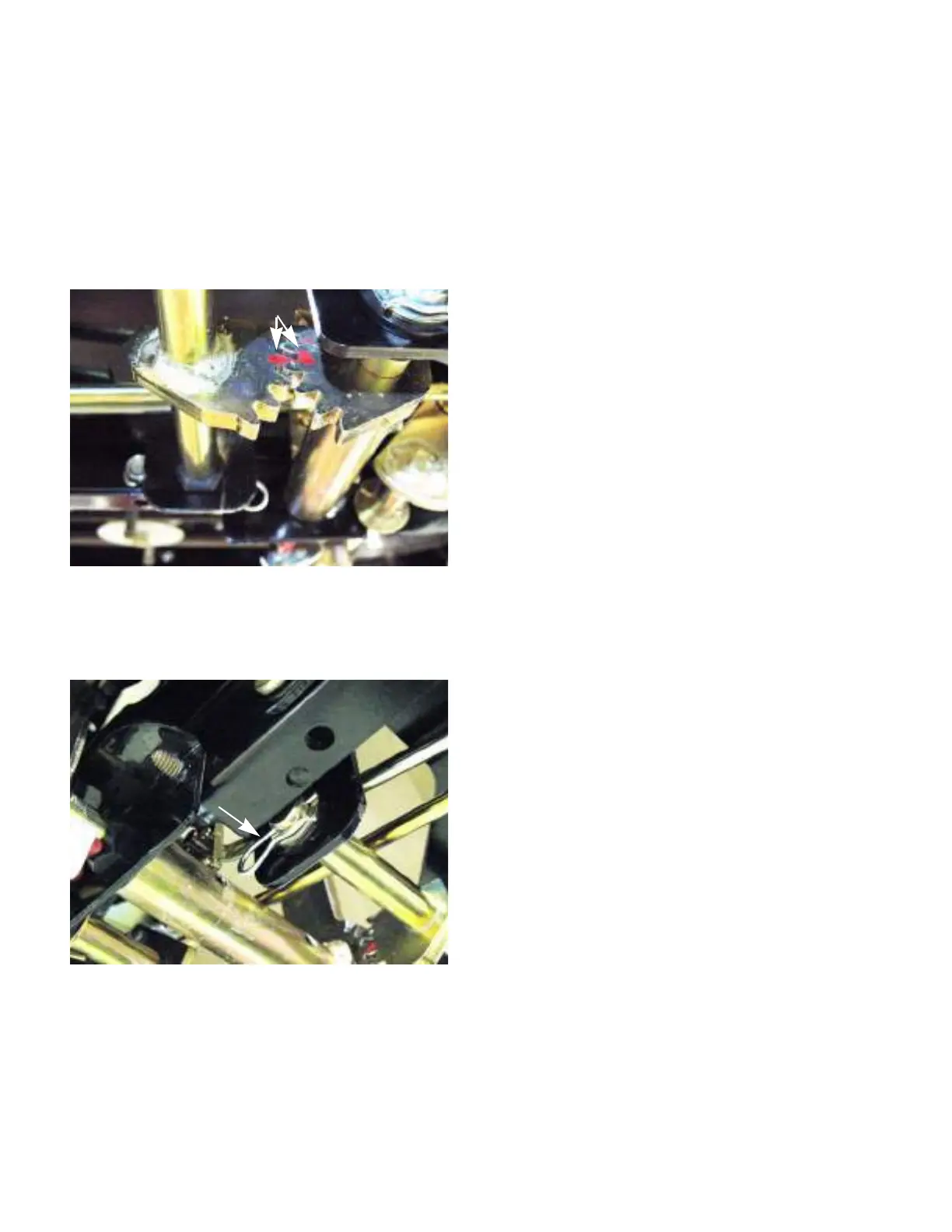

Figure 5B.65
Timing marks
Figure 5B.66
Hair pin clip
