STEERING-HYDROGEAR
60

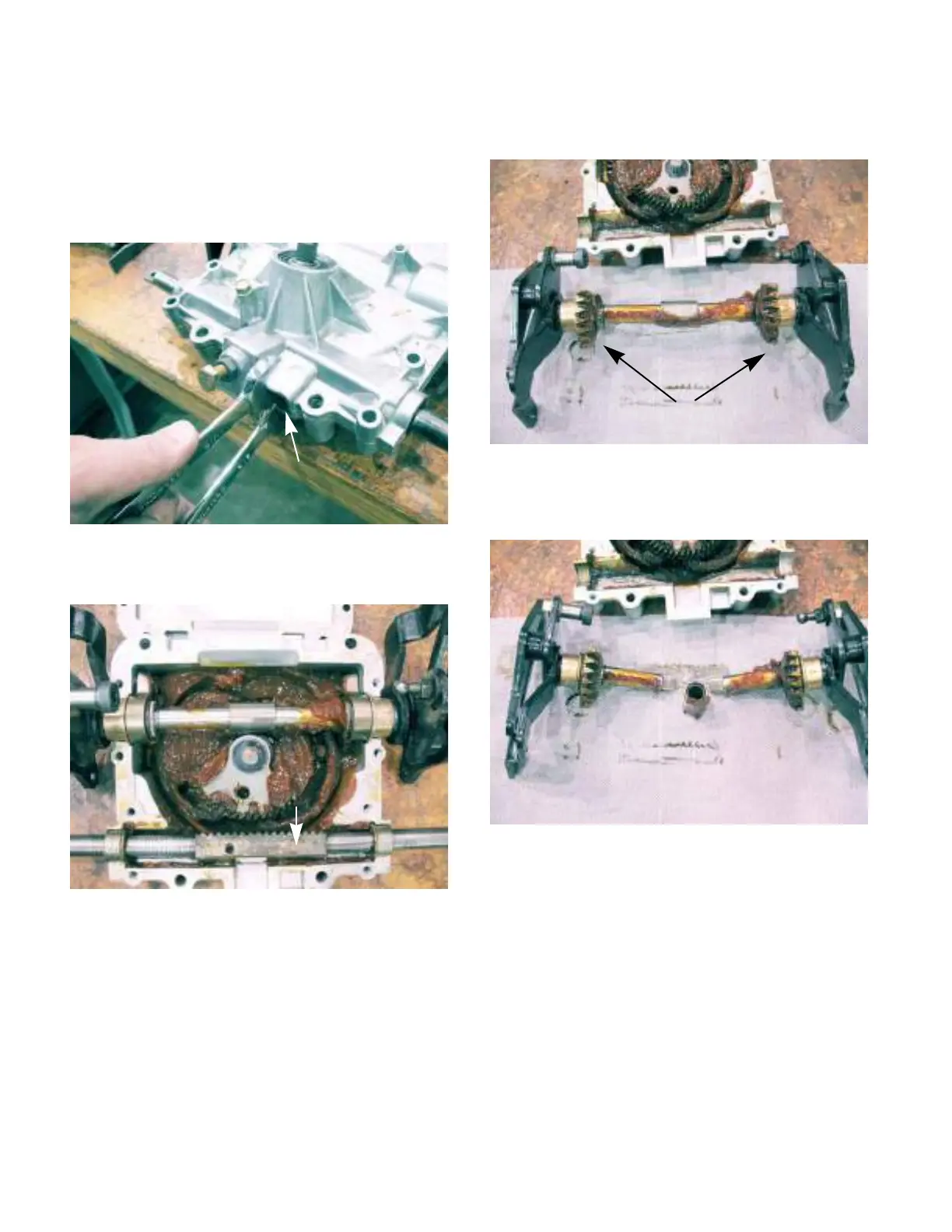

5. Lift the upper housing off of the lower housing.
NOTE: There is no sealant between the two
housings. They should easily slip apart. If they
are stuck together, there are three pry points
cast into the housings that can be used to sepa-
rate the housings. See Figure 6A.33.
6. Remove the steering rack. See Figure 6A.34.
7. Remove the speed cam assemblies.
See Figure 6A.35.
8. Separate the speed cam assemblies.
See Figure 6A.36.
Figure 6A.33
Using one of the pry
points to separate the
housings.
Figure 6A.34
Steering
rack
Figure 6A.35
Speed cam assemblies
Figure 6A.36
