STEERING-HYDROGEAR
65

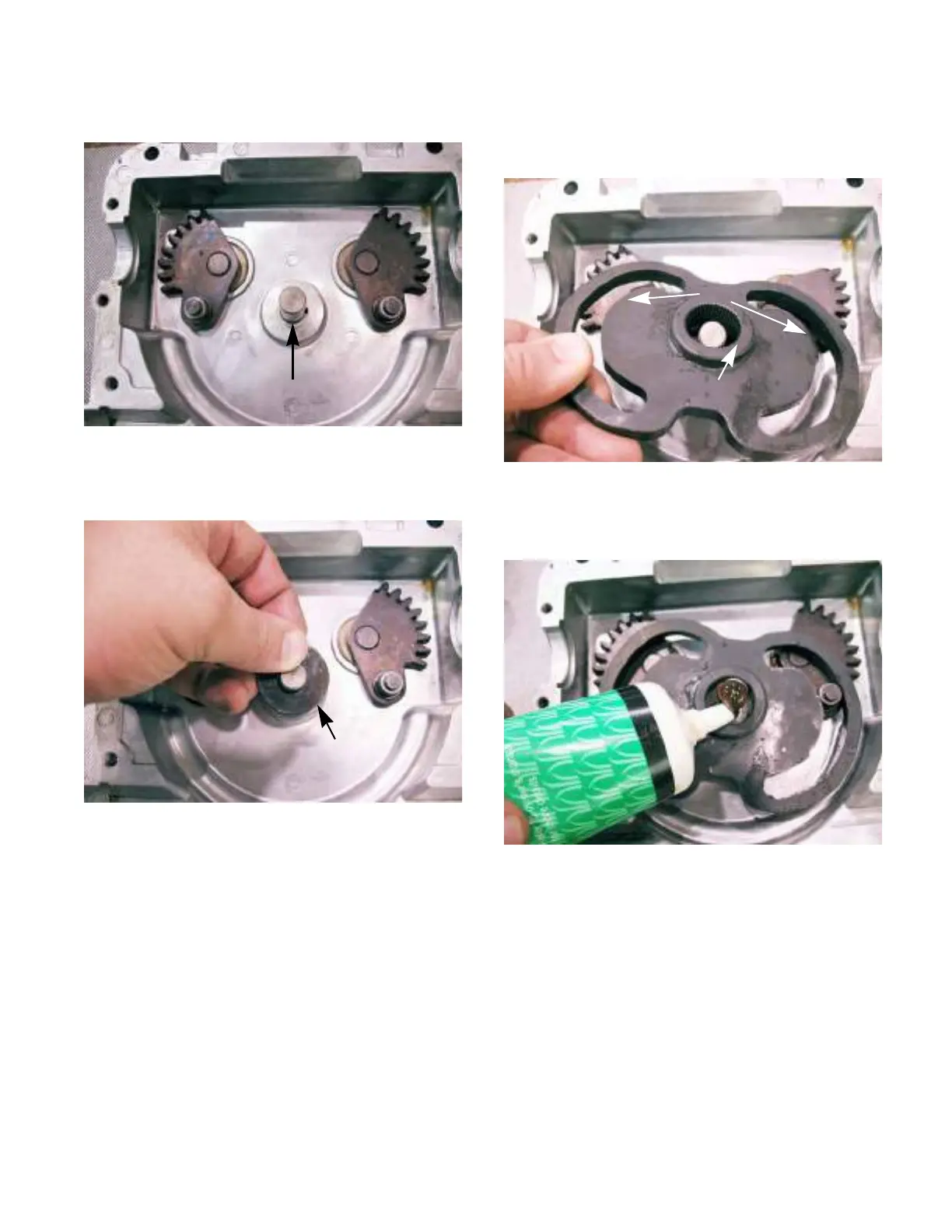

3. Insert the steering shaft. See Figure 6A.53.
4. Place the large washer over the steering shaft.
See Figure 6A.54.
Figure 6A.53
Steering shaft
Figure 6A.54
Large washer
5. Install the internal cam with the shoulder facing
up. The bevel gear rollers in the slots.
See Figure 6A.55.
6. Apply a dab of 737-0300A Durina
TM
grease to
the side of the steering shaft. See Figure 6A.56.
Figure 6A.55
Shoulder
Slots
Figure 6A.56
