STEERING-HYDROGEAR
68

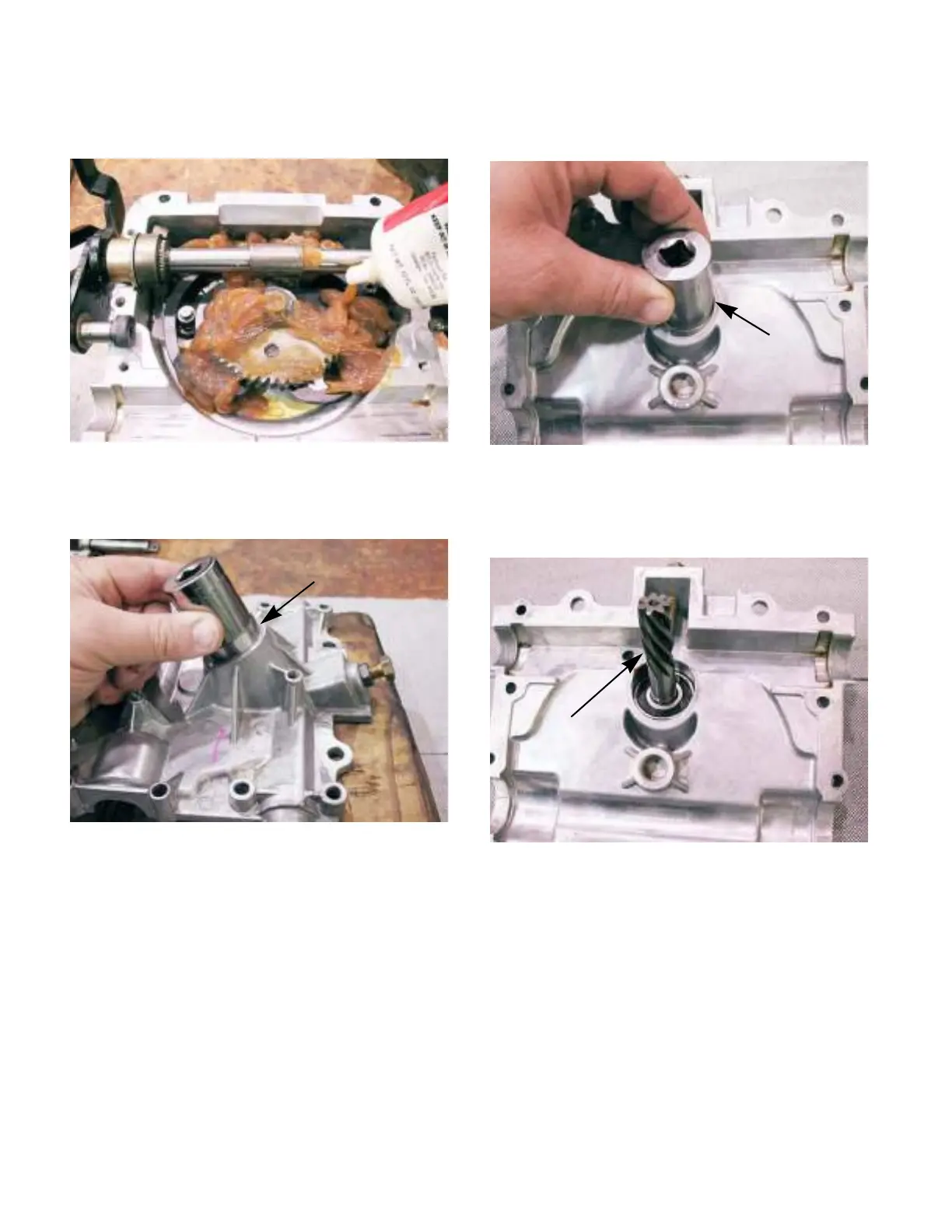

12. Fill the lower housing with 12 oz. of 737-0300A
Durina
TM
grease. See Figure 6A.65.
13. Press in the upper ball bearing into the upper
housing. See Figure 6A.66.
14. Press the lower ball bearing into the upper hous-
ing. See Figure 6A.67.
15. Insert the input shaft thought the ball bearings
from the inside of the steering gear box.
See Figure 6A.68.
Figure 6A.65
Figure 6A.66
Press in the upper
ball bearing
Figure 6A.67
A socket can
be used to press
in the ball bearing
Figure 6A.68
Inset the
input shaft
To Next Page
