X
7
10A250VAC
Saturated Remote SpeedA SpeedB Stop
Digital Single Phase Asynchronous
Motor Controller
Voltage V
On Delay
s
Soft Start s
Delay s
SDMC20-S
Connect the
controller side first

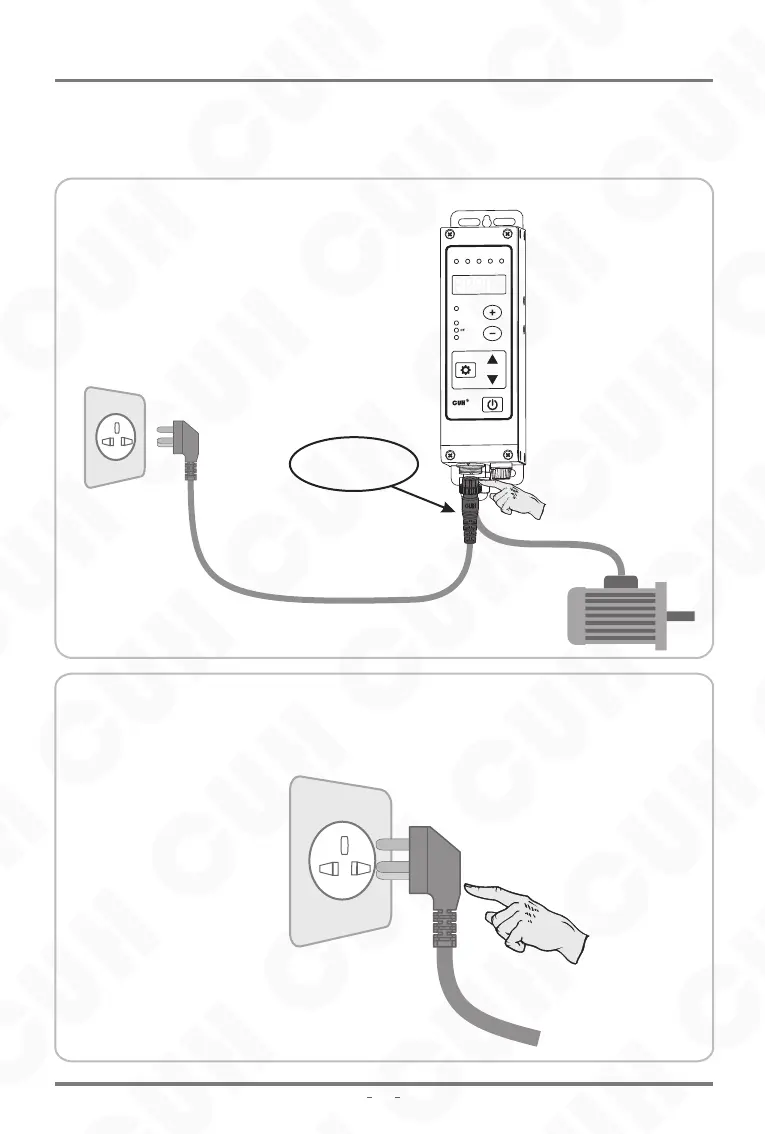

Step Three:
Connect the plug of the Input Power Cable to the mains jack.
Step Four:
Connect the Connector of the Input
Power Cable to the Input Power Socket
of the controller.
Output Cable
SDMC20-S
