4.2 Soft Startup/Shutdown Time
When the controller starts from stop , the motor speed can be gradually increased
to the set value to prevent the motor and the controller from being impacted.
Soft Startup Time (t): When the controller starts from the stopped state, the time
required for the motor speed to smoothly increase from 0 to the set speed is called
the soft startup time.
Saturated Remote SpeedA SpeedB Stop
Digital Single Phase Asynchronous
Motor Controller
Voltage V
On Delay s
Soft Start s
Delay s
SDMC20-S
t means
Soft Startup Time
Soft Start Indicator
8
to enter the basic parameter
interface.

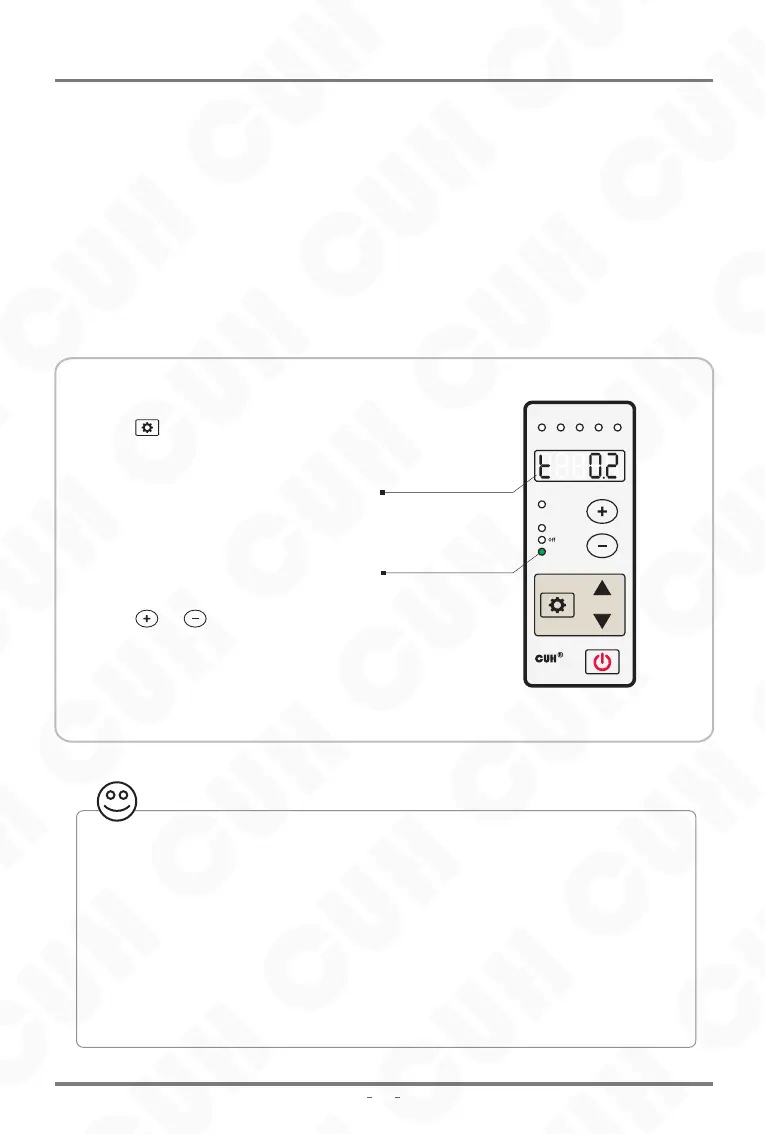

8Press ▲ or ▼ to switch to soft
startup parameter "t" and the
default value 0.2.
8Press or to adjust the
parameter value.
Press and hold for 2 seconds
When the controller is stopped from the running state, the motor speed
can be gradually reduced to 0 to prevent the motor and controller from
being impacted.
Soft Shutdown Time ( ): When the controller stops from the running
state, the time required for the motor speed to smoothly decrease from
the set value to 0 is called the soft shutdown time.
The operation method and parameter range of the soft shutdown time are
consistent with the soft startup time.
t
SDMC20-S
SDMC20_SMS-EN_2.01
Digital Single Phase Asynchronous Motor Controller
2023-11
