5.8 Parameter Monitoring Function
Saturated Remote SpeedA SpeedB Stop
Digital Single Phase Asynchronous
Motor Controller
Voltage V
On Delay s
Soft Start s
Delay s
SDMC20-S
Example:
S. means Speed
reference value
The controller can monitor some operating parameters, provide reference for
operators, and facilitate debugging.
The monitoring parameters of this controller include:
Analog speed regulation F port voltage FU, Intelligent photoelectric E port
signal difference EU, Sensor A port signal voltage AU, Sensor D port signal
voltage dU, Control output C port output voltage CU, 24V port voltage nU,
Speed reference value S. .

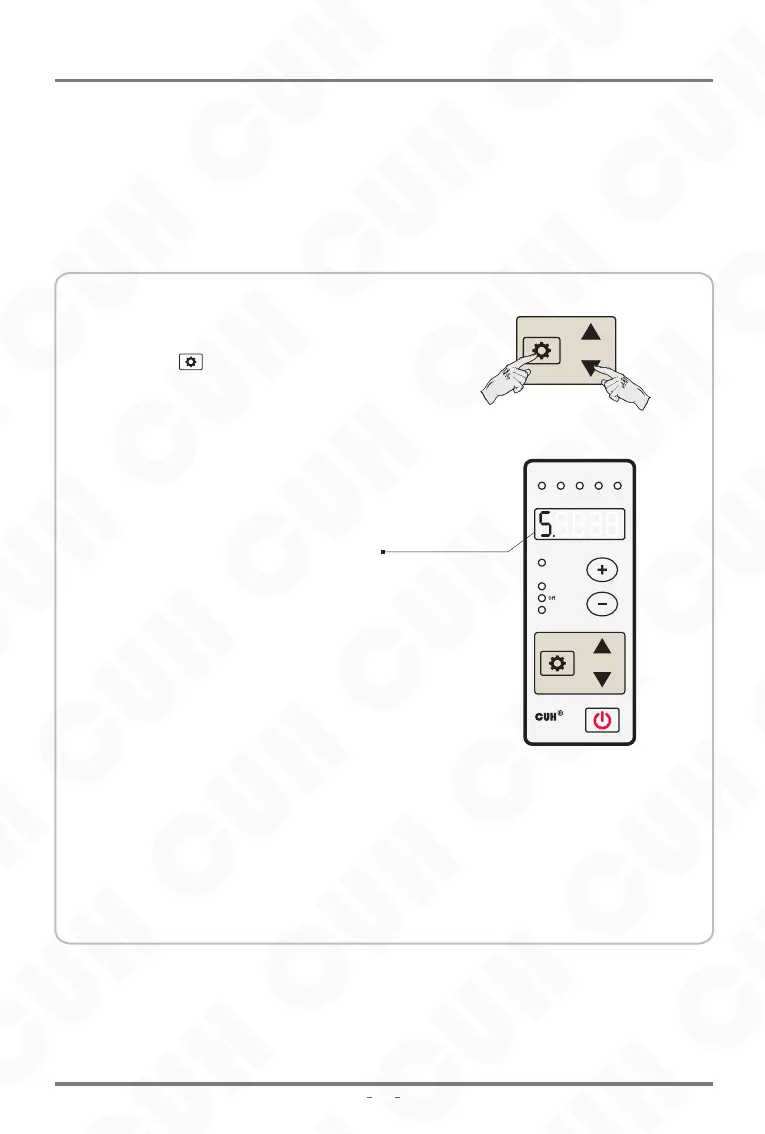

8 Long press and ▼
simultaneously to enter the
monitoring parameter interface.
8Short press or ▼ to select the
parameter to be monitored.
8The parameter value of the
monitoring parameter cannot be
modified.
▲
