13
SensorⅡ
Preset
Ctrl Out
SensorⅠ
Photosensor
Speed Ctrl
A1
A2
A3
B1
B2
B3
B4
C1
C2
D1
D2
D3
E1
E2
E3
E4
F1
F2
F3
5.1 Remote Speed Control
This chapter introduces how to use the advanced functions of the controller.
The controller supports external analog signal to control output voltage,
analog signal supports potentiometer, 1~5V voltage, 4~20mA current.

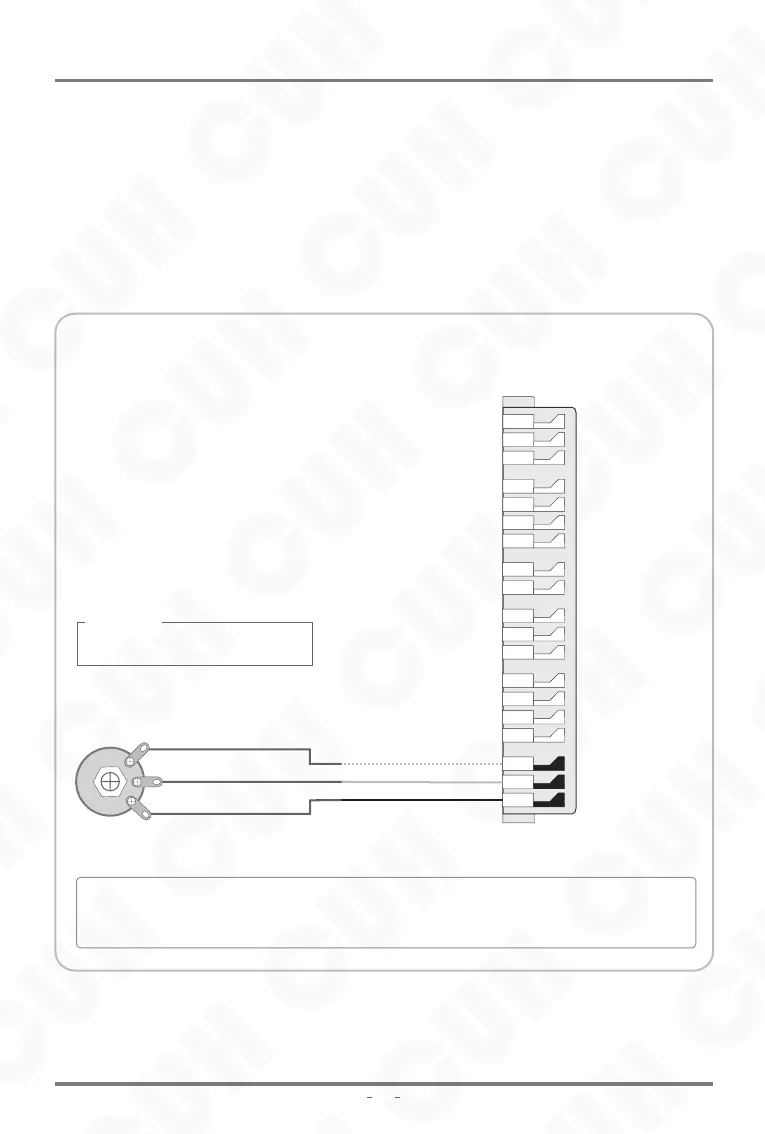

Potentiometer control connection
Suggest：
Please use a 1K linear potentiometer
When the remote speed control signal takes effect, the speed control indicator
lights on, at the same time regulating the voltage on the panel will fail.
Remote speed control resistive ground
Remote speed control input
Remote speed control power supply+5V
Chapter Ⅴ Advanced Function Description
SDMC20-S
SDMC20_SMS-EN_2.01
Digital Single Phase Asynchronous Motor Controller
2023-11
