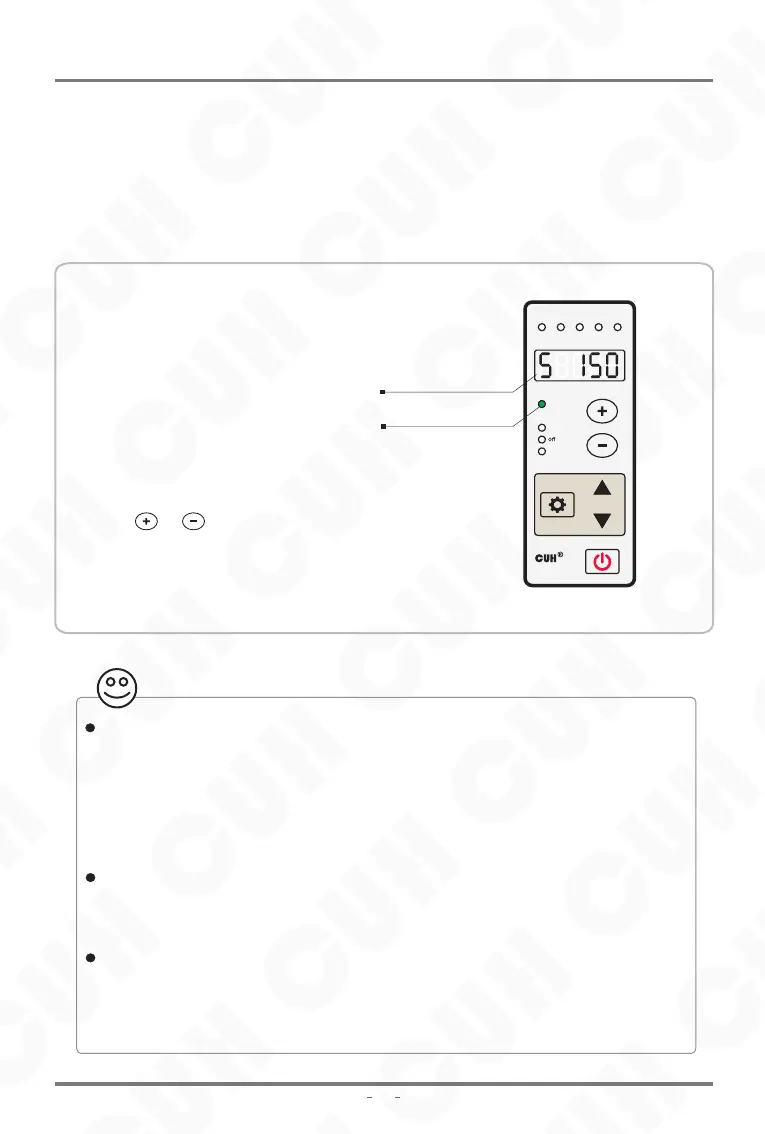

4.1 Output Voltage (Speed) Setting

Chapter Ⅳ Basic Function Description

This chapter introduces basic of the controller.functions

Saturated Remote SpeedA SpeedB Stop

Digital Single Phase Asynchronous

Motor Controller

Voltage V

On Delay s

Soft Start s

Delay s

SDMC20-S

S means

Set Speed

Voltage Indicator

controller.

8The controller enters the set speed

parameter. The voltage indicator

lights up, and the LED display set

speed parameter S and the default

value 150.

8Press or to adjust the

parameter value.

Turn on the power switch of the

The default control object of the controller is closed-loop motor mode, and

the panel display S is the reference speed of the motor, not the actual

speed. The adjustment range of "S is 0-999, and the default maximum

value is 300. When it is adjusted to 300, the saturation light does not light

up, and the maximum speed parameter h. can be further set to increase

the speed.

When the parameter SF is set to 0 (vibration plate) or 1 (motor open loop),

the interface displays parameter U, which is the rectified average value of

the output voltage.

The controller does not have a boost function. When the controller cannot

reach the set voltage due to the limitation of the input power supply

voltage, the saturation indicator will light up, and the mains voltage

compensation will fail at this time.
