108 Culligan® Series G1 Reverse Osmosis

108 Cat. No. 01021713

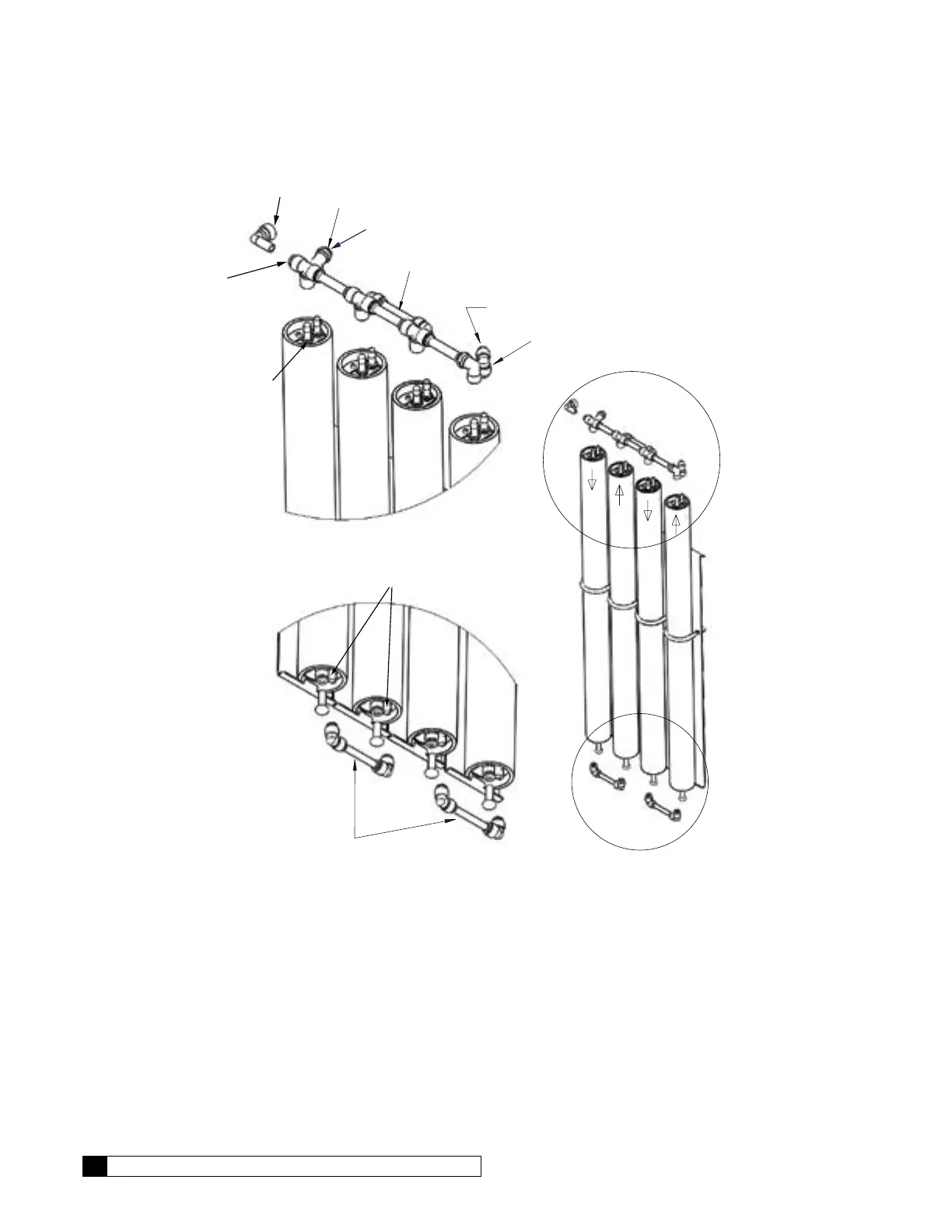

4L Tubing Assembly Instructions, 230V

NOTE DIRECTION OF FLO

REMOVE CAPS

ON 10mm STEMS

INSERT FEED FITTING

ASSEMBLIES OVER 10mm STEMS

(BOTTOM SIDE OF MEMBRANES)

USED FOR FLOOR STAND APPLICATION

REMOVE CAPS

ON 10mm STEMS

10mm TUBE FOR FEED

10mm TUBE FOR

RECIRCULATION/WASTE

INSERT 10mm ELBOW

OVER 10mm STEM

INSERT 10mm ELBOW

OVER 10mm STEM

INSERT FEED FITTING

ASSEMBLY OVER 10mm STEMS

10mm TUBE FOR PRODUCT

Figure 60. RO 4L tubing assembly instructions, 230V.

Table of Contents3
Units of Measure Conversion: U.S. to Metric4
About this Manual5
Introduction5
G1 RO Features6
G1 RO Series Specifications8
G1 RO System Configurations9
- Unpacking10
- Materials Required10
- Location10
G1 RO Installation10
- Assembly11
- Concrete Wall Installation11
- Wall Mounting Kit11
- Stand Mounting11
- Pump/Motor Panel12
- Fittings12
- Prefilter Cartridge12
- Feed Flow Meter13
- Membranes13
- Tubing Configuration14
- Plumbing Installation15
- Concentrate Water Connections15
- Feed Water Connections15
- Product Water Connections16
- Tubing Assembly Instructions17
- Pressurized Storage Tank22
- Non-Pressurized Product Water Storage Tank22
- Direct Feed22
- Program Data Input23
GBE RO Controller Program Data23
- Setting up Date and Time24
- Select Language24
- Serial Number24
First Time Setup24
- Other First Time Setup Settings25
- Completed First Time Setup25
- Menu Lockout26
- Menu Default—Rerun First Time Setup26
- Flow Meters26
- Flow Meter Settings29
- Product Flow Calculations30
- Normal Operation30
- Switch Inputs31
- Low Pressure Switch31
- Pretreatment Lockout31
- Wiring for Softeners and Filters with MVP Controller32
- Wiring for Softeners and Filters with GBE RO Controller33
- Float Level Control34
- Storage Tank Setup When Using both a High and Low Level Float Switch34
- Storage Tank Setup When Using a Single High Level Float Switch34
- Go to Offline35
- Go to Running35
Basic Operation35
- Set up Time/Date36
- Time/Date Settings36
Setup36
- Set up Language37
- Flush Modes38
- Startup Flush38
- Standby Flush38
- Permeate Flush39
- Flow Trigger Flush39
- Quality Flush39
- Time Trigger Flush39
- Flush Mode Setup40
- Flush Mode Settings41
- Switch Inputs Programming43
- Switch Inputs Settings43
- Wireless Remote45
Accessories45
- Wireless Remote Setup46
- Wireless Remote Settings46
- GBE-Wireless Communication Setup47
- Check Signal Strength between the GBE RO Controller and Remote48
- Modem49
- Installing the Modem on the GBE RO Controller Board49
- Installing the Modem in the Remote50
- GBE RO Controller Modem Setup50
- GROC Modem Settings51
- Test Modem52
- Modem Setup from Remote Display53
- GBE RO Controller Modem Settings (on Remote)53
- TDS Programming54
- TDS Probe Settings54
- Alarm Outputs55
- Alarm Relay Board55
- Relay Mode Settings56
- GROC Alarm Signal Output56
- Multiple Unit Ros57
- Two-Pass RO57
- G1 Series Two-Pass Pairings57
- Duplex-Alternating RO Mode58
- RO Duplex Alternating Plumbing59
- Alternating RO Unit Settings60
- SV3 (Solenoid Valve) Mode/Tds Target61
- Setting Error Limits62
- Information Settings64
System Operating Information64
- Serial Numbers66
- Troubleshooting66
Service and Maintenance66
- Error Codes67
- Cat. No.67
- Test Phone Line68
- Diagnostics68
- Test Wireless Remote68
- Possible Results69
- Use Data Port69
- Test App69
- Prefilter Cartridge Replacement70
- Membrane Replacement70
- Pump Replacement71
- Motor Replacement72
- Prepare Equipment for Sanitizing73
- Sanitizing Modules73
- Service the Filter and Tubing74
- Draw the Sanitizing Solution through the Unit74
- Flush the Unit74
- Testing75
- Cleaning75
- Prepare the Equipment for Cleaning77
- Clean the Tank77
- Clean Silt or Biofouling78
- Finish Cleaning Procedure79
GBE RO Controller Menu Structure80
G1 RO Parts Diagrams and Lists84
- Process Flow Diagram103
- Time Flow Diagram104
Electrical Installation105
Basic Sub-Panel Wiring Diagram106
GBE RO Controller Wiring106
Remote Display Template107
International Specifications108
Appendix A G1 RO International108
- Basic Sub-Panel Wiring Diagram, 230V109
- 2S/2L Tubing Assembly Instructions, 230V110
- 3S/3L Tubing Assembly Instructions, 230V111
- 4L Tubing Assembly Instructions, 230V112
- Reverse Osmosis125
- Rejection and Recovery125
Appendix B Basic Principles125
- Temperature Compensation126
- Feed Water Limits126
- Key Pad Familiarization127
Appendix C Menu and Key Navigation127
- Set up System Status at Startup129
- First Time Setup with Modem in Controller129
- Set up Clock Type and Time129
Appendix D Quick Programming Guide129
- First Time Setup with Quality Flush and High Level Float Switch130
- First Time Setup with Wireless Remote, High and Low Float Switches131
- Set up GROC-Remote Communication131
- Set up Float Switches131
- Set up Units of Measure/Initialize System131
- First Time Setup with Flow Trigger Flush132
- Electrical Connections133
- Reverse Osmosis System Report from GBE RO Controller133
- Culligan GBE RO Controller—Data Port Output133
Appendix E Data Port Output133
- Test the Data Port134
- Name the New Connection134
- Set the COM Properties134
- Send a Test Message from the GBE RO Controller135
Appendix F Programming Log137
Index138
