G1 RO Installation 13

Cat. No. 01021713

2S/2L Tubing Assembly Instructions

NOTE DIRECTION

OF FLOW

USED FOR FLOOR

STAND APPLICATION

1/2" TUBE FOR FEED

1/2" TUBE

FOR PRODUCT

3/8" TUBE FOR RECIRCULATION/WASTE

INSERT 3/8"X3/8" ELBOW

OVER 3/8" STEM

INSERT 1/2"X3/8" ELBOW

OVER 3/8" STEM

INSERT PRODUCT FITTING

ASSEMBLY OVER 3/8" STEMS

REMOVE CAPS

ON 3/8" STEMS

REMOVE CAPS

ON 3/8" STEMS

INSERT FEED FITTING

ASSEMBLY OVER 3/8" STEMS

(BOTTOM SIDE OF MEMBRANES)

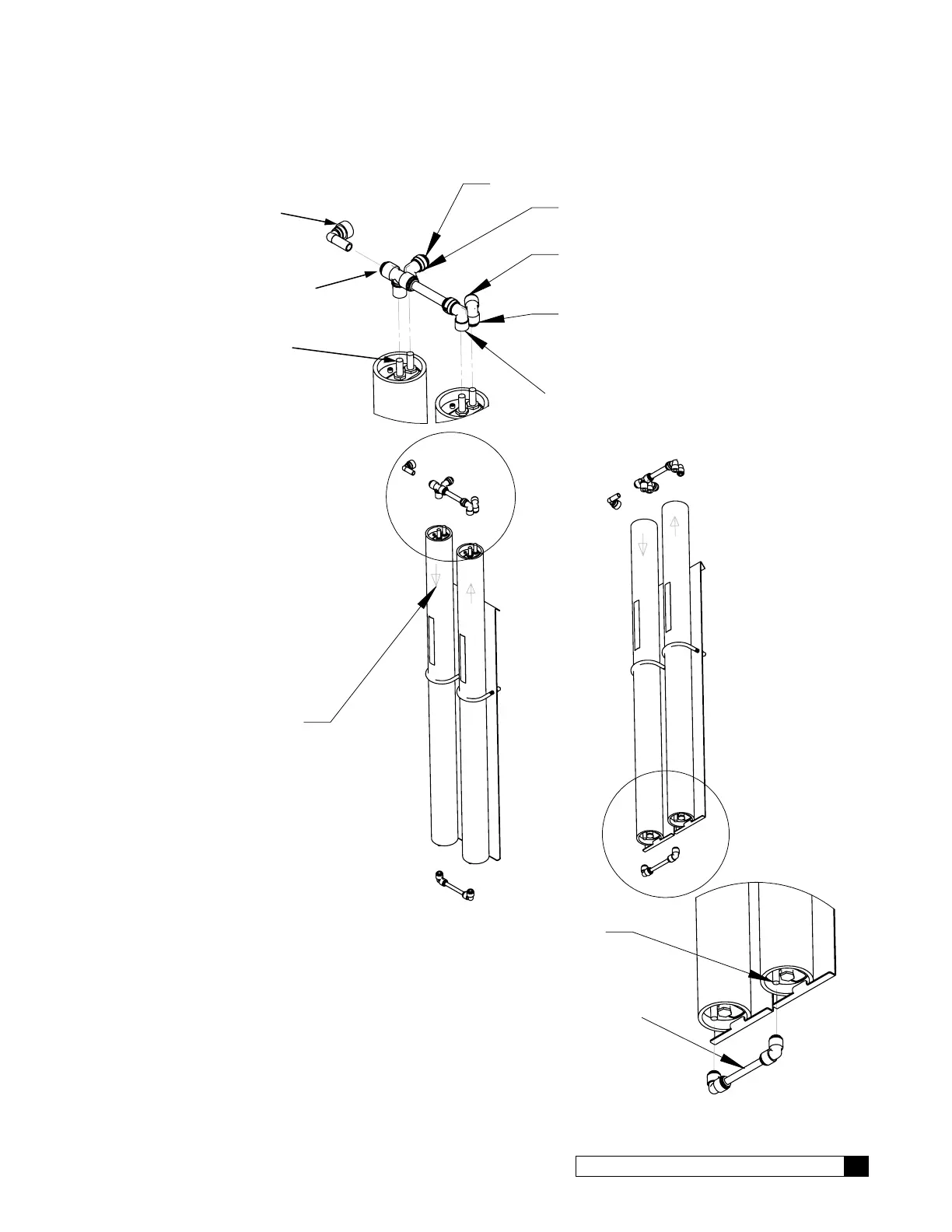

Figure 11. RO 2S/2L tubing assembly instructions.
