14 Culligan® Series G1 Reverse Osmosis
14 Cat. No. 01021713
3S/3L Tubing Assembly Instructions
NOTE DIRECTION OF FLOW
INSERT 3/8" FITTING ASSEMBLY OVER 3/8" STEM
INSERT FEED FITTING
ASSEMBLY OVER 3/8" STEMS (BOTTOM SIDE OF MEMBRANES)
3/8" TUBE FOR RECIRCULATION/WASTE
REMOVE CAPS ON 3/8" STEMS
INSERT PRODUCT FITTING ASSEMBLY OVER 3/8" STEMS
1/2" TUBE FOR FEED
INSERT 1/2"X3/8" ELBOW OVER 3/8" STEM
INSERT FEED FITTING
ASSEMBLY OVER 3/8" STEMS
REMOVE CAPS ON 3/8" STEMS
3/8 STEM ELBOWS, TO BE INSERTED INTO RECIRCULATION ASSEMBLY ON MOTOR PANEL (M1/G1-ONLY)
USED FOR FLOOR
STAND APPLICATION
1/2" TUBE
FOR PRODUCT

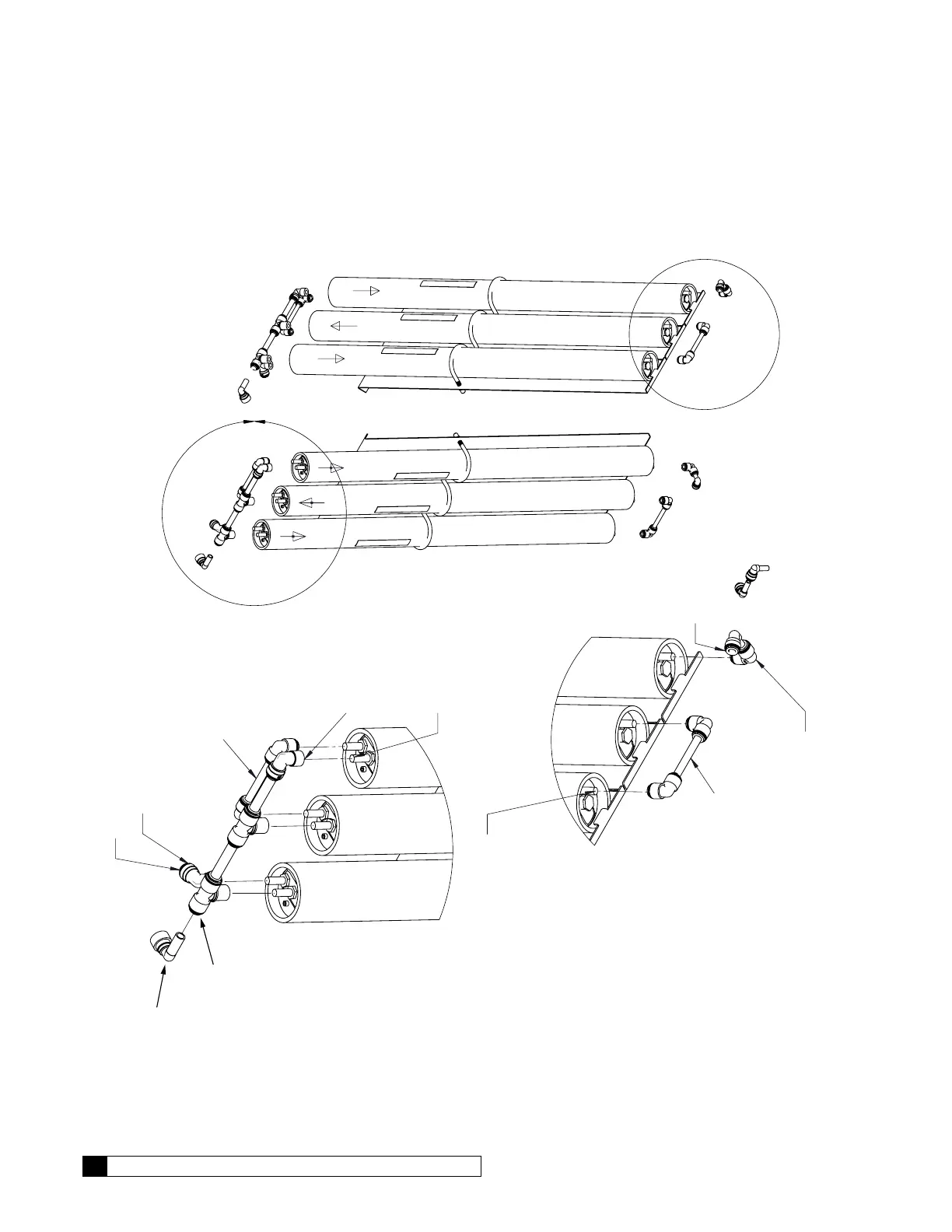

Figure 12. RO 3S/3L tubing assembly instructions.
