G1 RO Installation 15

Cat. No. 01021713

4S/4L Tubing Assembly Instructions

NOTE DIRECTION OF FLOW

1/2" TUBE FOR PRODUCT

USED FOR FLOOR STAND APPLICATION

1/2" TUBE FOR FEED

INSERT 1/2"X3/8" ELBOW

OVER 3/8" STEM

INSERT FEED FITTING

ASSEMBLY OVER 3/8" STEMS

INSERT 3/8"X3/8" ELBOW

OVER 3/8" STEM

3/8" TUBE FOR RECIRCULATION/WASTE

REMOVE CAPS

ON 3/8" STEMS

REMOVE CAPS

ON 3/8" STEMS

INSERT FEED FITTING

ASSEMBLIES OVER 3/8" STEMS

(BOTTOM SIDE OF MEMBRANES)

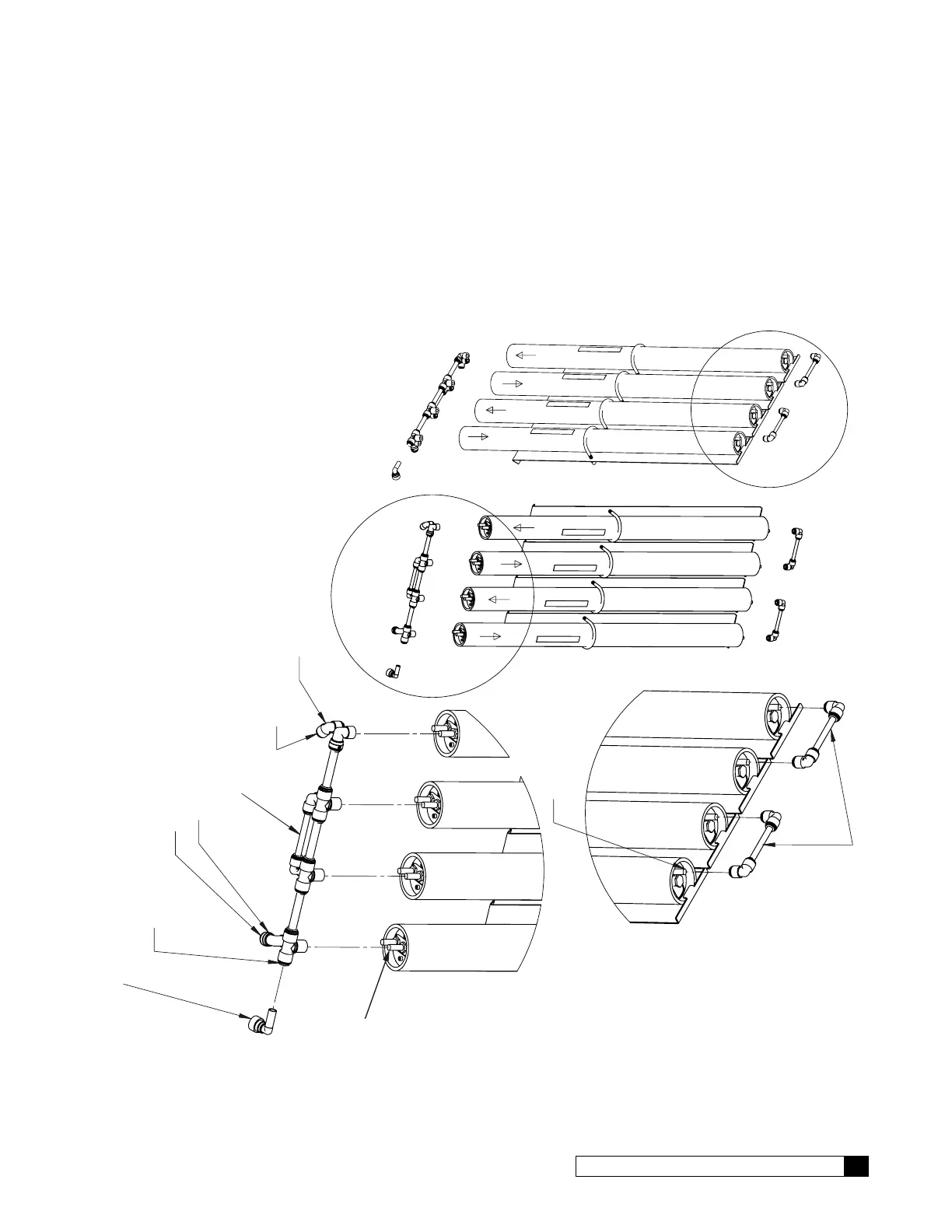

Figure 13. RO 4S/4L tubing assembly instructions.
