Culligan G1 Series User Manual

G1 RO International 115
Cat. No. 01021713
3S/3L Sub-Assembly, International
Top View
Bottom View
5
B
C
A
Note orientation
of flow
Used Only
When
Mounting
on Floor
Stand
A = to Feed Port
B = to Recirculating Assy
C = to Center Port (Product)
FEED
PRODUCT
7
6
7
2
A
A
C
C
C
3
2
1
4
1
1
1
1
A
1
1
4
4
8
For Recirculating
Assembly on
Motor Panel
7

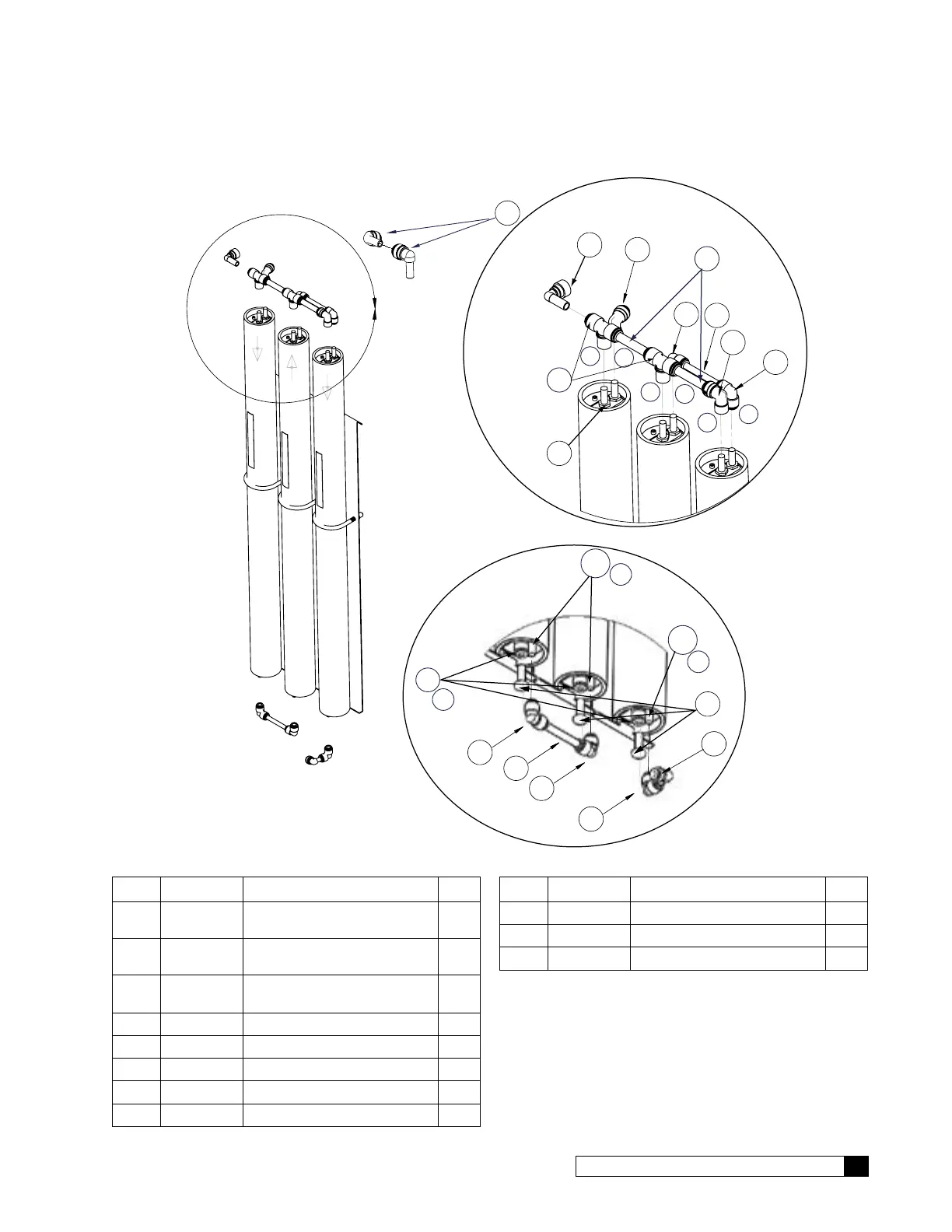

Figure 67. G1 3S/3L sub-assembly.
Item Part No. Description Qty
01025333 Assembly, Membrane Housing,
Metric, Single, 2.5"x21"
01025334 Assembly, Membrane Housing,
Metric, Single, 2.5"x40"
01025337 Kit, Tube and Fittings, Metric,
3S, 3L
(includes items 1–9)
1
— Elbow, Union, 10mm
7 EA
2
— Tube, 10mm
2 EA
3
— Tube, 10mm
2 EA
4
— Stem Adapter, 1/4BSPP, 10mm
9 EA
5
— Connector, 1/4BSPP, 10mm
3 EA
Item Part No. Description Qty
6
— Tee, Union, 10mm
2 EA
7
— Elbow,10mm Stem
4 EA
8
— Plug, 10mm
3 EA
