Culligan G1 Series User Manual

G1 RO Parts Diagrams and Lists 87
Cat. No. 01021713
Membrane Vessel
End Cap
Retaining Rings
Screws
O-Rings
FLOW
Membrane
Housing
1
2
3
4
Brine Seal

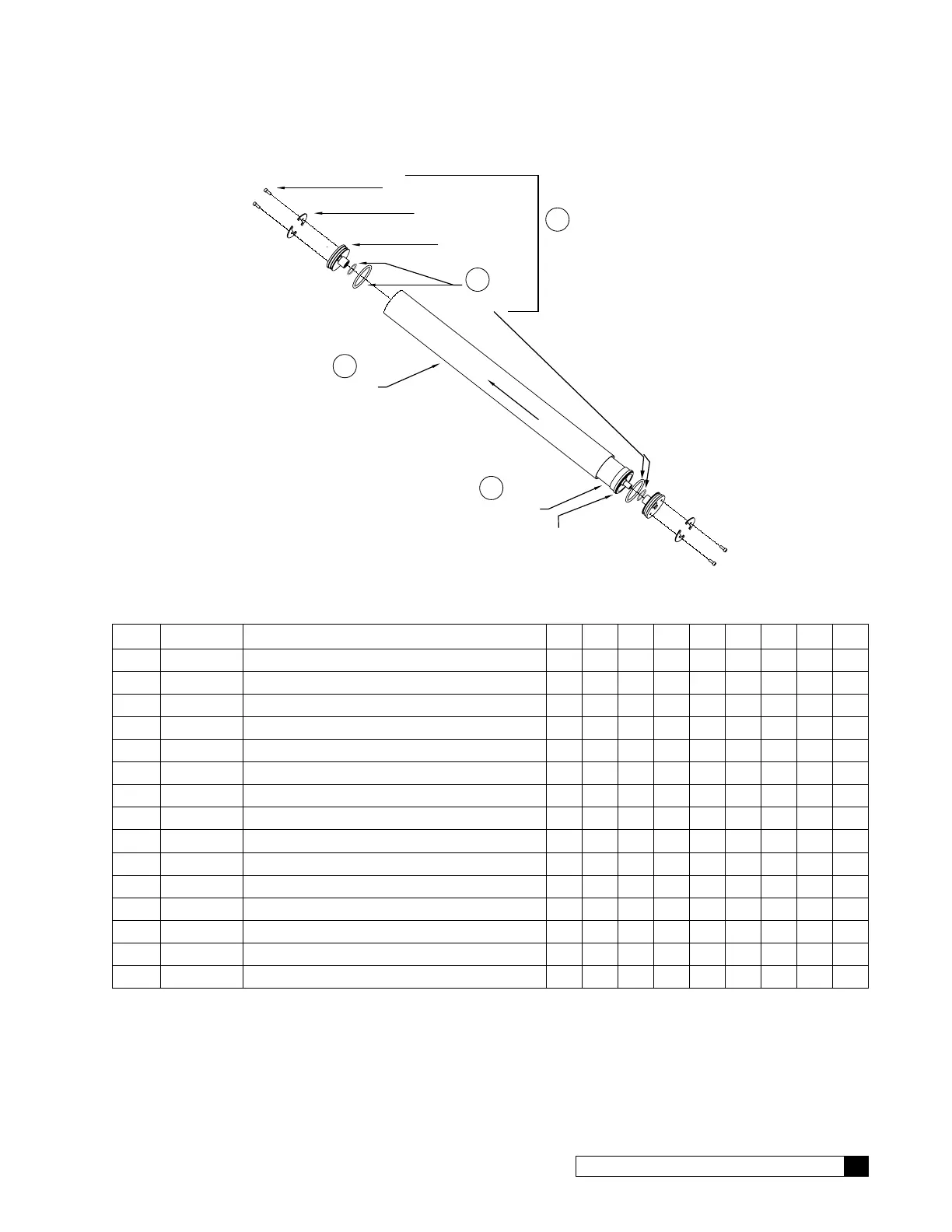

Figure 43. Membrane vessel.
Item Part No. Description 1S 2S 3S 4S 2L 3L 4L 1F 2F
01023417 Assy, Membrane Housing, Single, 2.5"x40" 2 3 4
01023412 Assy, Membrane Housing, Single, 2.5"x21" 1 2 3 4
01022875 Assy, Membrane Housing, Single, 4"x40" 1 2
1 01022666 Housing, 2.5"x21"Membrane 1 2 3 4
1 01022825 Housing, 2.5"x40"Membrane 2 3 4
1 01022877 Housing, Filter, FRP 4" End Port 1 2
2 01024288 Membrane, 2.5"x21" 1 2 3 4
2 01024289 Membrane, 2.5"x40" 2 3 4
2 01024290 Membrane, 4"x40" 1 2
3 01023071 End Cap Assy 2.5" 2 4 6 8 4 6 8
3 01023073 End Cap Assy 4" 2 4
4 01023072 O-Ring kit 2.5" 1 2 3 4 2 3 4
4 01023074 O-Ring Kit 4" 1 2
01023411 Clamps, RO Housings, 2.5" 1 2 3 4 2 3 4
01023075 Clamps, RO Housings, 4" 2 4
1
Housing assemblies do not include membranes.
