ITEM NO. PART NUMBER QTY. DESCRIPTION
14 535-004-005 1 NIPPLE, DIANOSTIC
13 345-005-007 1 BOOT, SWITCH
12 345-005-006 1 SWITCH,TOGGLE
11 535-004-007 2 CAP, NIPPLE DUST
10 535-004-010 1 NIPPLE, DIANOSTIC
9 849-008-000 1 TEE, RUN, JIC
8 842-012-000 1 ELBOW, MALE, O-RING
7 445-005-001 3 NUT,
6 470-031-000 3 WASHER, LOCK
5 415-005-048 3 CAPSCREW
4 841-012-008 4 ADAPTER, MALE O-RING
3 841-012-000 2 ADAPTER, MALE O-RING
2 00-36221-01-OA 1 BRKT, VALVE MOUNTING, PLS
1 00-36194-00-AB 1 VALVE, BODY MANUAL, PLS
HANDLE KIT #545-004-798
REPLACEMENT PART #545-004-512
1
FOR SERVICE ONLY, ADJ. RELIEF
8
3
3
2
4
410 911
657
12 13
11
4
14
FOR SERVICE ONLY: VELOCITY FUSE
REPLACEMENT PART NUMBER #545-128-001
8
BY
ECN NUMBER
SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
7
6
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
ECN RELEASE
00-36220-01-AB
ECN
ECN
ECN
ECN
ECN
ECN
ECN
ECN
00-36220-01-AB
07/11/05

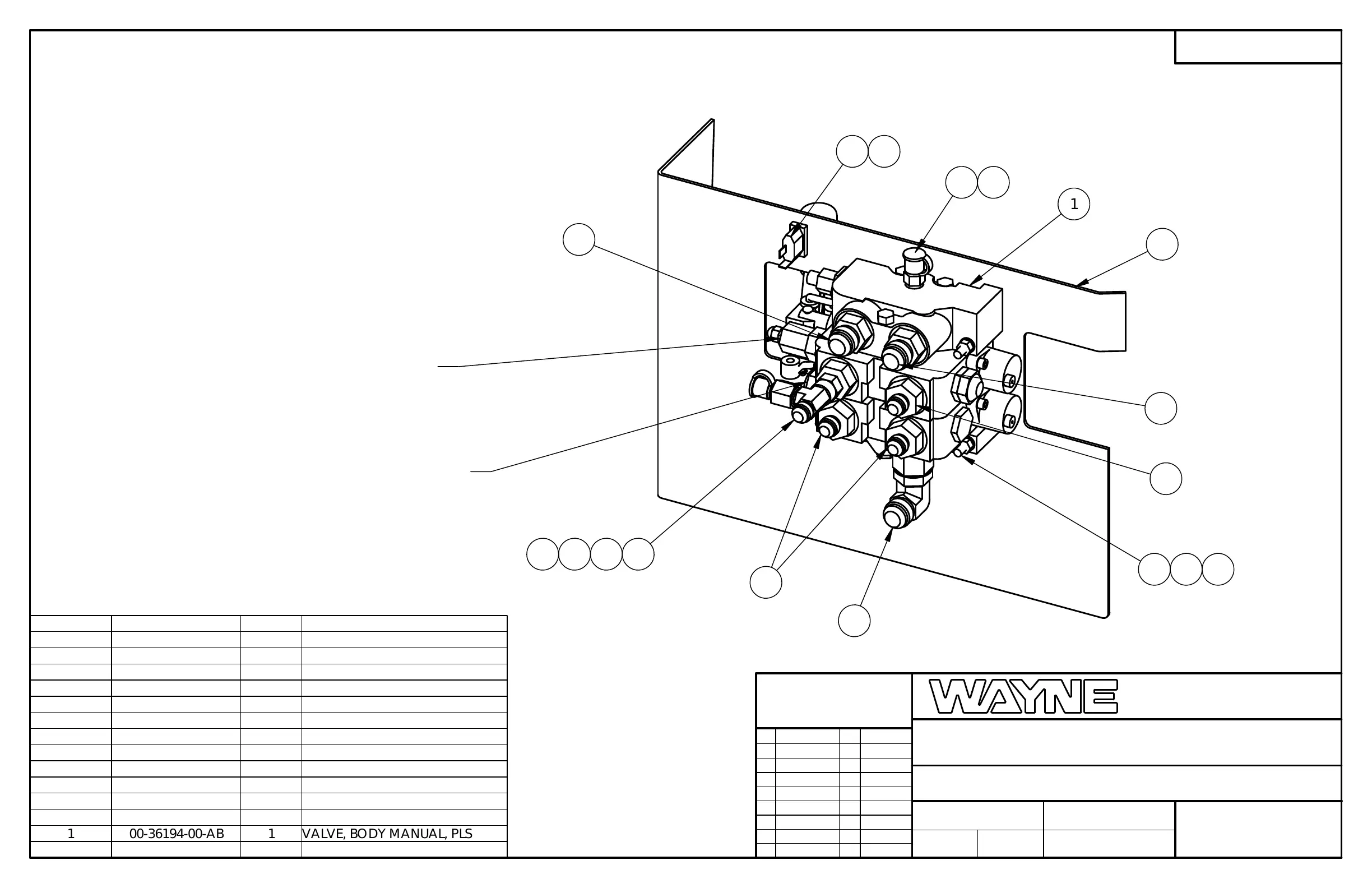

VALVE ASSY, BODY, PLS
3034
DAS
1:3
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
