ITEM NO. PART NUMBER QTY. DESCRIPTION
10 430-003-000 25 STRAP, TIE
9 345-014-009 1 SWITCH,PROX N.O. W/DEUTSCH
8 303-010-012 1 BUSHING, SNAP
7 440-029-000 1 WASHER,LOCK
6 445-006-001 2 NUT,STD
5 400-015-012 1 CLAMP, HOSE SUPPORT
4 00-36316-00-AB 1 HARNESS, BODY MAN CONTROL, PLS
3 00-32970-00-AB 1 HARNESS, POWER
2 00-32960-00-AB 1 HARNESS, CHASSIS,
1 00-36317-00-AB 1 HARNESS, BODY LIGHT, PLS
8
BY
ECN NUMBER
SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
7
6
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
ECN RELEASE
00-36320-00-AB
ECN
ECN
ECN
ECN
ECN
ECN
ECN
ECN
00-36320-00-AB
7/18/2017

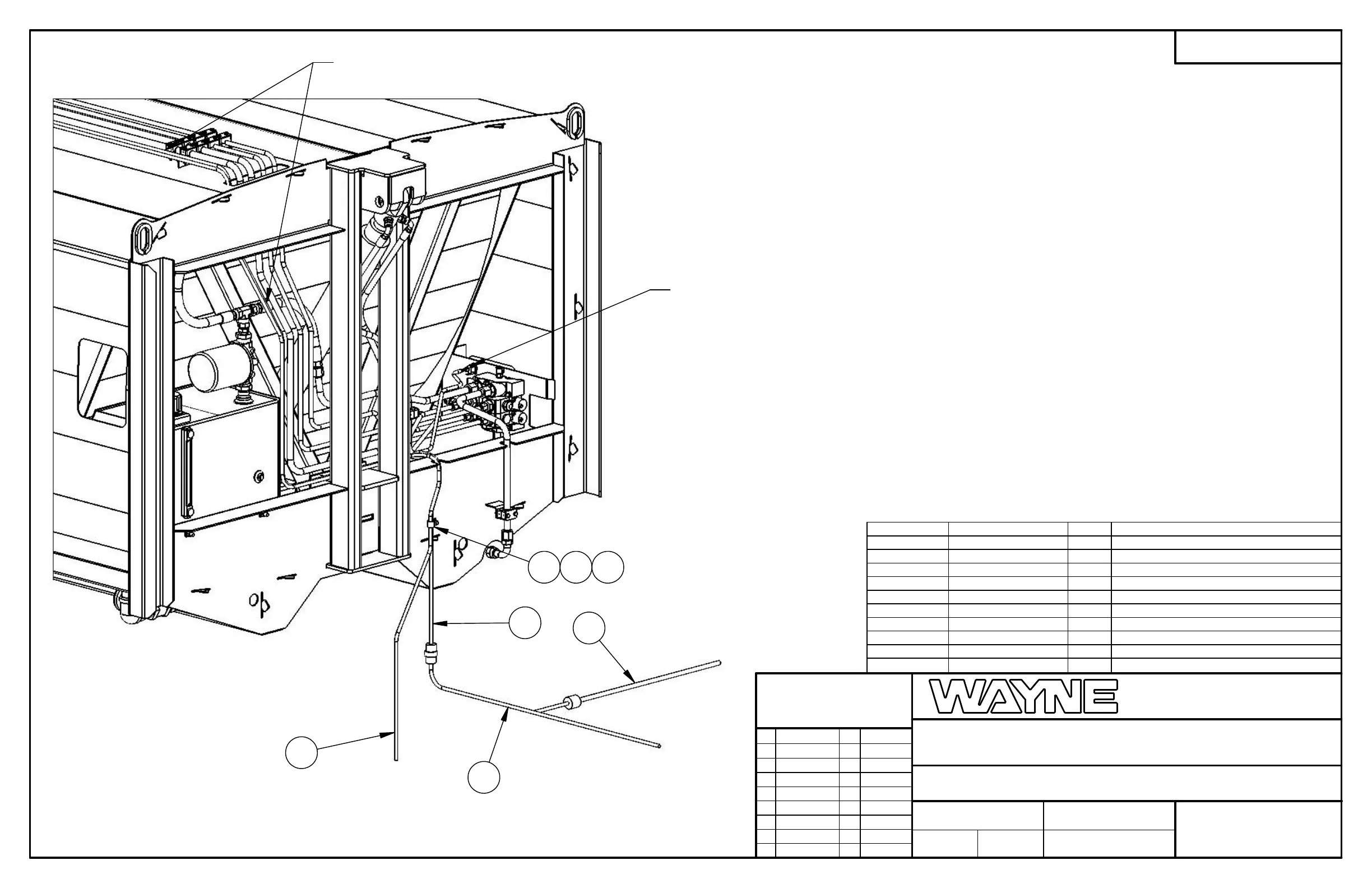

ELEC ASSY, BODY MAN CONTROL, PLS
03047
DAS
1:10
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
1
4
2
3
6 75
TIE STRAP HARNESS TO TUBES
CONNECT RED WIRE 012D &
BLUE WIRE 147B TO SWITCH
SHEET 1 OF 2
