BY
ECN NUMBER
SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
6
7
8
ECN RELEASE
00-36320-00-AB
ECN
ECN
ECN
ECN
ECN
ECN
ECN
ECN
00-36320-00-AB
7/18/2017
ELEC ASSY, BODY MAN CONTROL, PLS
03047
DAS
1:8
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
8
4

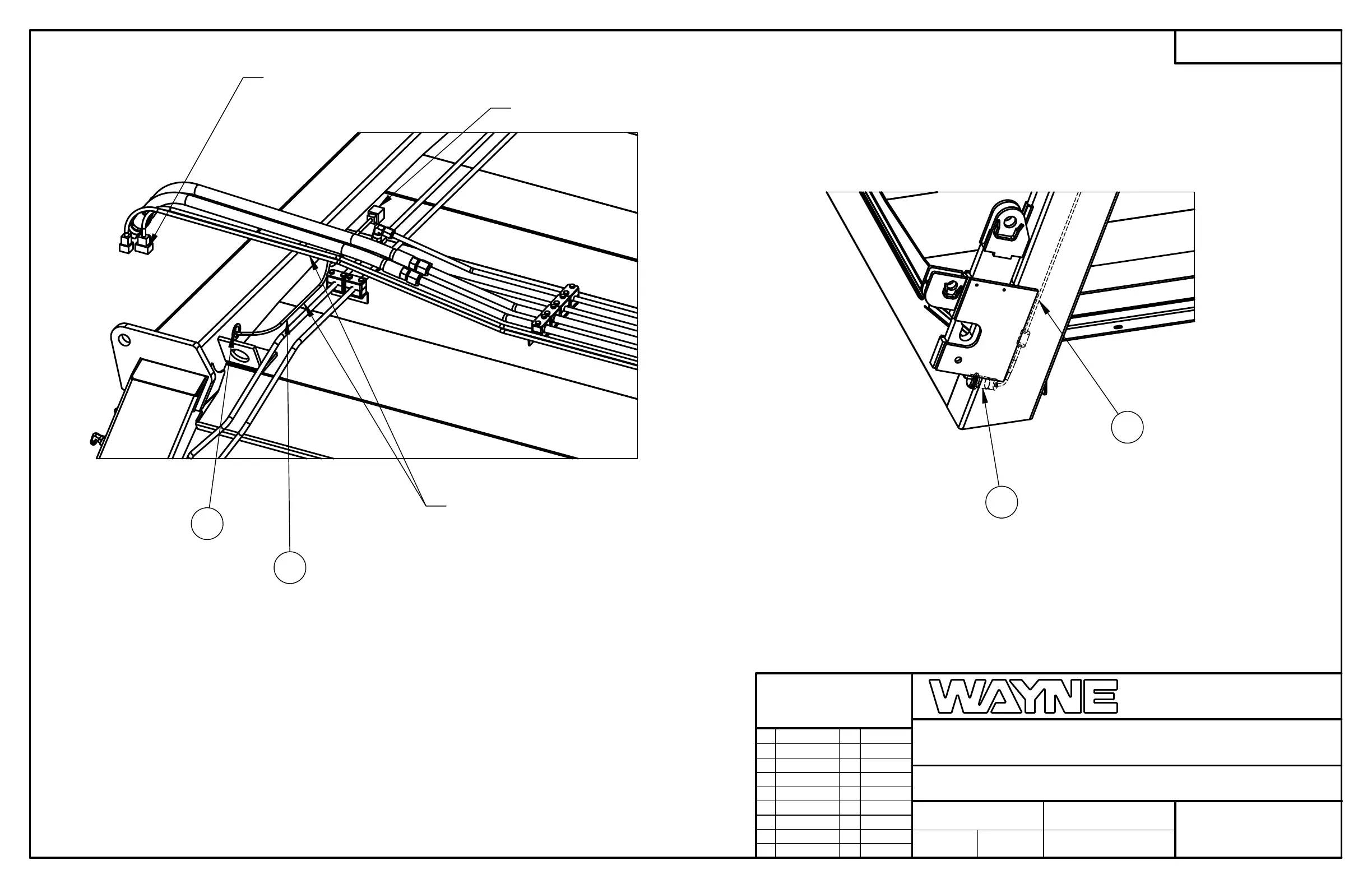

TIE STRAP HARNESS TO TAILGATE
TUBE AND TAILGATE RETURN HOSE
CONNECT TO TAILGATE HARNESSES
RUN HARNESS LEG WITH BLUE WIRE 082B
DOWN TO PROX AT BOTTOM OF FRAME
CABLE TIE RELAY TO TAILGATE TUBES
9
4
CONNECT HARNESS LEG WITH BLUE WIRE 082B TO PROX.
INSTALL PROX SO THAT THE INDICATOR LIGHT CAN BE
SEEN FROM THE OPENING AT THE BOTTOM OF THE BODY
FRAME. MAKE SURE TO HAVE .19 CLEARANCE BETWEEN
PROX AND TG LATCH WLD
SHEET 2 OF 2
SHEET 2 OF 2
