8
BY
ECN NUMBER
SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
7
6
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
ECN RELEASE
00-36310-00-AB
ECN 04058 DAS 04/14/09
ECN
ECN
ECN
ECN
ECN
ECN
ECN
00-36310-00-AB
11/09/05

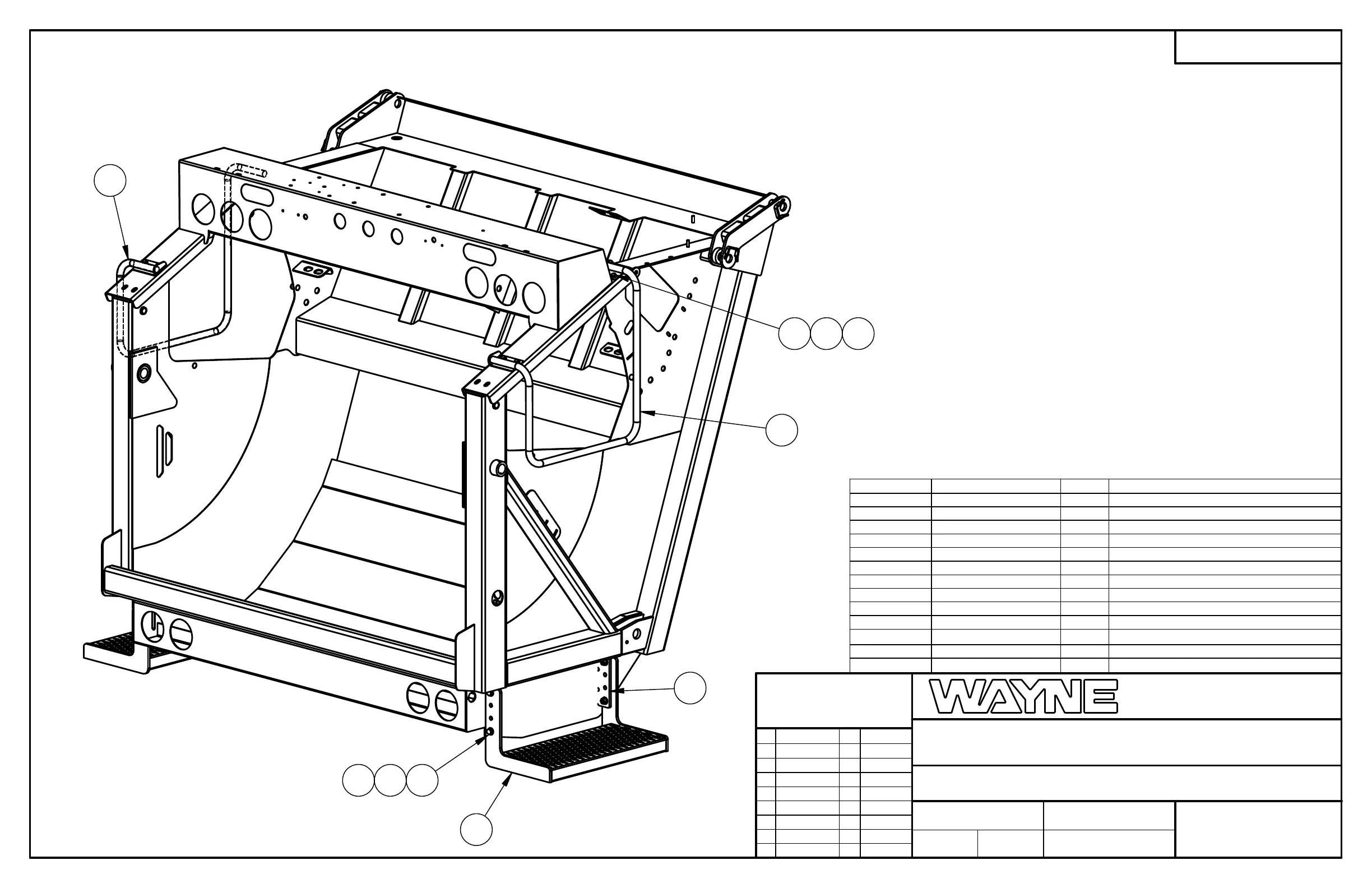

STEP ASSY,, PLS
03022
DAS
1:12
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
ITEM NO. PART NUMBER QTY. DESCRIPTION
13 00-26852-00-WA 1 DECAL, WARNING STEP CAB
12 00-26850-00-OA 1 DECAL, WARNING RIDING STEP,
11 00-36311-00-OA 2 GUSSET, STEP, PLS
10 00-36250-01-AB 1 HANDLE WLD, LH TAILGATE, PLS
9 445-006-002 8 NUT,LOCK
8 485-006-001 16 WASHER,SAE FLAT
7 415-006-016 8 CAPSCREW
6 00-36250-02-AB 1 HANDLE WLD, RH TAILGATE, PLS
5 00-35331-01-OA 4 PLATE, STEP MTG, QUS
4 445-008-002 8 NUT,LOCK
3 485-008-001 16 WASHER,SAE FLAT
2 415-808-024 8 CAPSCREW
1 00-35293-00-AB 2
SHEET 1 OF 2
9
1
3 24
5
6
87
10
INSTALL DECALS PER DECAL KIT DRAWING
