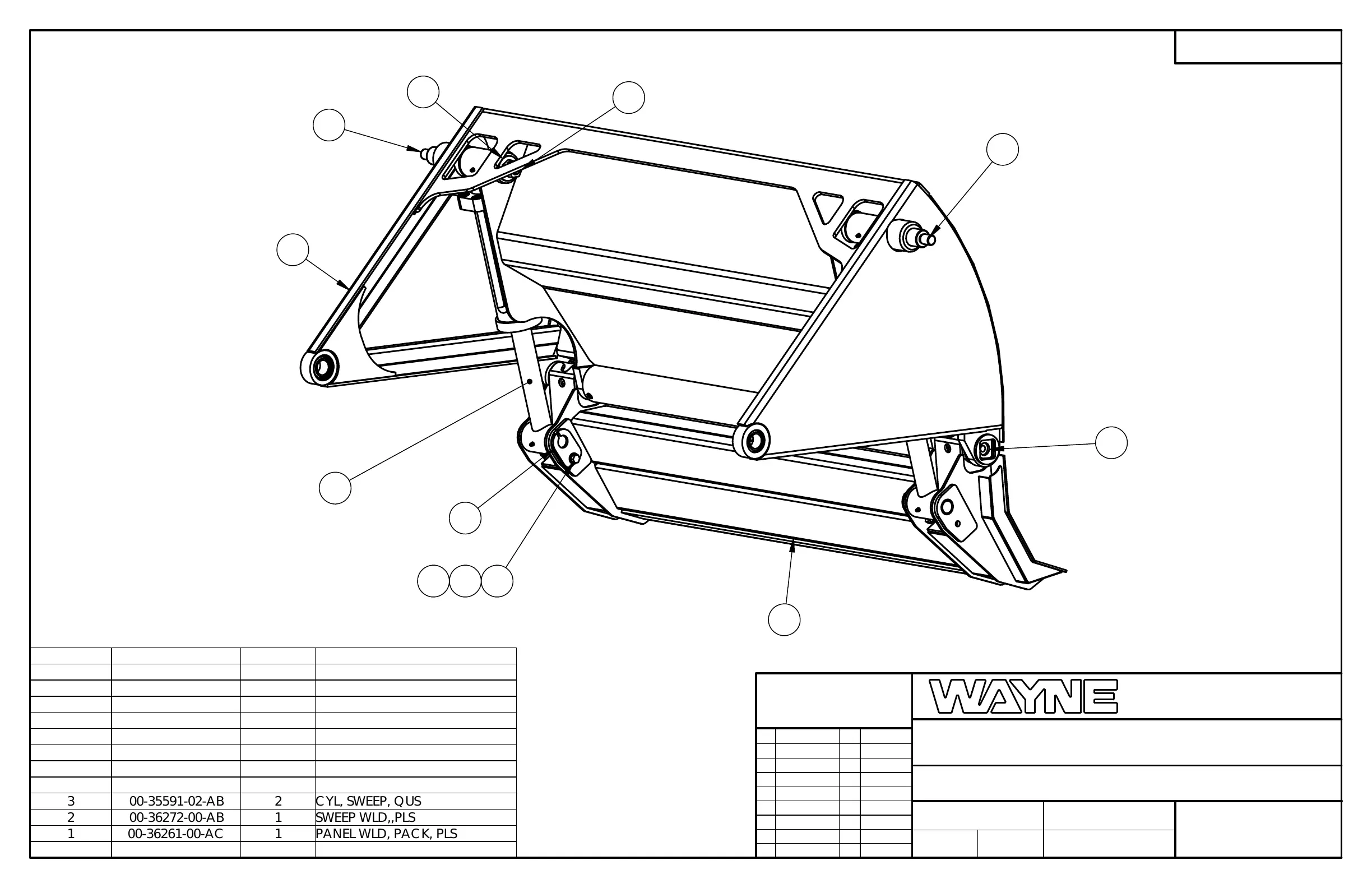

PANEL ASSY, PACK, PLS
03013
DAS
1:8
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
6
1
4
10
9
2
11
12
10
3
57
APPLY ANTI SEIZE TO PINS
ITEM NO. PART NUMBER SWEEP/QTY.DESCRIPTION
12 485-016-040 2 WASHER,STD FLAT
11 445-016-003 4 NUT,JAM,
10 00-36191-00-OB 2 SHAFT, CYLINDER, PLS
9 00-35746-00-AA 2 PIN WLD
8 1
7 445-008-002 2 NUT,LOCK
6 485-008-001 2 WASHER,SAE FLAT
5 415-008-024 2 CAPSCREW
4 00-35612-02-AA 2 PIN WLD,,
3 00-35591-02-AB 2 CYL, SWEEP, QUS
2 00-36272-00-AB 1 SWEEP WLD,,PLS
1 00-36261-00-AC 1 PANEL WLD, PACK, PLS
