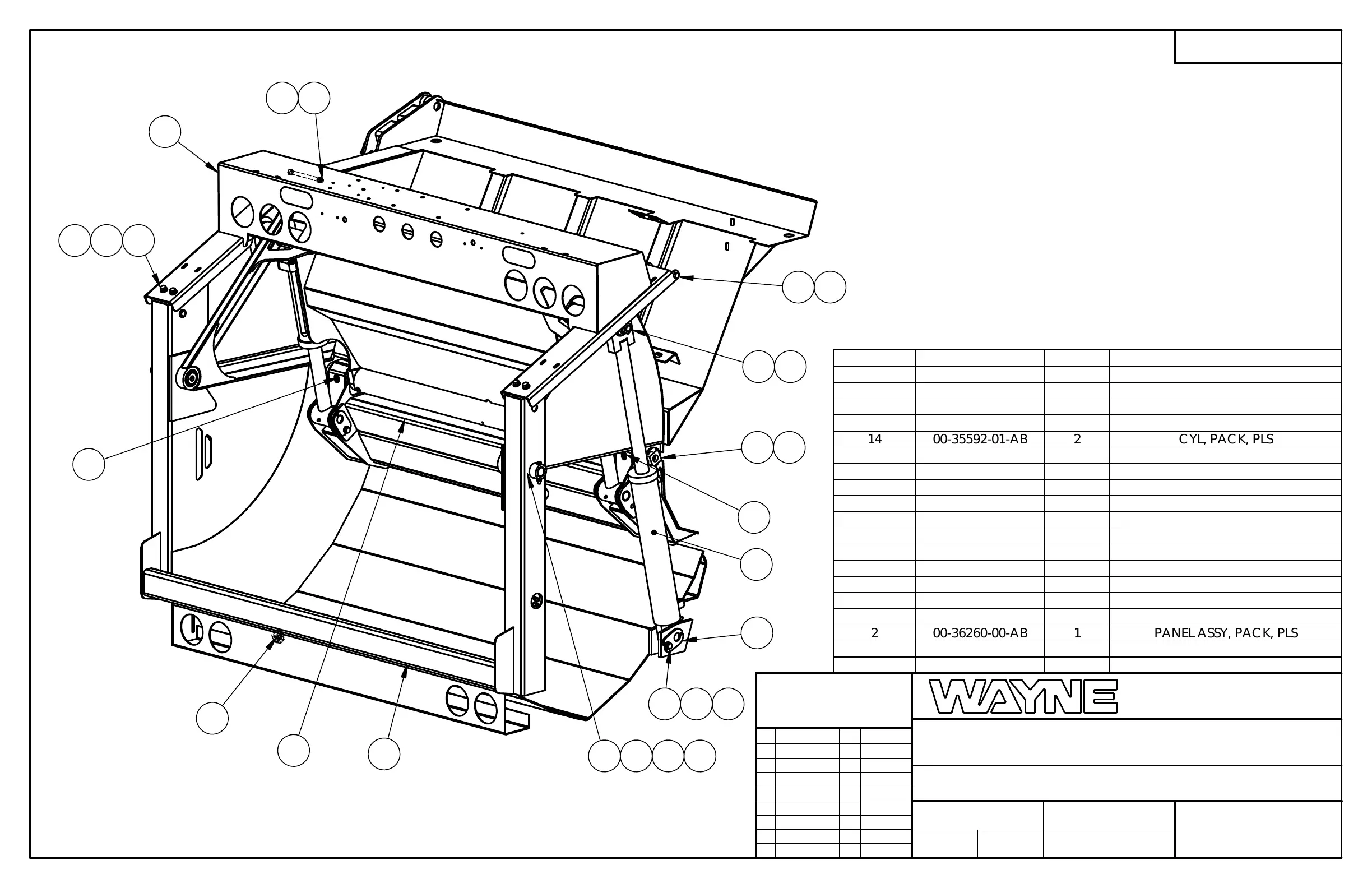

PARTS ASSY, TAILGATE, PLS
03013
DAS
1:12
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
ITEM NO. PART NUMBER QTY. DESCRIPTION
19 414-010-020 2 CAPSCREW,BUTTON SOCKET HEAD
18 445-006-002 2 NUT,LOCK
17 415-006-048 2 CAPSCREW
16 00-35609-01-OA 2 PIN, TAILGATE, QUS
15 00-35612-01-AA 2 PIN WLD,,
14 00-35592-01-AB 2 CYL, PACK, PLS
13 00-35371-01-OA 2 GUIDE BLOCK,,QUS
12 485-016-040 2 WASHER,STD FLAT
11 445-016-003 4 NUT,JAM,
10 445-008-002 2 NUT,LOCK
9 415-008-104 2 CAPSCREW
8 00-36174-00-AB 1 LIGHT BAR WLD,, PLS
7 485-008-001 6 WASHER,SAE FLAT
6 485-008-002 6 WASHER,LOCK
5 415-008-016 6 CAPSCREW
4 400-041-000 4 FITTING,GREASE,STRAIGHT
3 770-020-001 1 PLUG,SQUARE HEAD PIPE,
2 00-36260-00-AB 1 PANEL ASSY, PACK, PLS
1 00-36104-00-AD 1 TAILGATE WLD,, PLS
APPLY BLUE LOCKTITE TO ITEM 19
APPLY ANTI SEIZE TO PINS AND 1/2 X 6 1/2 BOLT
8
13
15
910
11 12
17 1816 4
657
6 57
1
2
3
4
RIGHT SIDE REMOVED TO SHOW INSIDE PARTS
4
14
910
19
