ITEM NO. PART NUMBER QTY. DESCRIPTION
28 440-017-000 2 WASHER,SAE FLAT
27 805-012-000 1 UNION,BULKHEAD
26 2
25 445-004-001 2 NUT,STD
24 485-008-004 2 WASHER,LOCK
23 485-004-001 2 WASHER,SAE FLAT
22 415-004-012 2 CAPSCREW, 1/4-20 X 3/4
21 00-38632-00-OA 1 CHANNEL, HANDLE STOP, PLS
20 00-38633-00-OA 1 RETAINER, HANDLE, PLS
19 445-008-002 2 NUT,LOCK
18 485-008-001 2 WASHER,SAE FLAT
17 415-008-020 2 CAPSCREW
16 00-35952-03-OA 2 BRKT, PUSH ROD, PLS
15 00-38251-06-AA 1 HANDLE WLD, CONTROL, PX
14 00-38251-05-AA 1 HANDLE WLD, CONTROL, QUS
13 445-008-004 2 NUT
12 485-008-002 2 WASHER,LOCK
11 638-008-076 2 BALL JOINT,1/2",
10 445-008-006 2 NUT,JAM
9 00-36200-01-AA 1 PUSH ROD WLD,, PLS
8 00-36200-02-AA 1 PUSH ROD WLD, PACK, PLS
7 400-048-001 2 PIN, COTTER, 1/16 X 1/2
6 400-045-010 2 PIN, CLEVIS 1/4 X 7/8,
5 445-005-001 4 NUT,
4 470-031-000 4 WASHER, LOCK
3 485-005-002 8 WASHER,STD FLAT
2 415-005-016 4 CAPSCREW
1 00-38762-01-AB 1 VALVE ASSY, TAILGATE, QUS
.12
.
9
4
8
BY
ECN NUMBER
SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
7
6
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
ECN RELEASE

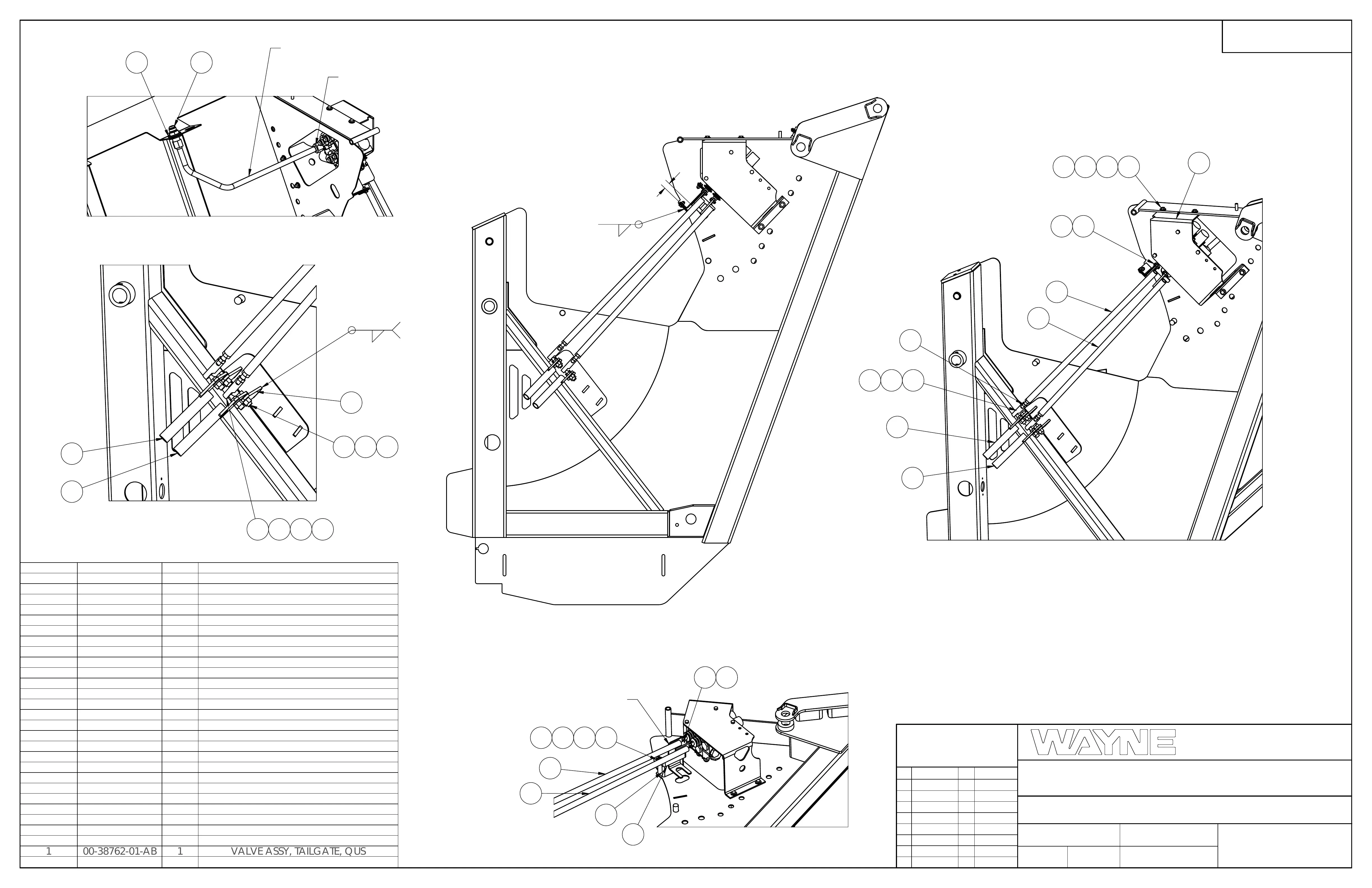

HYD CONTROL ASSY, MANUAL, PLS
00-36303-01-AD
ECN
ECN
ECN
ECN
ECN
ECN
ECN 04672 DAS 10/15/10
ECN 04083 DAS 06/18/09
1:6
10/17/05
03021
DAS
00-36303-01-AD
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
2345
1
67
8
9
14
111213
10
15
16
17 18
HANDLE MOUNT DETAIL
SCALE 1:4
19
11 12 13 10
14
15
.19
2
ATTACH HANDLE RETAINERS SO THAT PROX
FLAG IS PARALLEL WITH TAILGATE SIDE SHEET
AND THERE IS .06 TOTAL GAP AROUND FLAG
22
21
20
232425
8
9
6 7
2728
ATTACH TO VALVE INLET
CHECK UNIT ORDER, IF UNIT DOES NOT HAVE A
TAP-IN KIT, TUBE PART NUMBER IS 00-36208-00-AA
